Maintenance – Planned maintenance
10-03-2022 4812331840EN 100
Draining the hydraulic fluid tank
Condensate in the hydraulic tank is drained via the plug (2).
Drainage must be performed when the machine has been
stationary for an extended period, e.g. overnight.
Drain as follows:
- Remove the plug (2);
- Place an empty container under the Knob;
- Open the Knob (1);
- Remove the condensate;
- Close the drainage tap and refit the plug.
Deliver the drained oil for environmentally-compliant
disposal.
Be extremely cautious when draining the oil.
Wear protective gloves and goggles.
Fuel tank drainage
Water and sediment in the fuel tank are removed via the
drainage plug (1) in the bottom of the fuel tank.
Be careful during drainage. Do not drop the plug or else the fuel
will flow out.
Drainage must be performed when the machine has been
stationary for an extended period, e.g. overnight. The fuel level
should be the minimum possible.
The machine should preferably have been standing with this
side somewhat lower, so that water and sediment gathered
near the drainage plug (1).
Drain as follows:
- Place an empty container under the tap;
- Remove the plug (1);
- Drain out the condensate and sediment until only pure
fuel emerges at the plug.
- Refit the plug.
Save the condensate and sediment and hand it in to
an environment-compliant waste disposal station.

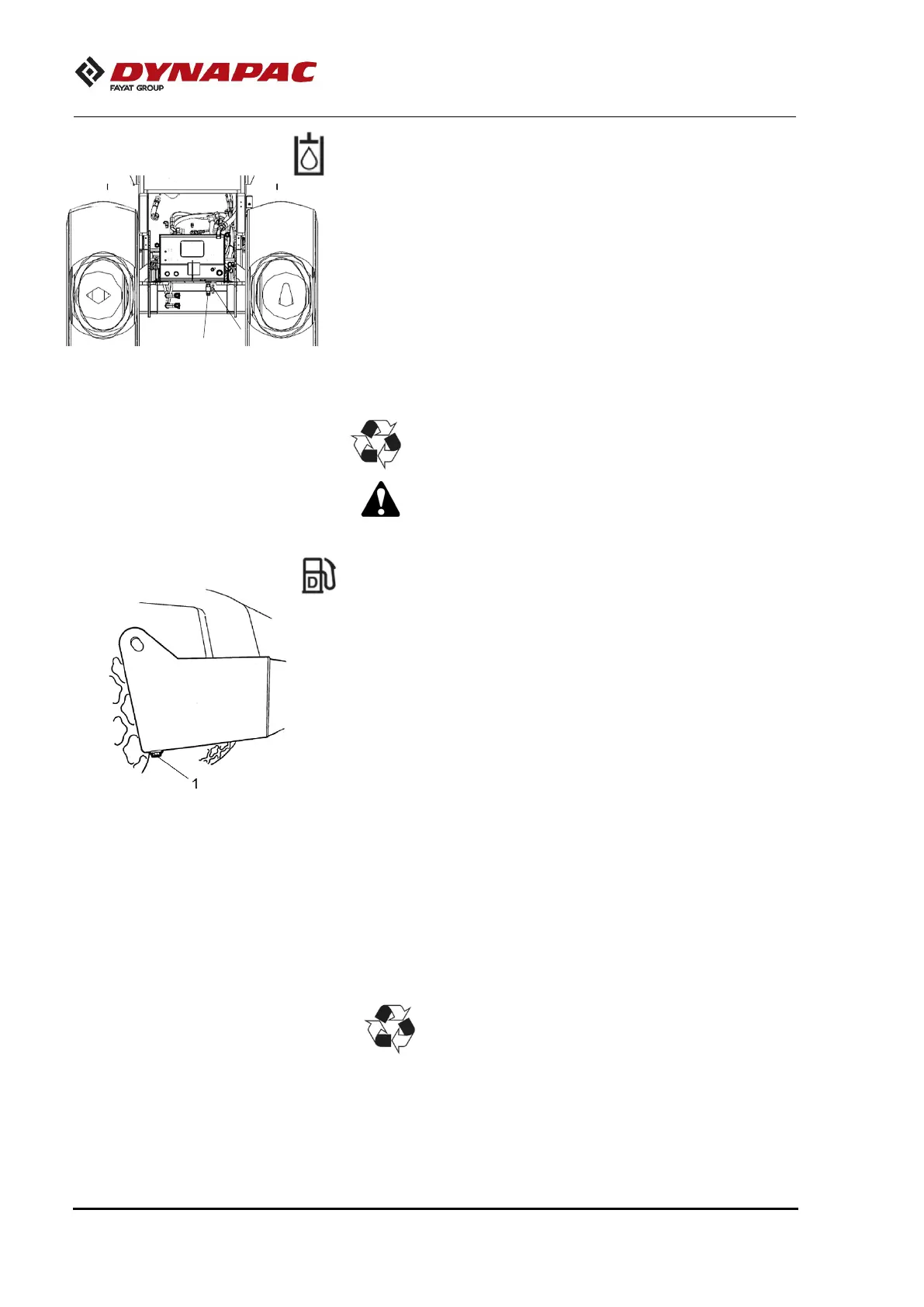

Fig. Hydraulic fluid tank, bottom:
1. Drainage knob
2. Plug.
1. Drain plug.
