Machine Description – Instruments/Controls
10-03-2022 4812331840EN 42

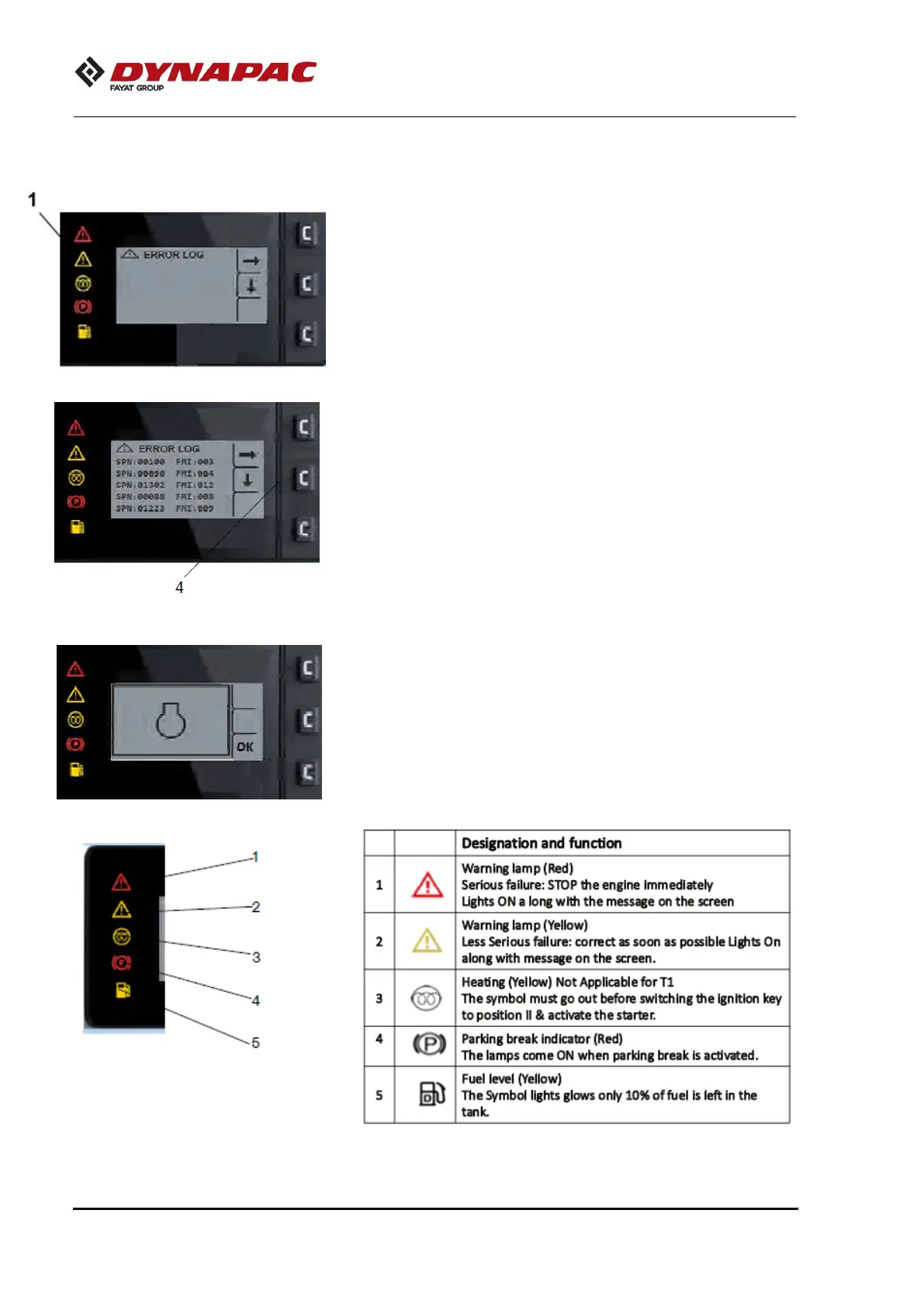

Sub menu – Error codes
1. The alarm symbols are shown on the left hand side of the
display. At the top is the red warning symbol and at the
bottom the yellow (1).
2. The side menu is displayed, when the sub-menu is selected.
3. Now go to the submenu of user configurations.
4. The middle button (4) on the side menu shows a downward
arrow. When this is selected, an error code list appears.
When the last error code is shown, scroll the list up to the
first error code again.
5. The active Home mode is shown when the travel direction
is changed.
6. If the sub-menu is inactive for more than 20 seconds, the
menu will switch back to the active home menu.
7. When "OK" is shown in the box to the bottom right, the
screen should be cleared.
8. When "OK" is selected, the active Home mode is shown.
9. A Red or Yellow control lamp gives a reminder until the error
is rectified.
Function description
Fig. Submenu – Error codes
