Dynapac CA25 - Hydraulic Reservior - Fluid Change; Drum - Oil Change

Maintenance – Planned maintenance
10-03-2022 4812331840EN 104
Maintenance - 2000h
Park the roller on a level surface.
When checking and making adjustments, the
engine should be switched off and the
emergency/parking brake should be applied,
if not otherwise specified.
Ensure that there is good ventilation (air
extraction) if the engine is run indoors. Risk
of carbon monoxide poisoning.
Hydraulic reservoir – Fluid change
Fill with new hydraulic fluid (1). Refer to the lubricant
specifications for grade information.
Activate the diesel engine and test hydraulic functions.
Check the level in the reservoir (2) and top off as
required.
Drum - Oil change
Place the machine on a level surface so that the filling
plug (1) is perpendicular.
Place a receptacle with a capacity of about 5 litres
underneath the drain plug (2).
Take great care when draining fluid and oil at high
temperatures. Wear protective gloves and goggles.
Collect the oil and dispose in an appropriate manner.
Clean and unscrew the filler plug (1) and the drain plug
(2).
Allow all the oil to drain out. Fill with new lubricating oil.
Refer to the lubricant specifications for grade
information.
2
1

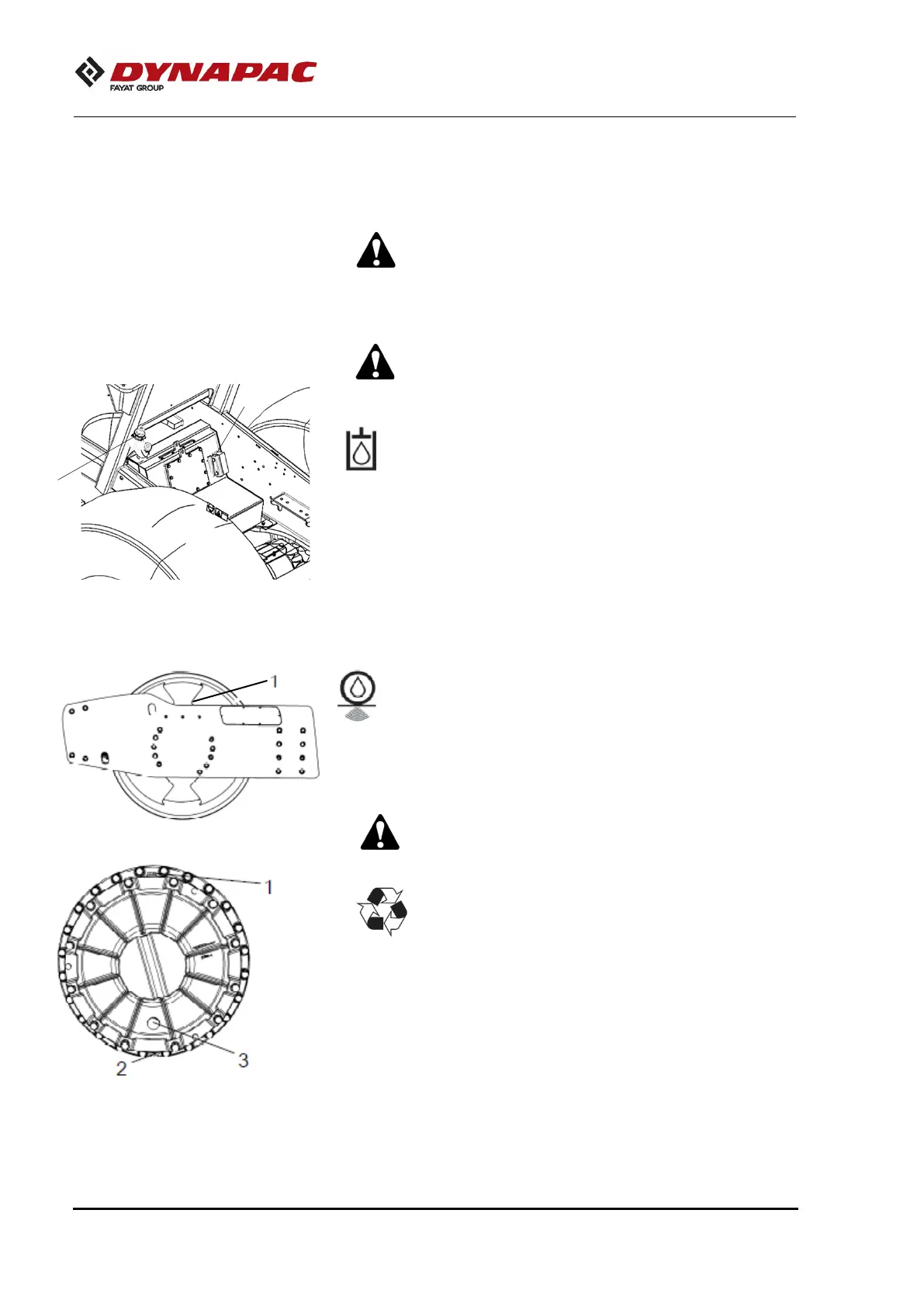

Fig. Hydraulic fluid tank
1. Refill cap;
2. Oil sight glass.
Fig. Drum, left side
1. Filling plug
Fig. Cylinder, left side
1. Refill plug
2. Drain plug
3. Level glass
