Maintenance – Planned maintenance
10-03-2022 4812331840EN 85

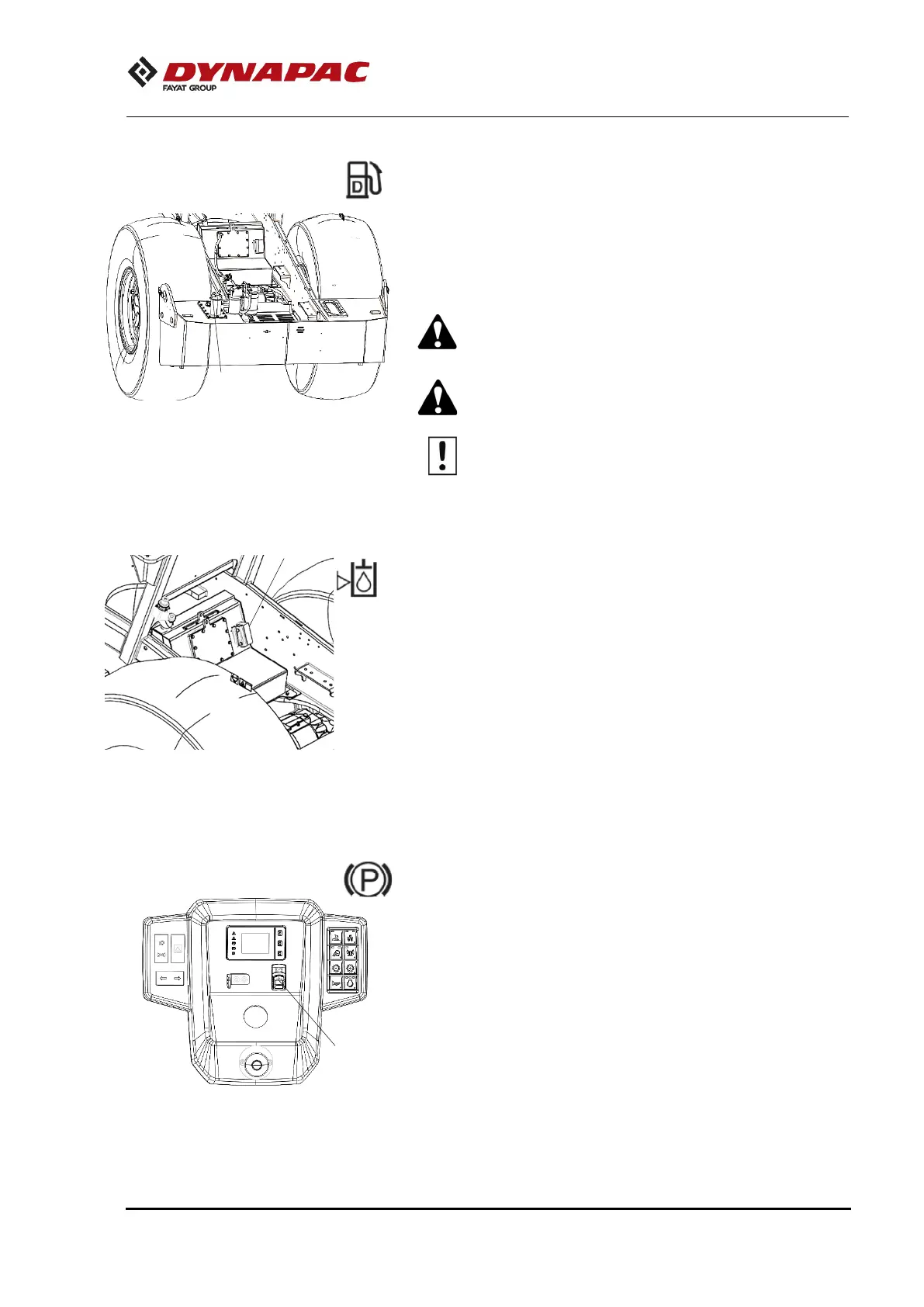

Fuel tank – Filling
Refuel daily with diesel fuel up to the lower edge of the filler
pipe (1). Follow the engine manufacturer’s specifications with
respect to fuel quality.
Stop the engine. Short-circuit the filler gun
against a non-insulated part of the machine
before refuelling, and against the filler pipe (1)
while refuelling.
Never refuel while the engine is running. Do not
smoke and avoid spilling fuel.
Check the tank capacity in the “Technical specifications
– Weights and volumes” section.
Hydraulic fluid reservoir – Check fluid level
The sight glass is located on the right-hand side and rear side
of cooler package below platform.
See the slight glass pen the Door located at left side beside the
platform.
Place the machine on a flat surface and check the fluid level in
the sight glass. If the level is too low, top up with the type of
hydraulic fluid specified in the lubricant specification.
Check functioning of the breaks
Parking Brake
Drive the machine slowly forward. Hold the steering wheel firmly
and brace yourself for a sudden stop.
Press the parking brake button (1). The machine should stop
abruptly with the engine running.
After testing the brakes, set the forward/reverse lever in neutral.
Reactivate the parking brake switch (1).
The machine is ready for operation.
1. Refuelling pipe
Fig. Hydraulic fluid tank sight glass
1. Level glass
1. Parking brake switch
