Maintenance – Planned maintenance
10-03-2022 4812331840EN 77
Maintenance – Planned maintenance
Service and inspection points
Carefully read this section of the manual before performing any
maintenance service or lubrication of the machine.
Get in the habit of examining the areas around and under the
equipment. It is a common and easy way to detect leaks in the
early stages and possible abnormalities.
1. Cooling grille 13. Scrapers 25. Feed pump, fuel
2.
Fuel filter,
fuel prefilter
14. Drum oil, level plug 26. Diesel engine, filling
3. Oil level, diesel engine 15. Shock absorbers and attachment screws 27. Battery
4. Air cleaner 16. Steering joint 28. Cooler
5.
Hydraulic fluid reservoir,
level display
17. Steering cylinders (x2) 29. Drive belts, cooling, alternator
6. Ventilation filter 18. Wheel nuts 30. Forward/reverse lever
7. Hydraulic filter 19. Tires, air pressure 31. Engine hood
8.
Drain, reservoir of
hydraulic fluid
20. Rear axle, differential 32. Coolant level of diesel engine
9. Hydraulic fluid, filling 21.
Rear axle, planetary gears
planetary gears (x2)
33. Control panel
10. Fuse box 22. Oil filter, diesel engine 34. Air conditioning filter
11. Drum oil, filling 23. Drainage, fuel tank
12. Drum gearbox 24. Diesel engine suspension (x4)

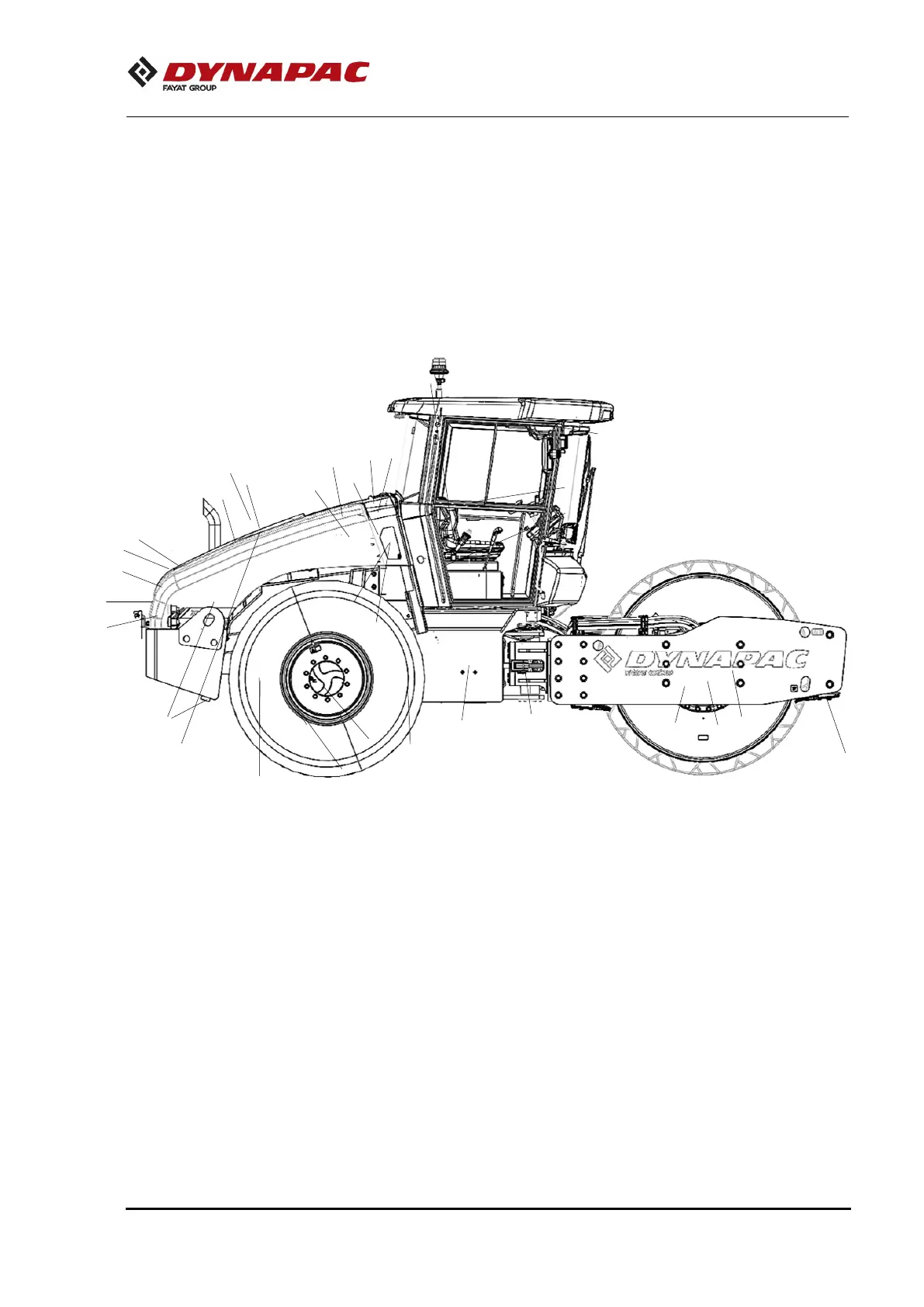

Fig. Service and inspection points
