Maintenance – Planned maintenance
10-03-2022 4812331840EN 92
Drum gearbox (D/PD) – Changing the oil
(Applicable to CA25D and CA30D)
(No need to change oil in CA35D)
Wipe clean, unscrew the plugs (1, 2 and 3) and drain the oil into
a suitable receptacle with a capacity of about 5.0 litres (5.3 qts).
Refit the drainage plug (1) and top up with oil up to the level
plug (3).
Ensure that the oil level reaches up to the lower edge of the
plug opening.
Replenish the oil to the right level if the level is low. Use
transmission oil (see lubricant specifications).
Clean and refit the plugs.
Steering hitch – Tightening
Nobody must be allowed near the steering joint
when the engine is running. Risk of Being
crushed when the steering is operated. Switch
off the engine and activate the parking brake
before lubricating.
The easiest way to identify if you have this type of steering hitch
is that it has a new type of nut (1) at the top as shown
Actual torque (Nm) should be when the machine position is
straight ahead.

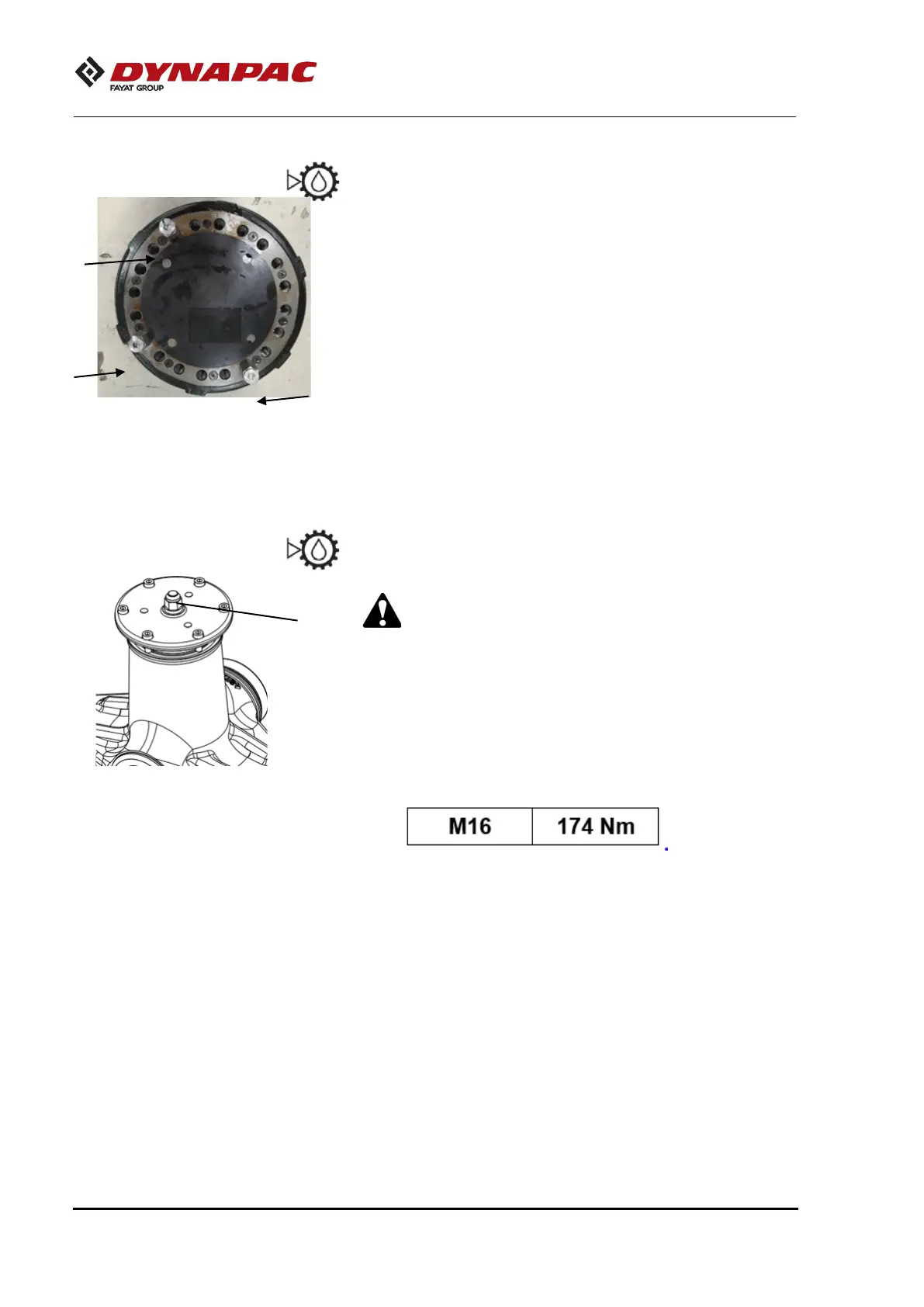

Fig. Check oil level – drum gearbox
1. Drain plug
2. Filler plug
3. Level plug
1. Nut
