10-03-2022 4812331840EN 71
Towing the Roller
When the roller is towed/recovered, the towing
vehicle will have to break it. If necessary, use a
towing bar, since the machine will have no
breaks.
The machine has to be towed slowly at a max.
speed of 3 km/h (2 mph), and only for short
distances, of max. 300 m (330 yards).

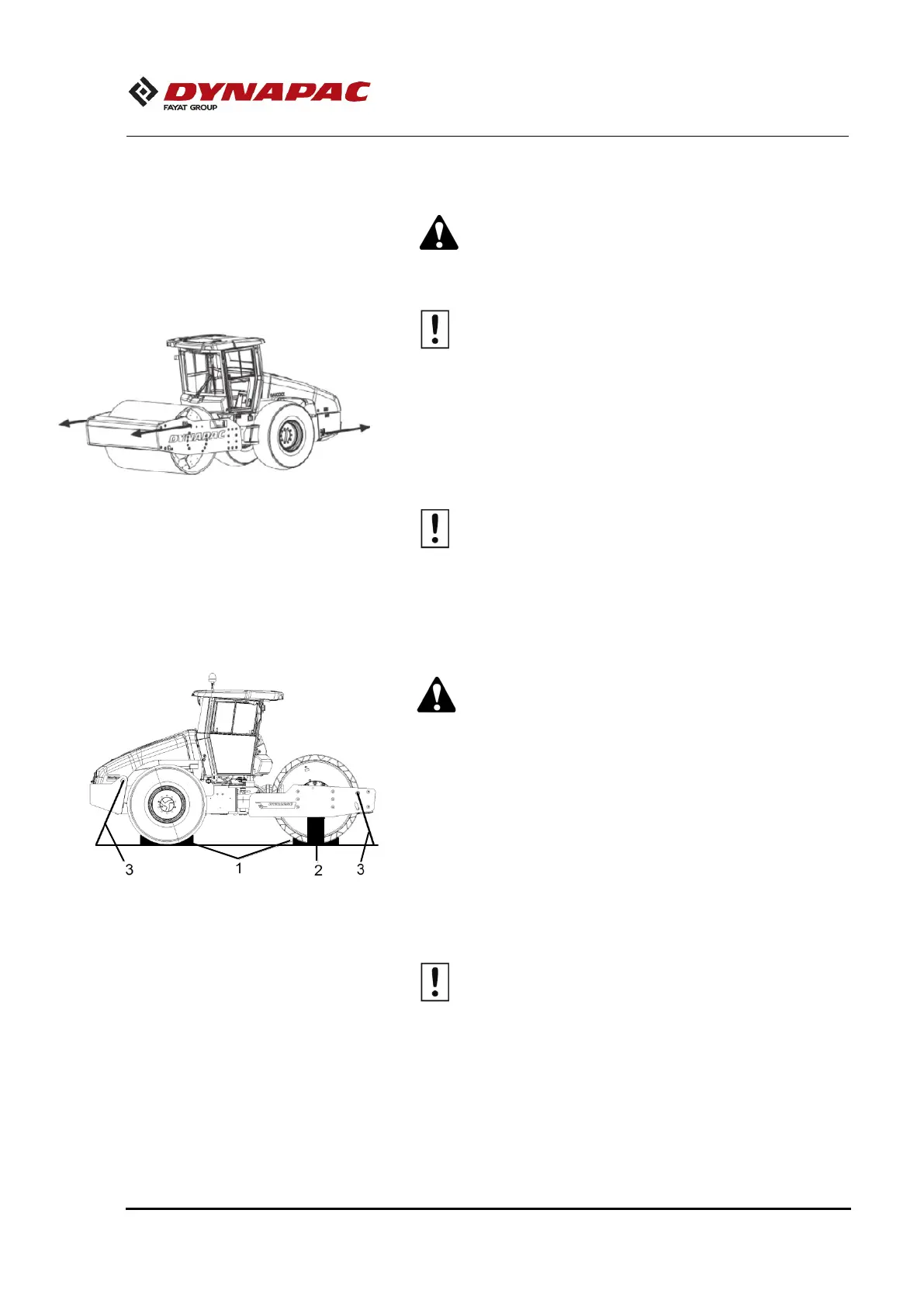

When towing/retrieving a machine, the towing device
must be connected to both lifting holes. The pulling force
shall act longitudinally on the machine as shown in the
figure. Maximum gross pulling force 185 kN (41590 lbf).
Restore the items for towing according to
alternative 1 on the preceding pages.
Preparation of the Roller for transport
Lock the steering articulation before lifting and
transporting. Follow the instructions in the
corresponding sections.
Apply the chocks to the drums (1) and then attach them to
the transport vehicle.
Place support under the drum frame (2) to avoid
overloading on the roller suspension when it is stuck in the
tensioning belts.
Secure down the machine with tensioning belts (3) at all
four corners. The decals indicate the points of attachment.
Remember to deactivate the steering articulation
before starting the roller.
42. Chocks
43. Support
44. Tensioning belt
