Unlocking the articulation
Remember to unlock the articulation before the
start of operation.
Fold the locking arm (31) back and secure it in the locking
articulation (33) with the locking pin (30). Install the safety
pin with the cable (31) to attach the locking pin (32). The
locking articulation (33) is located on the frame of the
machine.
Towing
The machine can be moved up to 300 metres in
accordance with the following instructions.
Alternative 1
Short distance towing with the engine running.
Press the emergency/parking brake button and
temporarily stop the engine. As a safety
measure to prevent the drum from rolling, chock
the rollers.
Turn both safety nut (38) one turn anti clockwise, then to
loosen (rotate anti clockwise) the setting screw (37)
completely. The Setting screw are place on the up &
downside of drive pump.
Alternative 2
Towing short distances when the engine
is in-operative
First release both towing valves as per alternative 1.
Press the knob (39) fully and pump the lever (40) forward/
reverse up to 20 to 25 time, up to get resistance in lever.
Start the engine in low idle. The machine can now tow and
can also be steered if the steering system is working.
37. Setting screw
38. Safety nut
39. Knob
40. Lever
41. Brake release valve

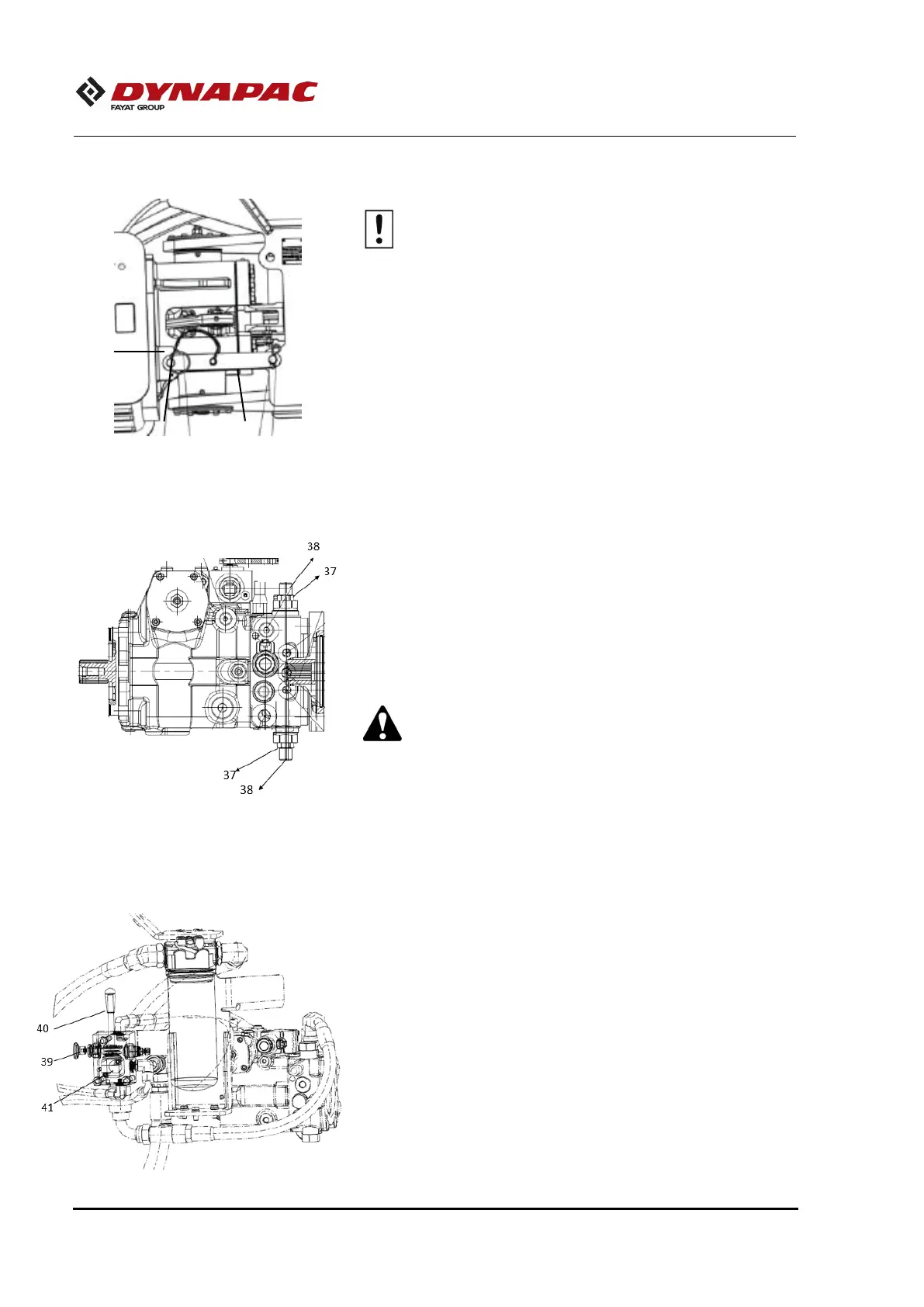

Fig. Articulation in open position
30. Locking arm
31. Safety lock
32. Locking pin
33. Locking the articulation
