Machine Description – Instruments/Controls
10-03-2022 4812331840EN 43

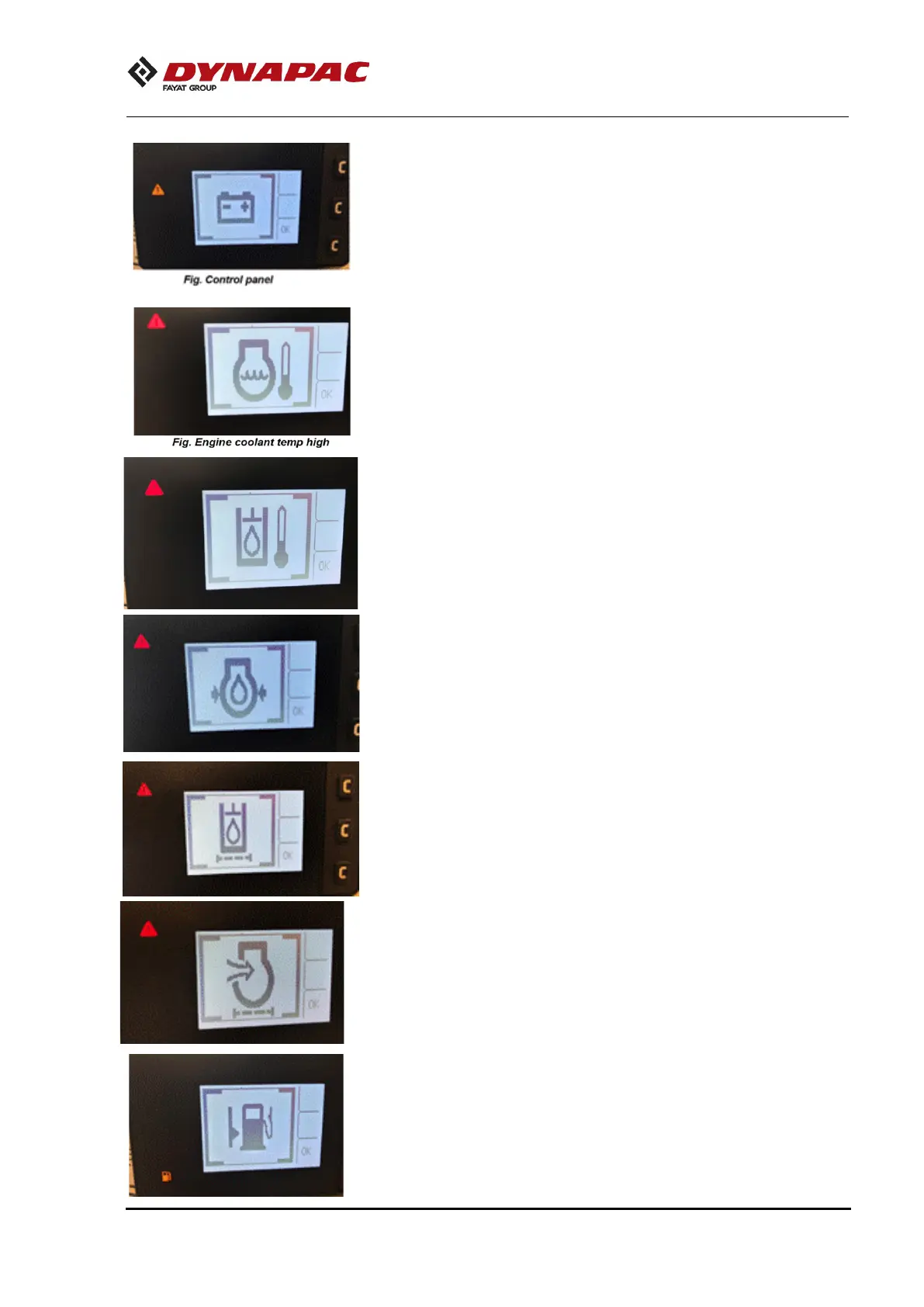

Functional Description – Tell- Tales & Alarms
Battery Charging
When battery voltage is low i.e. <13.5V, the charging symbol
Appears with orange triangle alert as per beside snap.
Engine Coolant Temp. High
When the Engine Temp high: immediately symbol will come
with red color alert as per beside slide
Hydraulic Oil Temp high
When Hydraulic oil temp high; immediately symbol will come
with RED color alert
Low Engine Oil Pressure level
When engine oil press. Level is low; immediately symbol will
come with RED colour alert
Hydraulic Oil Filter
When Hydraulic Oil filter clogged; immediately symbol will
come with RED colour alert.
Air Filter
When Air filter clogged; immediately symbol will come with RED
colour alert.
Low Fuel
When fuel is low-symbol should come with Orange telltale
