Eaton 9155 N - Figure 6-10: Wiring Diagram of Type Approved 9155 S-Model (1-Phase in; 1-Phase Out). for Cable and Fuse Sizes, See the Table

28 8-10 kVA, 50/60 Hz (1-phase input) &
8-15 kVA, 50/60 Hz (3-phase input)
P-164000341
User's Guide Revision 1

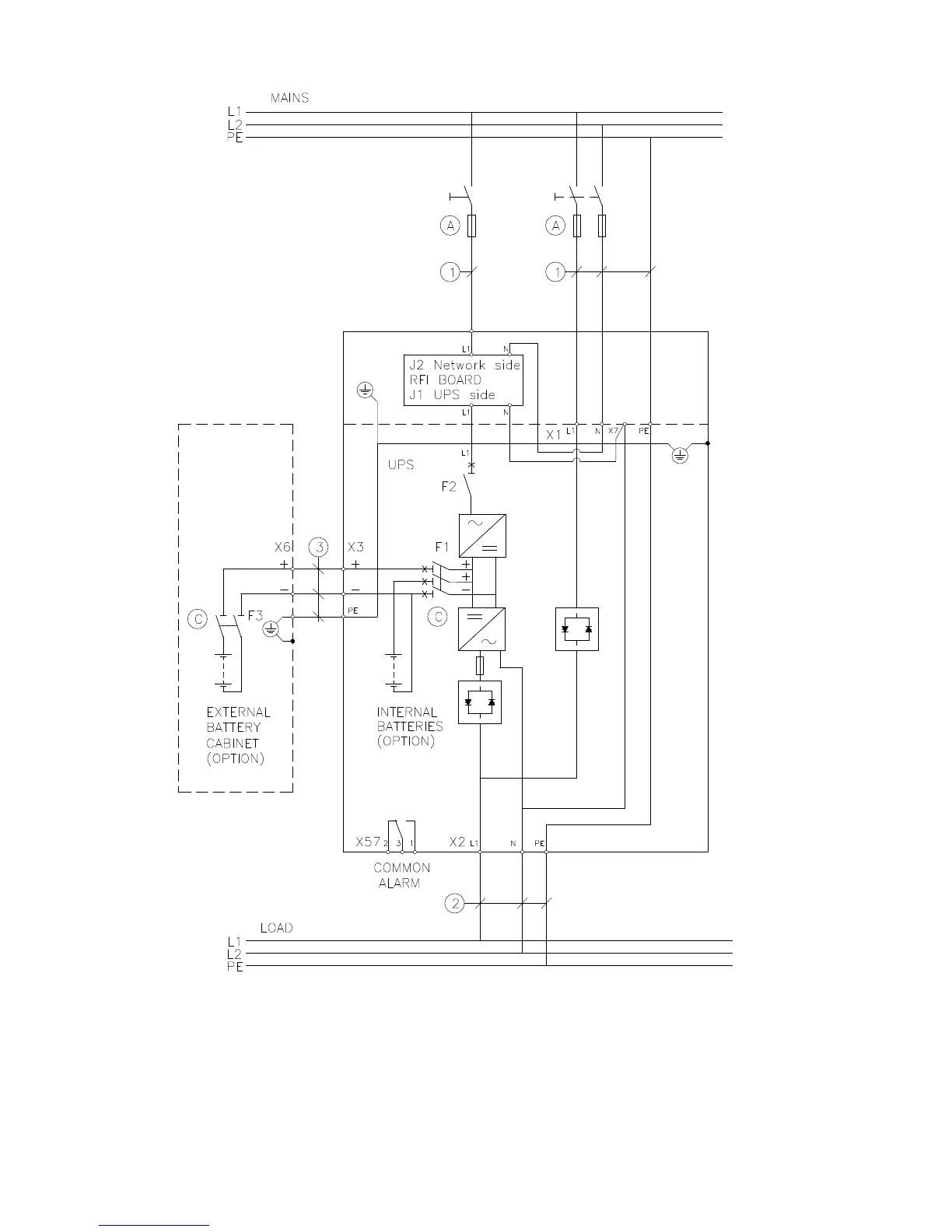

Figure 6-10: Wiring diagram of type approved 9155 S-model (1-phase in / 1-phase out). For
cable and fuse sizes, see the Table 6-3.
