Eaton 9155 N - Figure 10-3: Cable Routing of the Tie Cabinet: 1-Phase Model on the Left and 3-Phase Model on the Right; Figure 10-4: 1-Phase Tie Cabinets Wiring Diagram with Three UPS Units

68 8-10 kVA, 50/60 Hz (1-phase input) &
8-15 kVA, 50/60 Hz (3-phase input)
P-164000341
User's Guide Revision 1

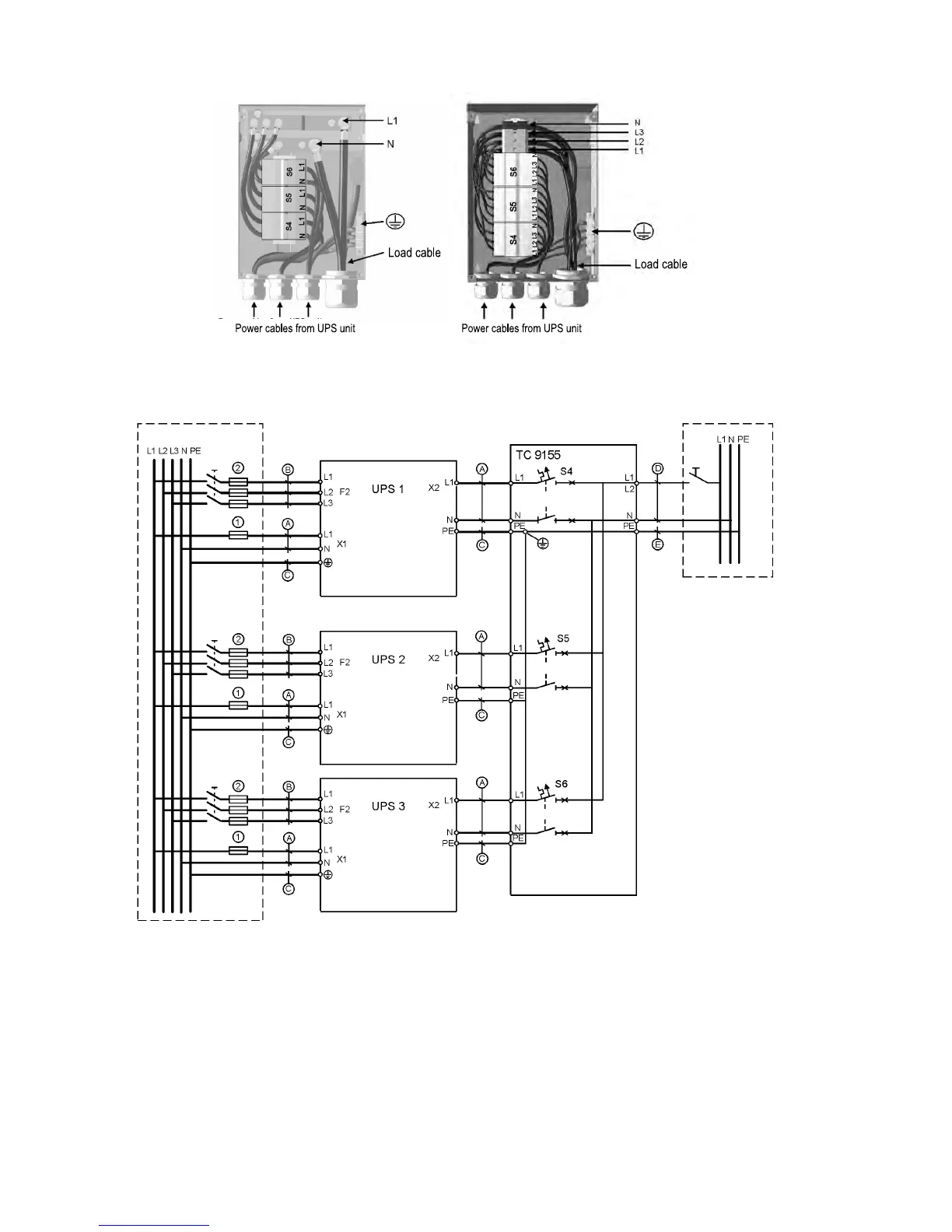

Figure 10-3: Cable routing of the Tie Cabinet: 1-phase model on the left and 3-phase model on
the right
Figure 10-4: 1-phase Tie Cabinet’s wiring diagram with three UPS units
