P-164000341 8-10 kVA, 50/60 Hz (1-phase input) &
8-15 kVA, 50/60 Hz (3-phase input)
39
Revision 1 User's Guide

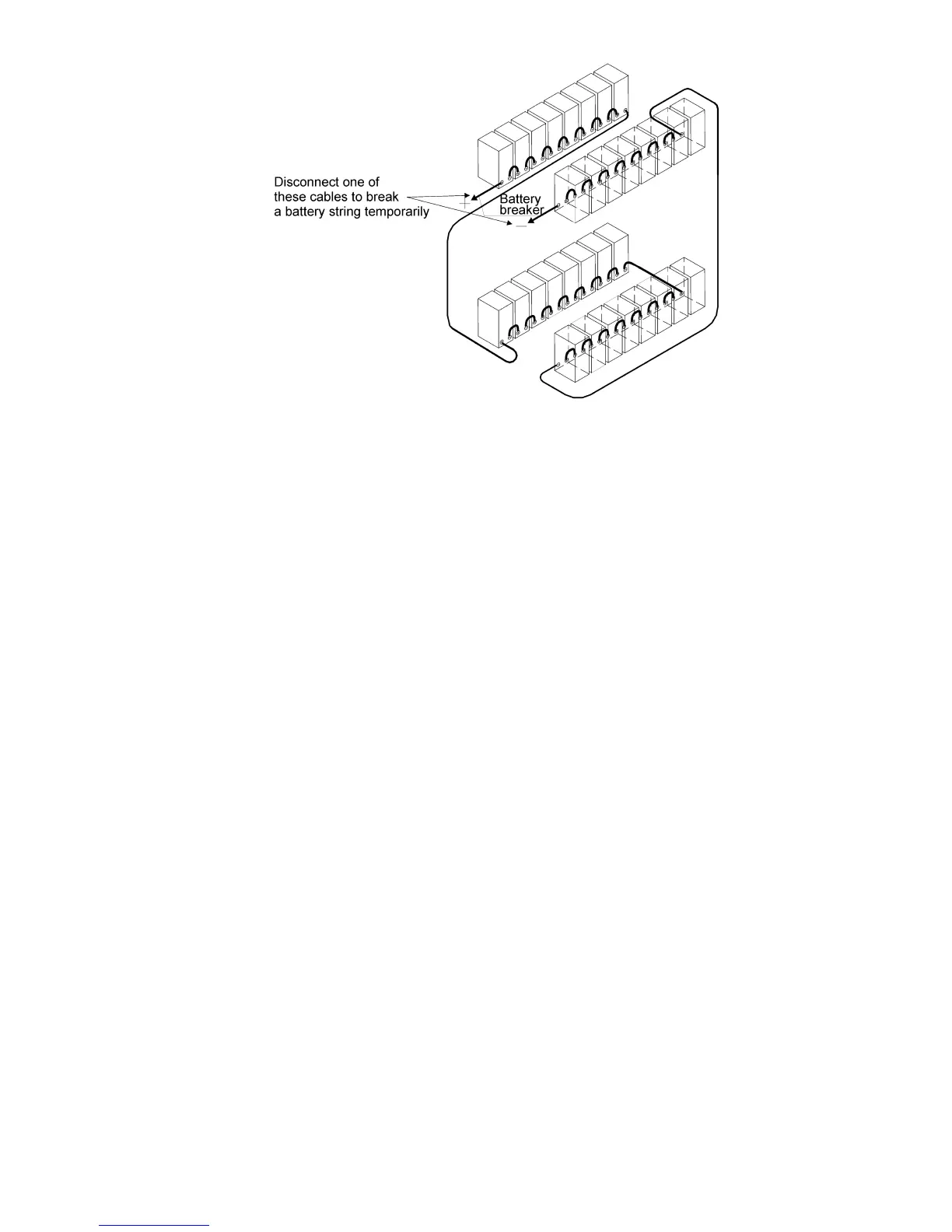

Figure 6-19: To minimise safety risk remove + or - cable from battery string before connecting
UPS and EBCs
