Eaton 9155 N - Figure 6-11: Wiring Diagram of 9155 ST-Model with Internal MBS (1-Phase in; 1-Phase Out). for Cable and Fuse Sizes, See the

P-164000341 8-10 kVA, 50/60 Hz (1-phase input) &
8-15 kVA, 50/60 Hz (3-phase input)
29
Revision 1 User's Guide

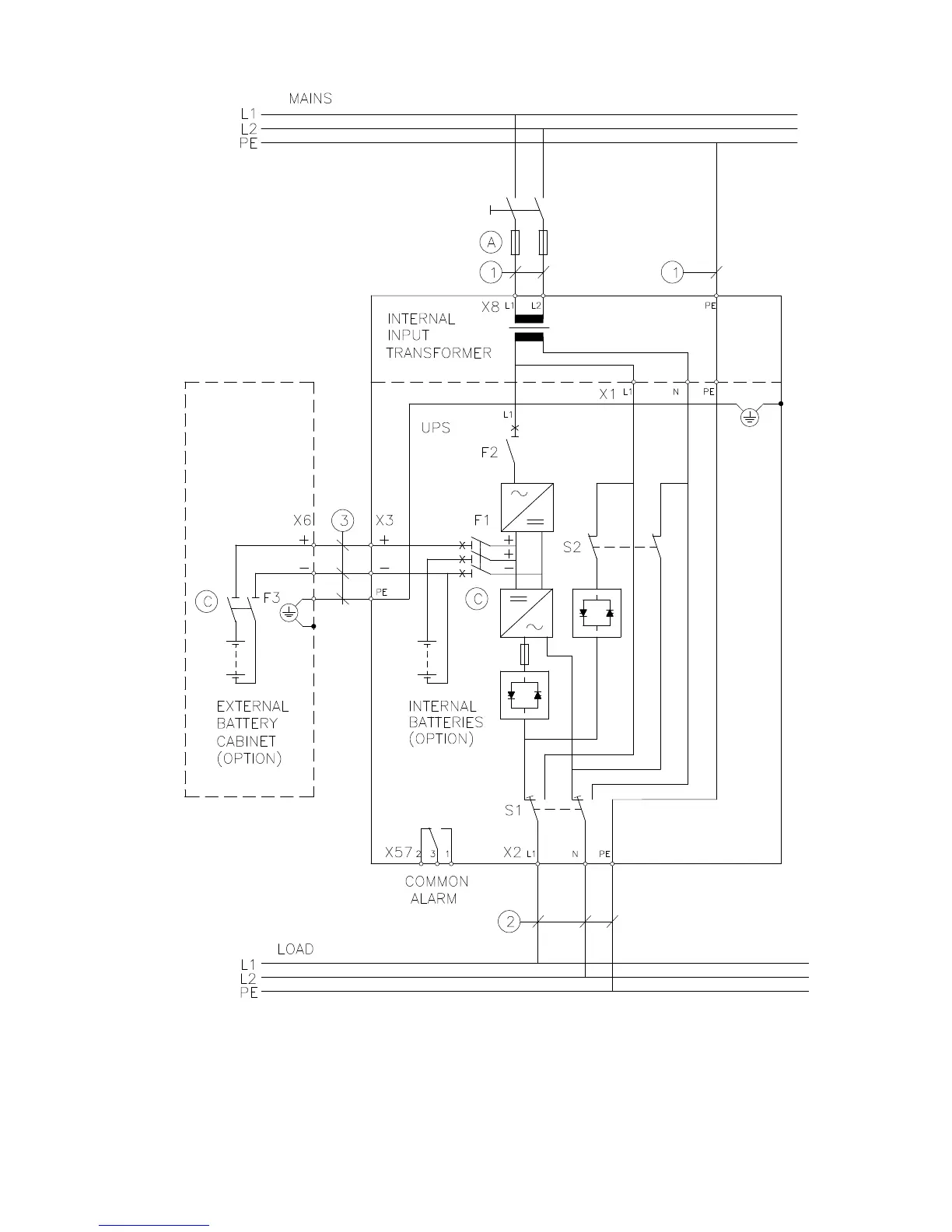

Figure 6-11: Wiring diagram of 9155 ST-model with internal MBS (1-phase in / 1-phase out). For
cable and fuse sizes, see the Table 6-3.
