Eaton 9155 N - Figure 7-9: Modus;Jbus Module; Modus;Jbus Module (Optional)

48 8-10 kVA, 50/60 Hz (1-phase input) &
8-15 kVA, 50/60 Hz (3-phase input)
P-164000341
User's Guide Revision 1
7.4.4 Modus/Jbus Module (optional)
The Modbus module provides monitoring and integration to the Building Management Software
(BMS) such as Wonderware. It features continuous and reliable communication through isolated DB9
ports (RS485/RS232) or a terminal strip (RS485).

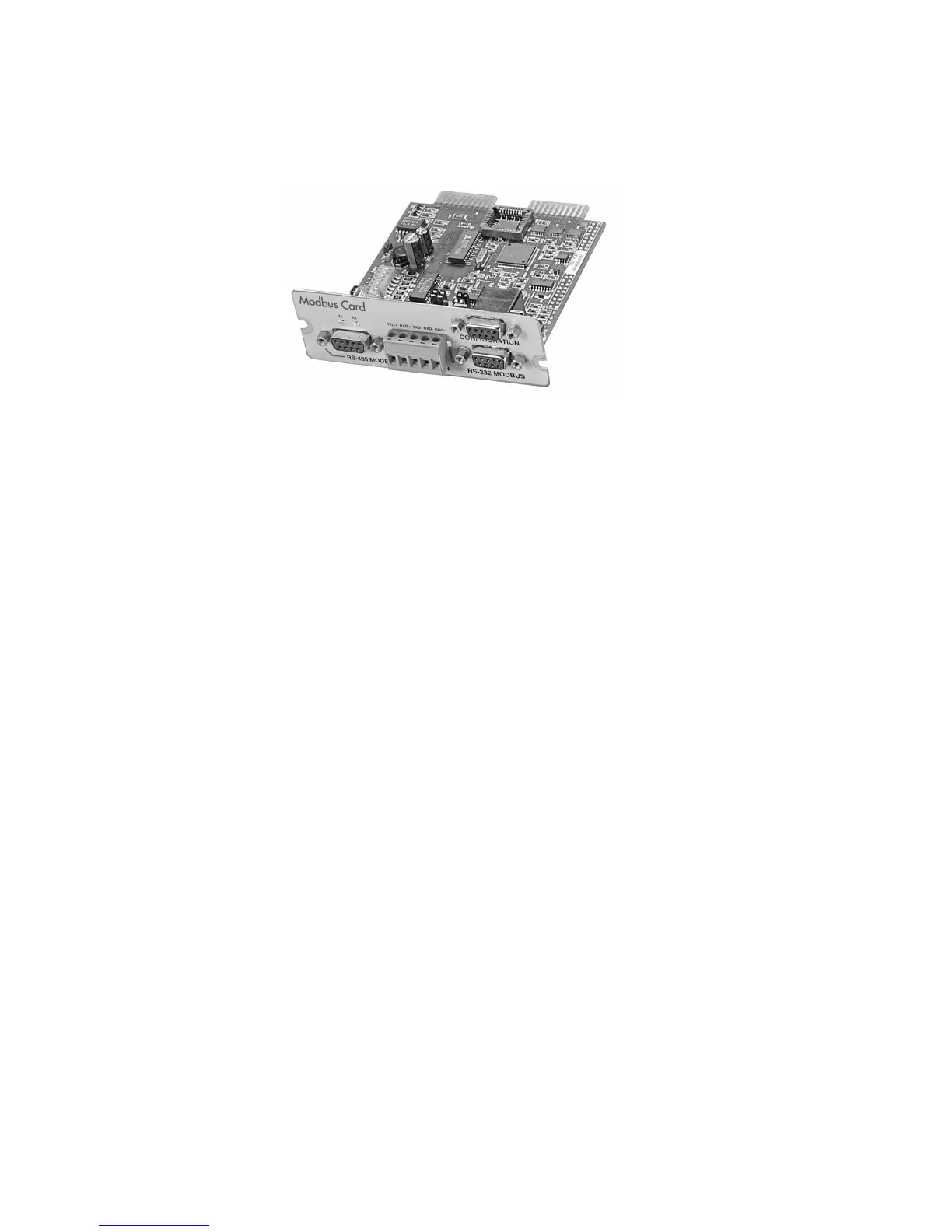

Figure 7-9: Modus/Jbus Module
