Eaton 9155 N - Figure 10-7: 3-Phase Tie Cabinets Wiring Diagram with Two UPS Units and Bypass Connected

P-164000341 8-10 kVA, 50/60 Hz (1-phase input) &
8-15 kVA, 50/60 Hz (3-phase input)
71
Revision 1 User's Guide

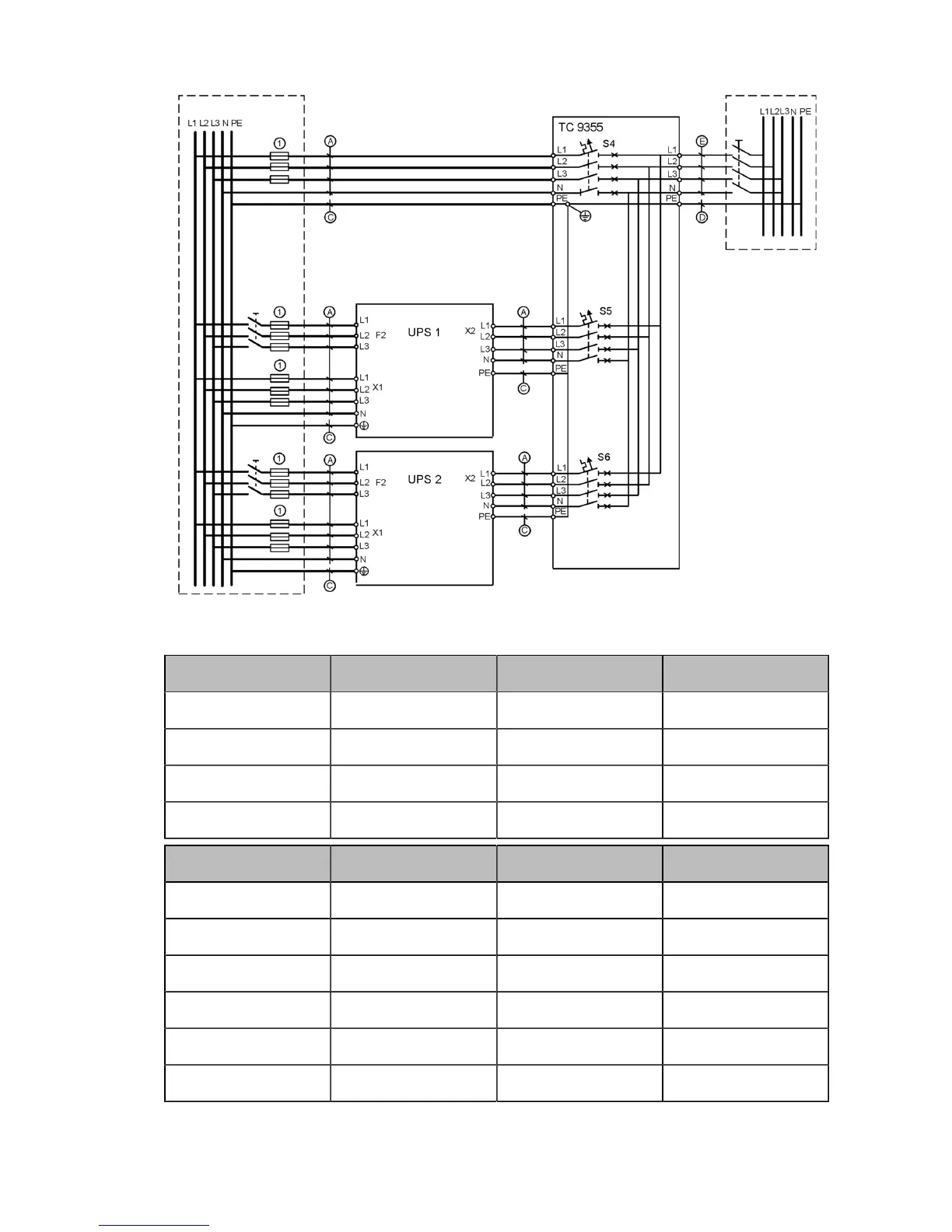

Figure 10-7: 3-phase Tie Cabinet’s wiring diagram with two UPS units and bypass connected
UPS Module Cable A Cable C Fuse 1
8 kVA 2,5 mm² 4 mm² 16 A
10 kVA 4 mm² 4 mm² 20 A
12 kVA 6 mm² 6 mm² 25 A
15 kVA 6 mm² 6 mm² 32 A
TC Module Cable B Cable D Cable E
8 kVA 2,5 mm² 4 mm² 2,5 mm²
10 kVA 4 mm² 4 mm² 4 mm²
12 kVA 6 mm² 6 mm² 6 mm²
15 kVA 6 mm² 6 mm² 6 mm²
16 kVA 6 mm² 6 mm² (6 mm²)*
20 kVA 10 mm² 16 mm² (10 mm²)*
