Eaton 9155 N - Figure 10-6: 3-Phase Tie Cabinets Wiring Diagram with Three UPS Units; Table 10-1: Minimum Cable and Fuse Rating for the Different Parallel System with Installation Procedure C * (System Bypass Not Allowed)

70 8-10 kVA, 50/60 Hz (1-phase input) &
8-15 kVA, 50/60 Hz (3-phase input)
P-164000341
User's Guide Revision 1
TC Module Cable D Cable E Cable F
20 kVA 35 mm² 16 mm² (35 mm²)*
24 kVA 70 mm² 35 mm² (70 mm²)*
30 kVA 70 mm² 35 mm² (70 mm²)*
36 kVA 95 mm² 50 mm² -
45 kVA 120 mm² 70 mm² -
Table 10-1: Minimum cable and fuse rating for the different parallel system with installation
procedure C * (system bypass not allowed)

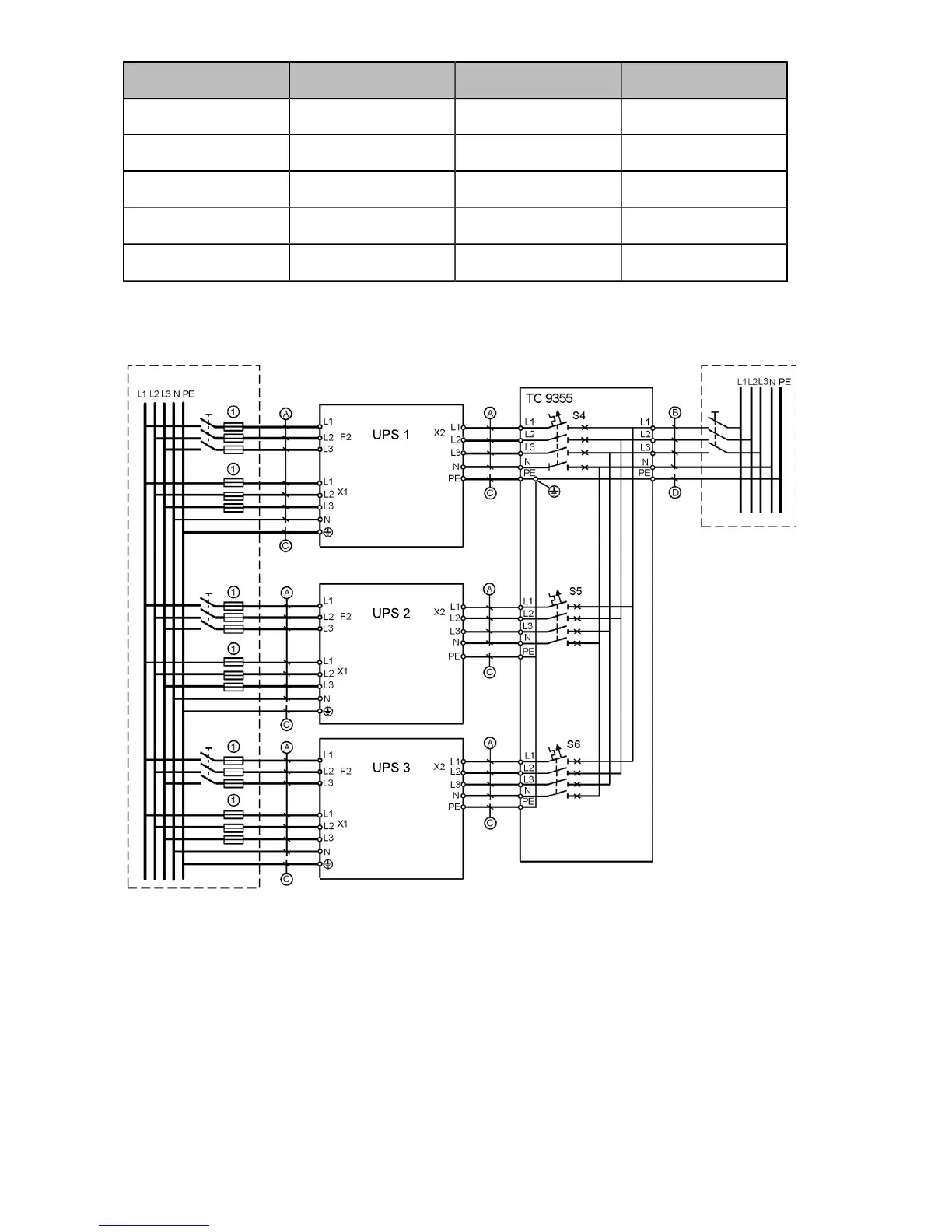

Figure 10-6: 3-phase Tie Cabinet’s wiring diagram with three UPS units
