Eaton DS7 User Manual

7 Connection examples
7.3 Size 3 and 4 (41 – 200 A)
142 DS7 Soft starter 09/16 MN03901001Z-EN www.eaton.com

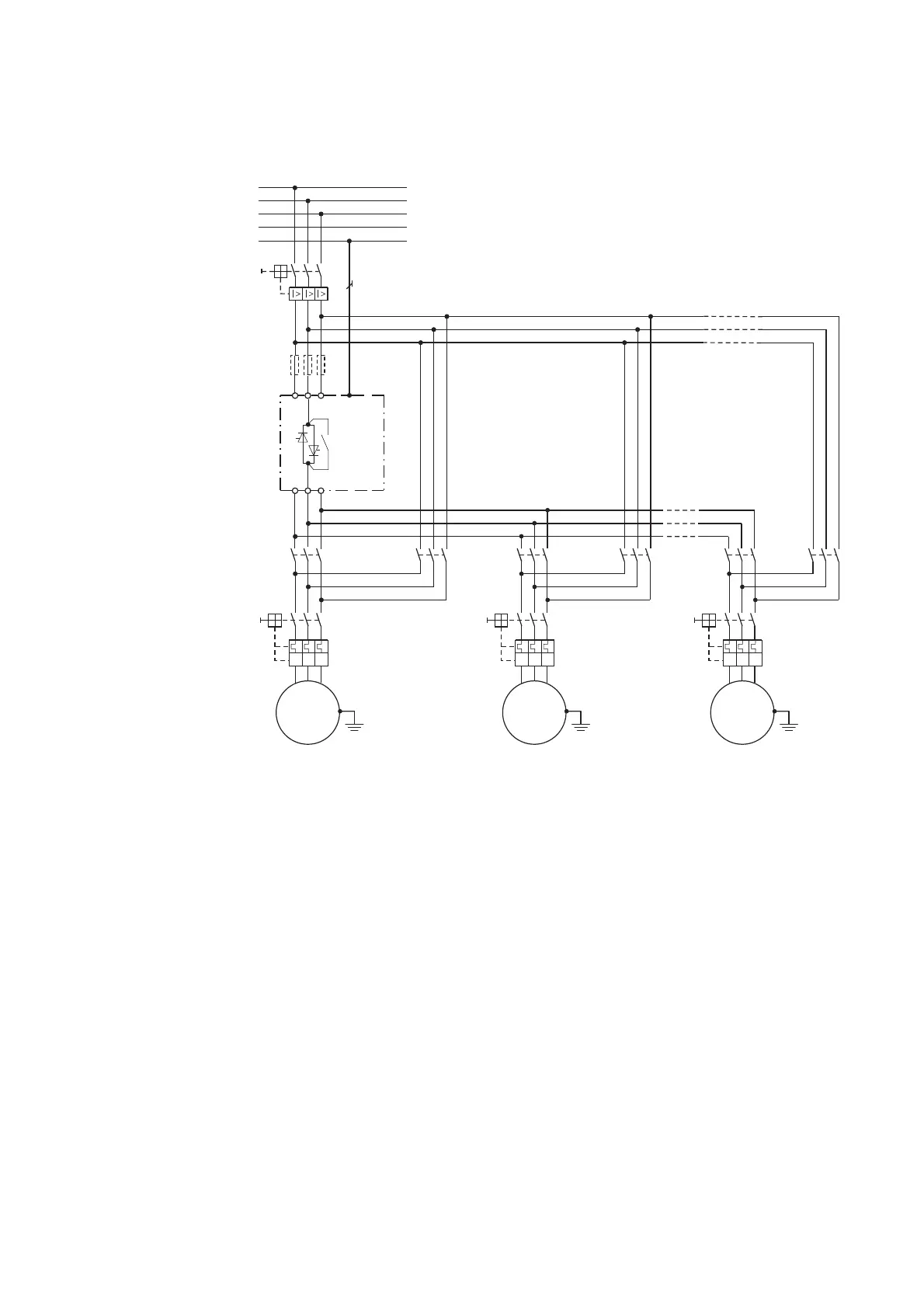

Figure 111: Power section, motor cascade
F3 = Superfast semiconductor fuse for type 2 coordination, in addition to Q1 (optional)
Q1 = cable protection through circuit-breaker or fuse (F1)
Q2 = Soft starter DS7
Qn1 = Contactor (1, 2, n)
Qn2 = Supply bypass contactor for motor (1, 2, n)
Qn3 = Motor protection (motor-protective circuit-breaker
or current transformer-operated overload relay)
Mn = Motor (1, 2, n)
￫
The control system shown here can also be used for the DS7
soft starters in size 2 (16 to 32 A).
￫
The “thermal motor protection” (Q13, Q23, Qn3) can also be
ensured with current transformer-operated overload relays
(see ￫ section 2.11.7, “Parallel motor connection”, page 46).
Q2
L1
L2
L3
1L1 2L2 3L3
2T1 4T2 6T3
N
PE
PE
Q1
Q11
F3
Q13
M1 M2 Mn
Q12 Q21
Q23
Q22 Qn1
Qn3
Qn2
I> I> I> I> I> I>
I> I> I>
M
3 ~
M
3 ~
M
3 ~

Eaton DS7 Specifications

General

Product type	-
Certification	IEC/EN 60947-4-2, UL 508, CSA22.2-14
Product color	Gray
Protection class	I
International Protection (IP) code	IP20
Input voltage	200 - 480 V
DC input voltage	24 V
AC input frequency (fridge)	50/60 Hz
Sustainability compliance	Yes
Sustainability certificates	CE
Operating temperature (T-T)	-40 - 40 °C

Weight and Dimensions

Weight	1800 g
