Instruction Manual IM01500001E
Effective July 2011
Pow-R-Line switchboards
EATON CORPORATION www.eaton.com
Pre-installation: receiving,
handling, and storage
Receiving
Upon delivery, use the packing list to confirm the number of items
against what was received to ensure that the shipment is complete.
Any discrepancies should be noted on the freight bill before signing.
Report any shortages or damage to the freight carrier immediately.
Immediately upon receipt of the switchboard, the plastic covering
should be carefully removed and a thorough inspection of each
section should be made to detect any damage incurred during
shipment. Any damage should be noted on the bill of lading (freight
bill) and the consignee receiving the equipment should notify
the freight carrier. FAILURE TO NOTIFY THE FREIGHT CARRIER
OF DAMAGE IN A TIMELY MANNER MAY RESULT IN THE
CONSIGNEE ASSUMING THE COSTS ASSOCIATED WITH
REPAIR OR REPLACEMENT OF DAMAGED EQUIPMENT.
After inspection, it is recommended that a plastic covering be used
to protect the equipment from dust, dirt, moisture and damage until
ready for installation.
The switchboard should remain attached to its shipping skid until it
has been moved into its final installation position.
Handling
 WARNING
SWITCHBOARD IS TOP-HEAVY. USE CARE IN HANDLING.
Switchboards are top-heavy. Switchboard sections may weigh over
2000 pounds. Before moving or lifting, verify that the equipment
used to handle the switchboard is within safe limits of its lifting
capacity.
Switchboard shipping lengths will vary. Each shipping section is
bolted with lag bolts to heavy wooden skids that extend beyond all
sides of the switchboard.
Use of lifting means
Lifting means are bolted to each switchboard shipping length.
Lifting a switchboard by crane is the recommended method for
moving this equipment.

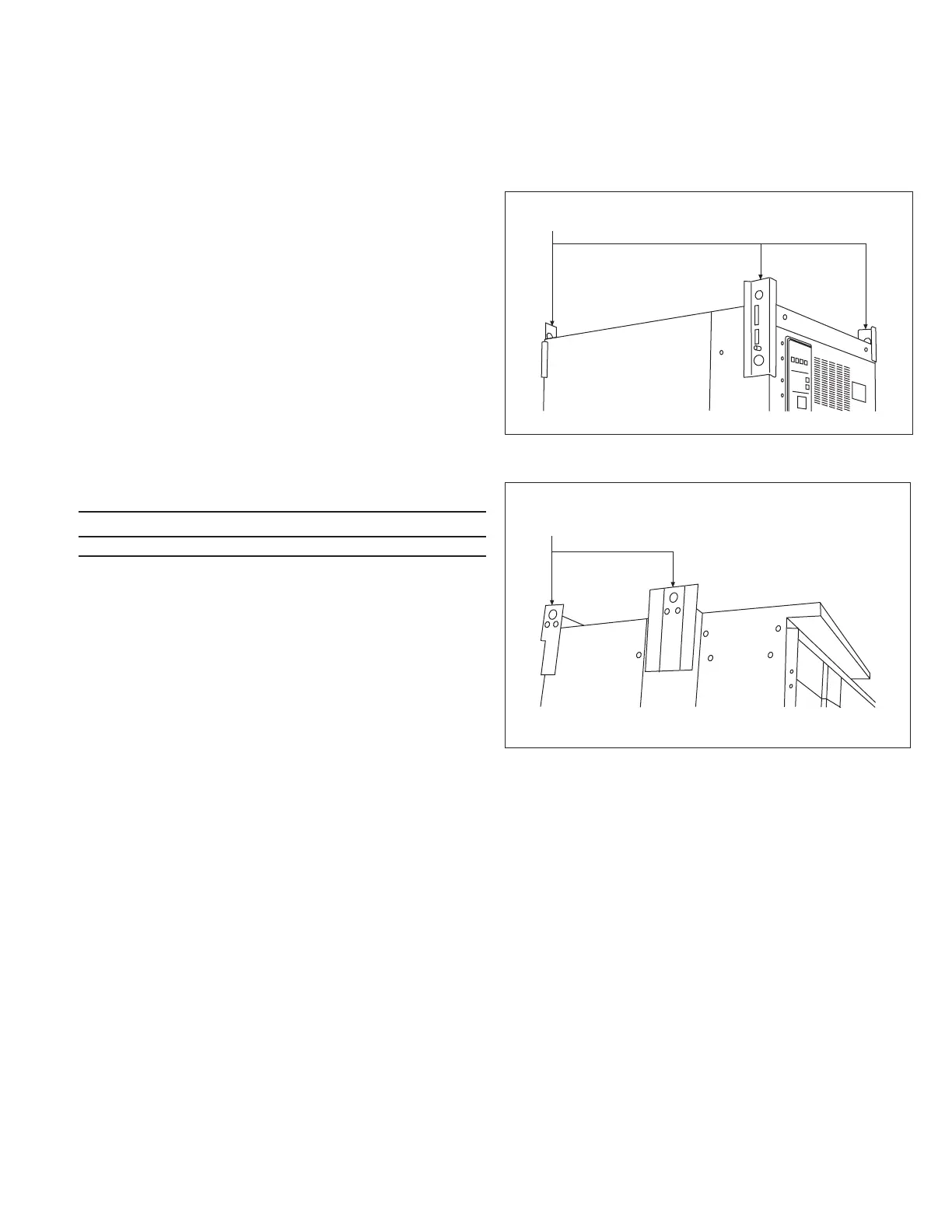

Figure 1. Typical Indoor Lifting Means
Figure 2. Typical Outdoor Lifting Means
DO NOT pass cables or chains through the holes in the lifting
means. Use cables or chain with hooks or shackles rated for the load
and weight of the switchboard shipping length to be lifted.
Prepare a sling and a spanner or spreader. (See Figure 3 and
Figure 4.) Eaton does not provide chain, cables, shackles, hooks,
spanner, or spreader.
Lifting Means
Lifting Means
