APPROXIMATE DIMENSIONS AND SHIPPING WEIGHTS (Continued)
Do not use for construction.
NEMA, Contactors & Starters, (Freedom)
NON-REVERSING & REVERSING STARTERS — ENCLOSED TYPE
NEMA 1
NEMA Size (poles)
Box
No.
Dimensions in Inches [mm]
Ship
Wt.
Lbs.
Wide
A
High
B
Deep
C
Mounting
Wide
D
High
E
NON-REVERSING STARTERS Without Control Power Transformers
00
1
5.62 [143] 10.09 [256] 5.71 [145] 4.50 [114] 8.00 [203] 7
00 with top adders
3
12.65 [321] 14.40 [366] 7.31 [186] 9.75 [248] 11.25 [286] 10
0
1
5.62 [143] 10.09 [256] 5.71 [145] 4.50 [114] 8.00 [203] 7.1
0 with top adders
3
12.65 [321] 14.40 [366] 7.31 [186] 9.75 [248] 11.25 [286] 10
1
1
5.62 [143] 10.09 [256] 5.71 [145] 4.50 [114] 8.00 [203] 7.9
1 with top adders
3
12.65 [321] 14.40 [366] 7.31 [186] 9.75 [248] 11.25 [286] 11.5
2
2
7.73 [196] 13.21 [336] 6.75 [172] 6.00 [152] 10.75 [273] 8.5
3
4
11.66 [296] 26.51 [673] 8.89 [226] 9.00 [229] 23.38 [594] 35
4
4
11.66 [296] 26.51 [673] 8.89 [226] 9.00 [229] 23.38 [594] 47
5
10
20.00 [508] 47.85 [1215] 11.36 [289] 14.50 [368] 46.25 [1175] 139
6
Consult Cutler-Hammer for Availability
7
8
9
NON-REVERSING STARTERS With Control Power Transformers
00
3
12.65 [321] 14.40 [366] 7.31 [186] 9.75 [248] 11.25 [286] 15
0
3
12.65 [321] 14.40 [366] 7.31 [186] 9.75 [248] 11.25 [286] 15
1
3
12.65 [321] 14.40 [366] 7.31 [186] 9.75 [248] 11.25 [286] 16
2
3
12.65 [321] 14.40 [366] 7.31 [186] 9.75 [248] 11.25 [286] 16.2
3
4
11.66 [296] 26.51 [673] 8.89 [226] 9.00 [229] 23.38 [594] 42
4
4
11.66 [296] 26.51 [673] 8.89 [226] 9.00 [229] 23.38 [594] 54
5
10
20.00 [508] 47.85 [1215] 11.36 [289] 14.50 [368] 46.25 [1175] 146
6
Consult Cutler-Hammer for Availability
7
8
9
REVERSING STARTERS Without Control Power Transformers
00
2
7.73 [196] 13.21 [336] 6.75 [172] 6.00 [152] 10.75 [273] 8
0
2
7.73 [196] 13.21 [336] 6.75 [172] 6.00 [152] 10.75 [273] 8
0 with top adders
3
12.65 [321] 14.40 [366] 7.31 [186] 9.75 [248] 11.25 [286] 11
1
3
12.65 [321] 14.40 [366] 7.31 [186] 9.75 [248] 11.25 [286] 13
1 with top adders
3
12.65 [321] 14.40 [366] 7.31 [186] 9.75 [248] 11.25 [286] 13.4
2
3
12.65 [321] 14.40 [366] 7.31 [186] 9.75 [248] 11.25 [286] 15
3
4
11.66 [296] 26.51 [673] 8.89 [226] 9.00 [229] 23.38 [594] 43
4
9
25.50 [648] 29.10 [739] 9.31 [237] 20.00 [508] 27.50 [699] 65
5
10
20.00 [508] 47.85 [1215] 11.36 [289] 14.50 [368] 46.25 [1175] 165
6
Consult Cutler-Hammer for Availability
7
8
9
REVERSING STARTERS With Control Power Transformers
00 with top adders
3
12.65 [321] 14.40 [366] 7.31 [186] 9.75 [248] 11.25 [286] 15
0
3
12.65 [321] 14.40 [366] 7.31 [186] 9.75 [248] 11.25 [286] 15
1 with top adders
3
12.65 [321] 14.40 [366] 7.31 [186] 9.75 [248] 11.25 [286] 17
2
3
12.65 [321] 14.40 [366] 7.31 [186] 9.75 [248] 11.25 [286] 19
3
4
11.66 [296] 26.51 [673] 8.89 [226] 9.00 [229] 23.38 [594] 50
4
9
25.50 [648] 29.10 [739] 9.31 [237] 20.00 [508] 27.50 [699] 72
5
10
20.00 [508] 47.85 [1215] 11.36 [289] 14.50 [368] 46.25 [1175] 172
6
Consult Cutler-Hammer for Availability
7
8
9

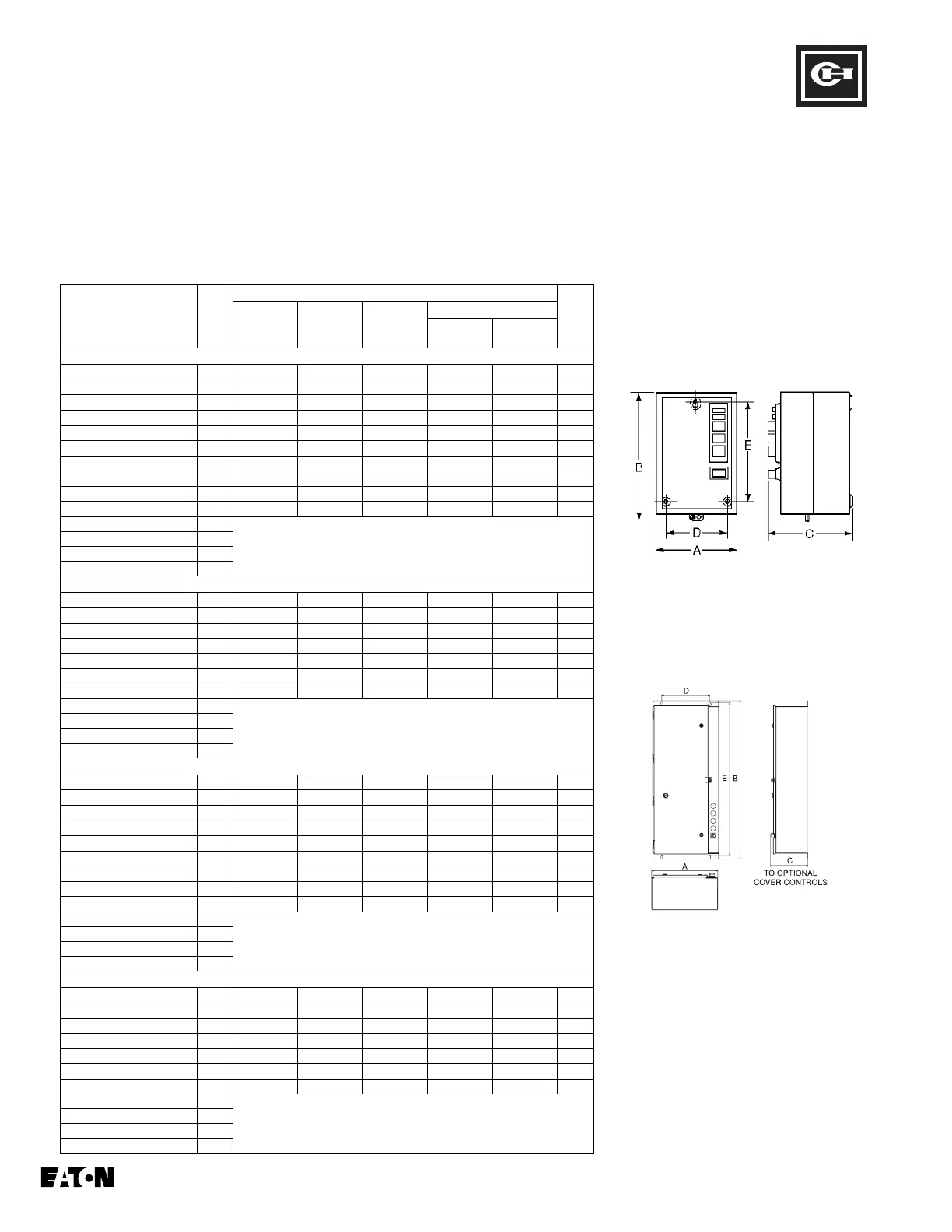

BOXES 1-4
BOXES 9-10
Technical Information Publication
8231
Page 16
February 2, 1998
