MHP/MXP/VHP/VXP Splitter Cylinder Disassembly and Assembly | Service Procedures TRSM0940

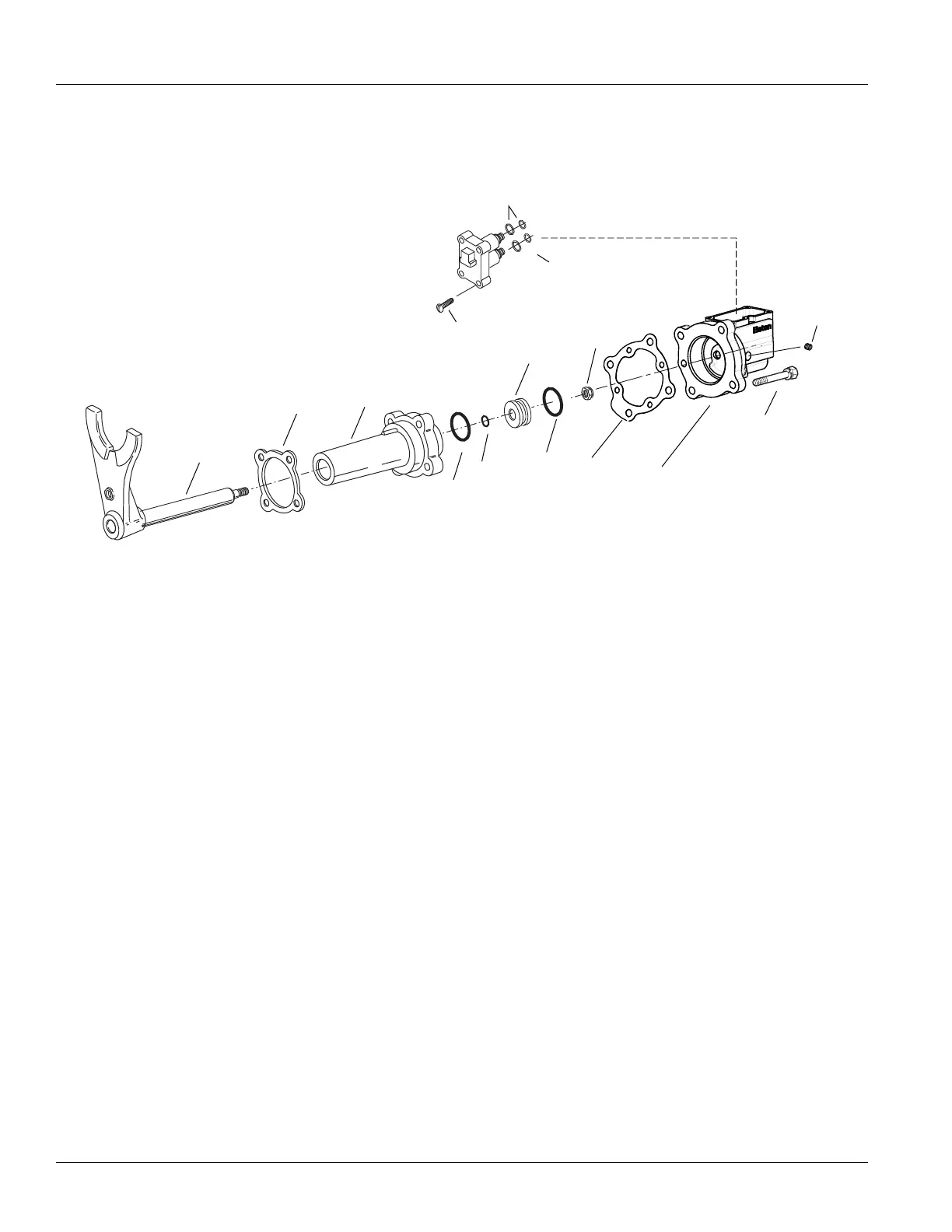

Component Identification
1. Splitter Yoke Assembly
2. Gasket
3. Splitter Cylinder
4. O-Ring
5. Piston
6. O-Ring
7. Nut
8. O-Ring
9. Gasket
10. Splitter Cylinder Cover
11. Pipe Plug
12. Capscrew
13. O-Ring
14. Hex Flange Head Screw
15. Solenoid Valve
1
11
12
2
3
4
5
6
7
8
9
10
13
14
15
