VCS/VMS Combination Cylinder Disassembly

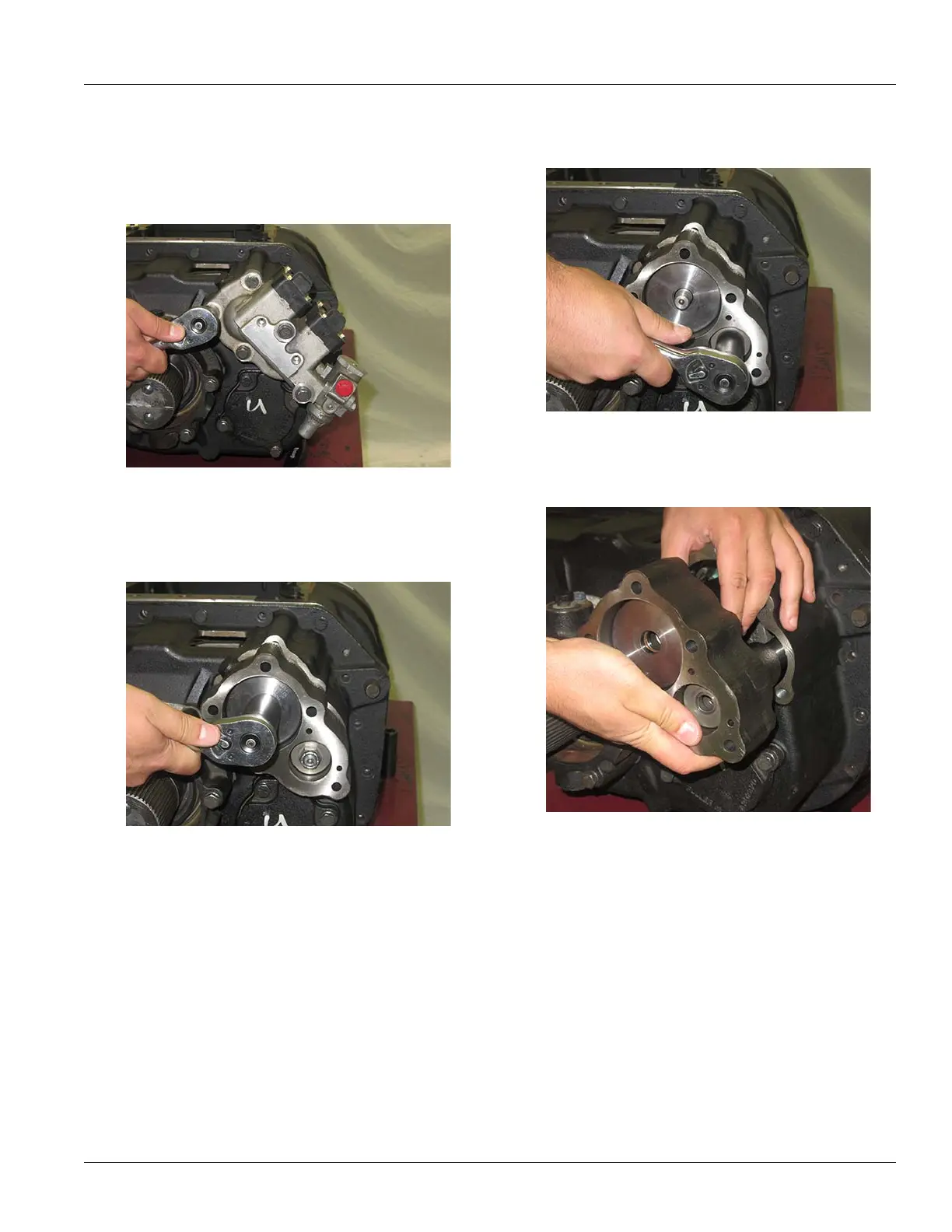

1. On the Combination Cover, remove the five (5) cap
screws, cover, and gasket
2. Remove the
15/16” nut that secures the range yoke
bar.
3. Remove the 3/4”
nut on the reduction yoke bar.
4. Remove the cylinder
housing and gasket.
