Input Shaft Speed Sensor Removal and Installation | Service Procedures TRSM0940

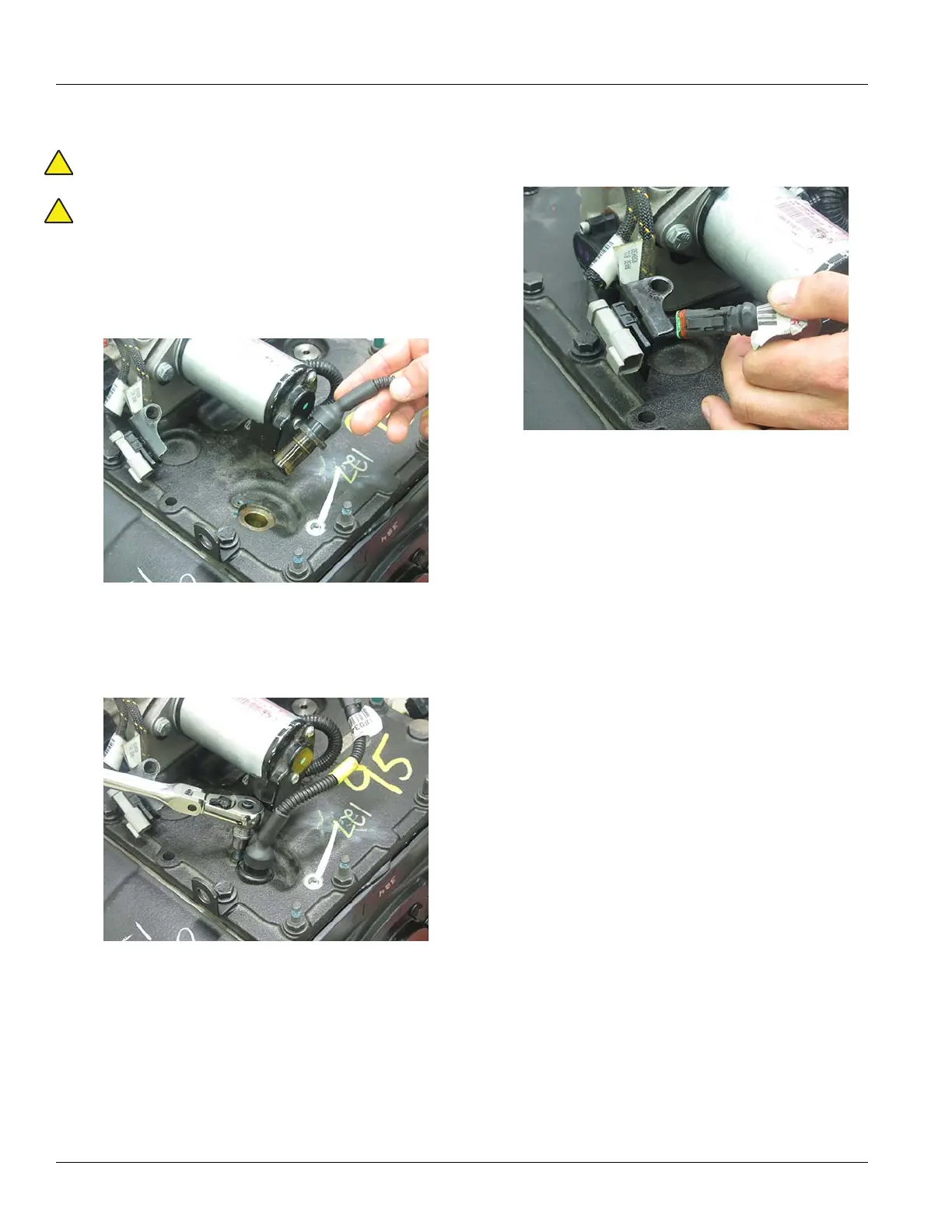

Input Shaft Speed Sensor Installation
Important: Clean the mounting surface on the housing and
remove any burrs or sharp edges.
Important: Lubricate the O-ring with Eaton Fuller silicone
71214 or equivalent.
1. Using
a smooth, twisting motion, fully insert the Input
Shaft Speed Sensor in the Transmission Shift Bar
Housing opening.
2. Using a
3/8” socket, install the retaining bolt and
tighten to 8–10 lb-ft (11–13 N•m).
3. Reconnec
t the Transmission Harness to the Input Shaft
Speed Sensor or pigtail connector, if equipped.
!
!
