Main Case Main Shaft without Low Force Gearing Disassembly | Service Procedures TRSM0940
Main Case Main Shaft Disassembly

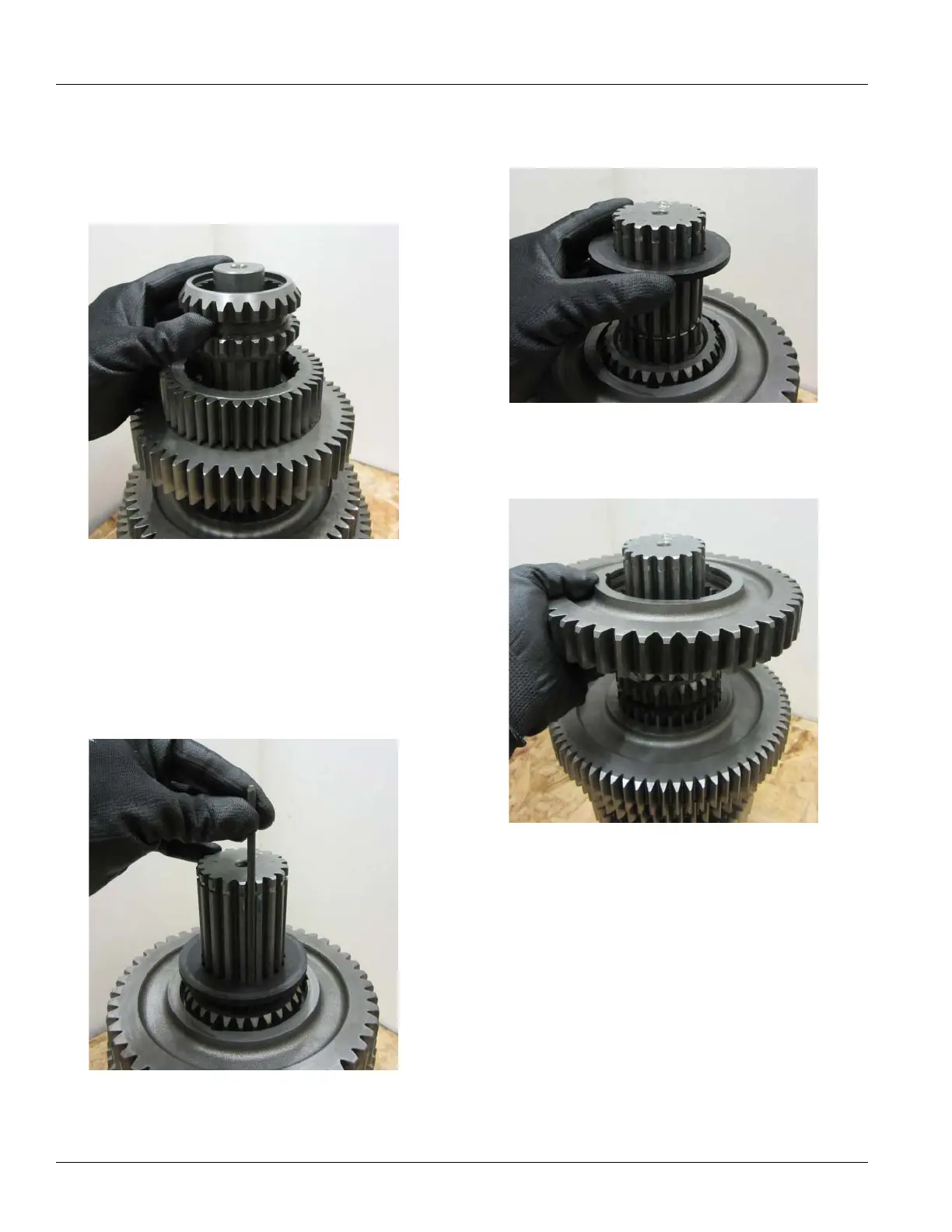

1. Remove the front (4th and 5th Gear) Sliding Clutch
from the Main Shaft
2. From the rear
of the Main Shaft, remove the key from
the Main Shaft keyway.
Note: When removing
no-burn washers or spacers,
note their location on the Main Shaft to facilitate reas-
sembly. Keep each washer with the corresponding gear
it
was mated against.
3. Remove the rear
spacer from the Main Shaft.
4. Remove the Revers
e Gear from the Main Shaft.
