Gear Position Sensor Removal and Installation | Service Procedures TRSM0940

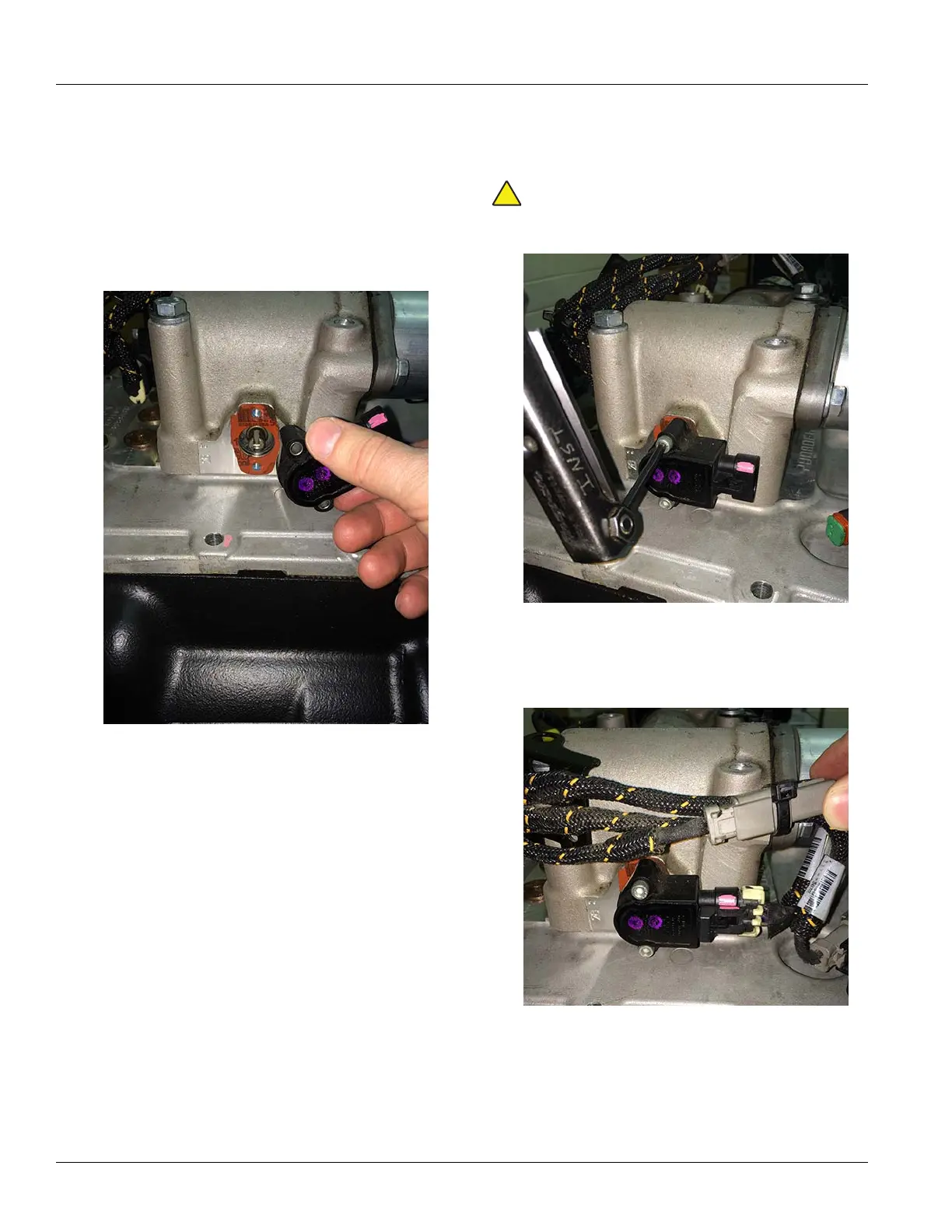

Gear Position Sensor Installation
1. Align the sensor tabs with the slots in the X-Y Shifter
Rail. Then, insert Gear Position Sensor, with gasket,
into its mounting location.
Note: Install sensor so the connector opening faces the
front of
the Transmission.
2. Using a 5/32”
hex key wrench, install the hex key
mounting screws and tighten to 21–27 lb-in (2.3–3.0
N•m).
Caution: Carefully hold sensor in position while install-
ing hex key mounting screws, or
sensor can snap.
3. Reconnec
t the Transmission Harness to the Gear Posi-
tion Sensor.
To Next Page
