X-Y Shifter Removal and Installation | Service Procedures TRSM0940
X-Y Shifter Installation

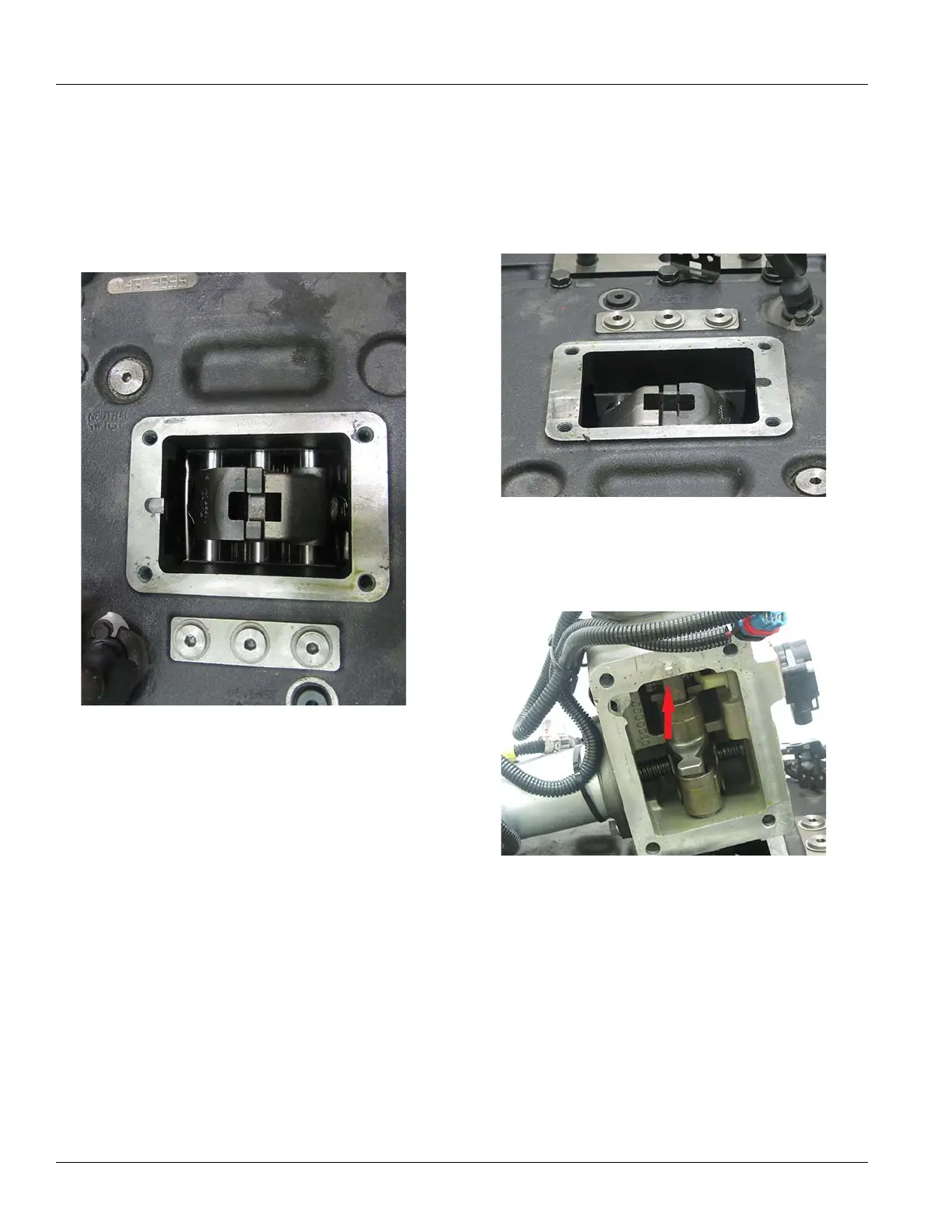

1. Ensure Shift Blocks are in the Neutral position, then
move Shift Finger to the center (Neutral) location.
Note: I
f the Shift Finger is not properly aligned, the X-Y
Shifter will not fit properly at its mounting location.
2. Clea
n and remove old gasket material from Shift Bar
Housing. Then, install new gasket on the Shift Bar
Housing.
Note: Ap
ply Eaton sealant part number 71205 or equiv-
alent to the mounting cap screws before installing.
3. Th
e dowel pin on the X-Y Shifter must be aligned with
hole in the Shift Bar Housing.
