LAS/VAS Auxiliary Section Removal and Disassembly | Service Procedures TRSM0940
LAS/VAS Auxiliary Section Removal and Disas-
sembly

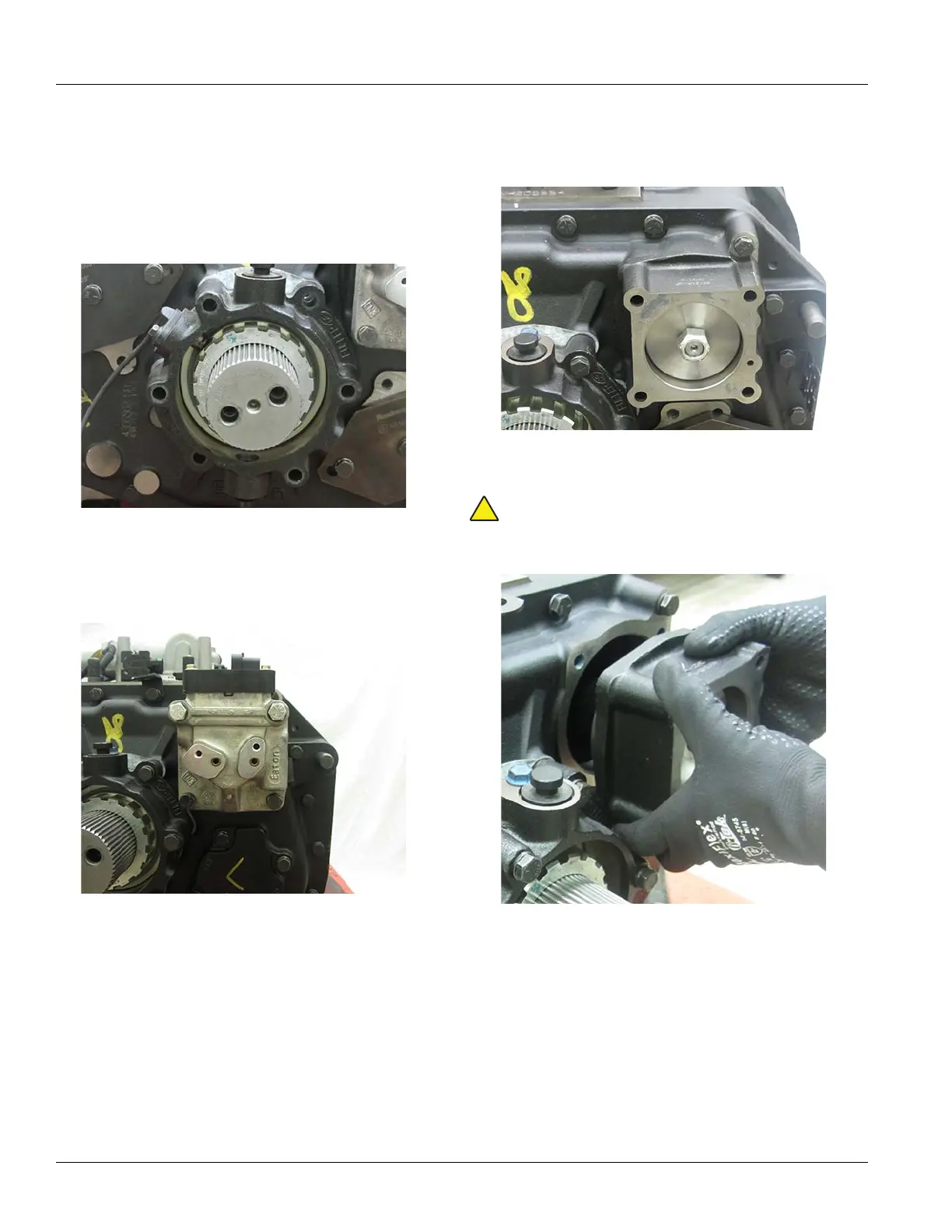

1. Remove the six cap screws that fasten the Output Shaft
Bearing Cover to the Auxiliary Section, remove the Out-
put Shaft Bearing Cover.
2. Remove the cap scre
ws that fasten the Range Cover to
the Range Cylinder. Remove the Range Cover.
3. Remove the single
cap screw that fasten the Range
Piston to the Range Shift Yoke Bar.
4. Remove the Range Cylinder
assembly.
Caution: Auxiliary Counter Shafts will fall out part way
through this process.
!
To Next Page
