Range Valve Removal and Installation
Special Instructions
The Range Valve may be difficult to remove from the Trans-
mission Housing because of the O-rings.
Special Tools
Basic hand tools

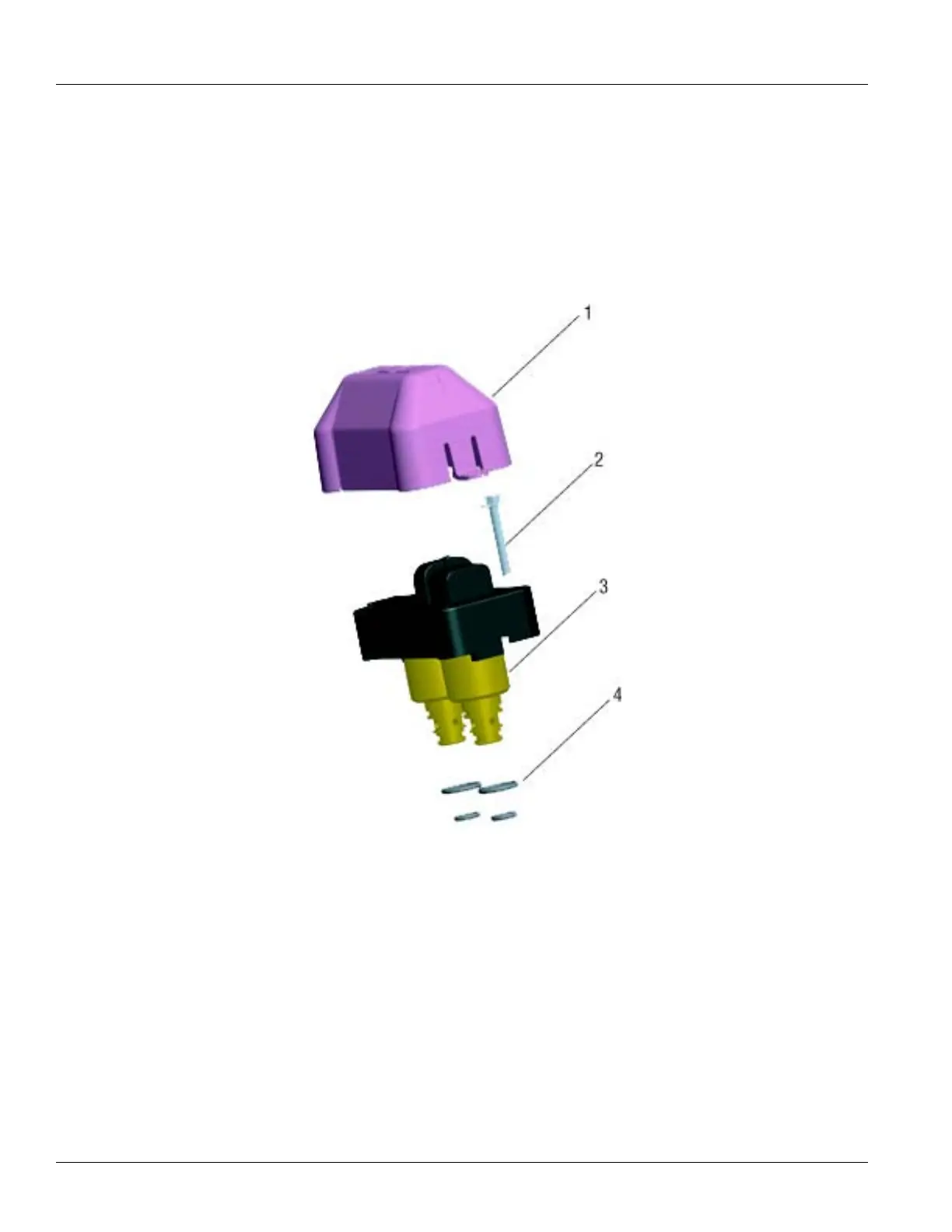

Component Identification
1. Protective Cover (Optional)
2. Cap Screw
3. Valve
4. O-rings
