Main Case Disassembly and Lubrication Tube Removal
Special Instructions
None
Special Tools
None

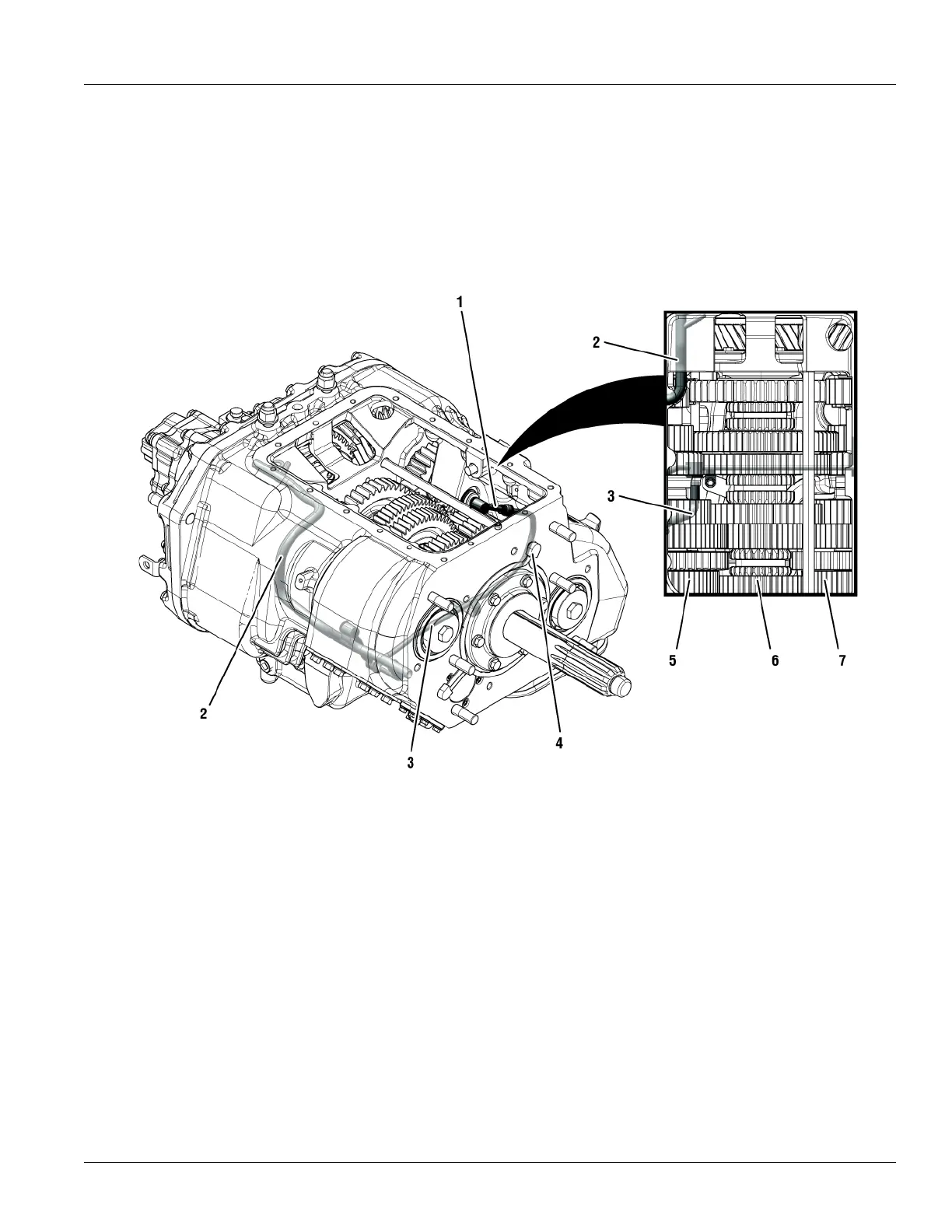

Component Identification
1. Upper Idler Lubricant Tube
2. Auxiliary Lubricant Tube
3. Idler Feed Lubricant Tube
4. Halo Lubricant Tube
5. Upper Counter Shaft
6. Main Shaft
7. Lower Counter Shaft
