Main Case Disassembly and Lubrication Tube Removal | Service Procedures TRSM0940

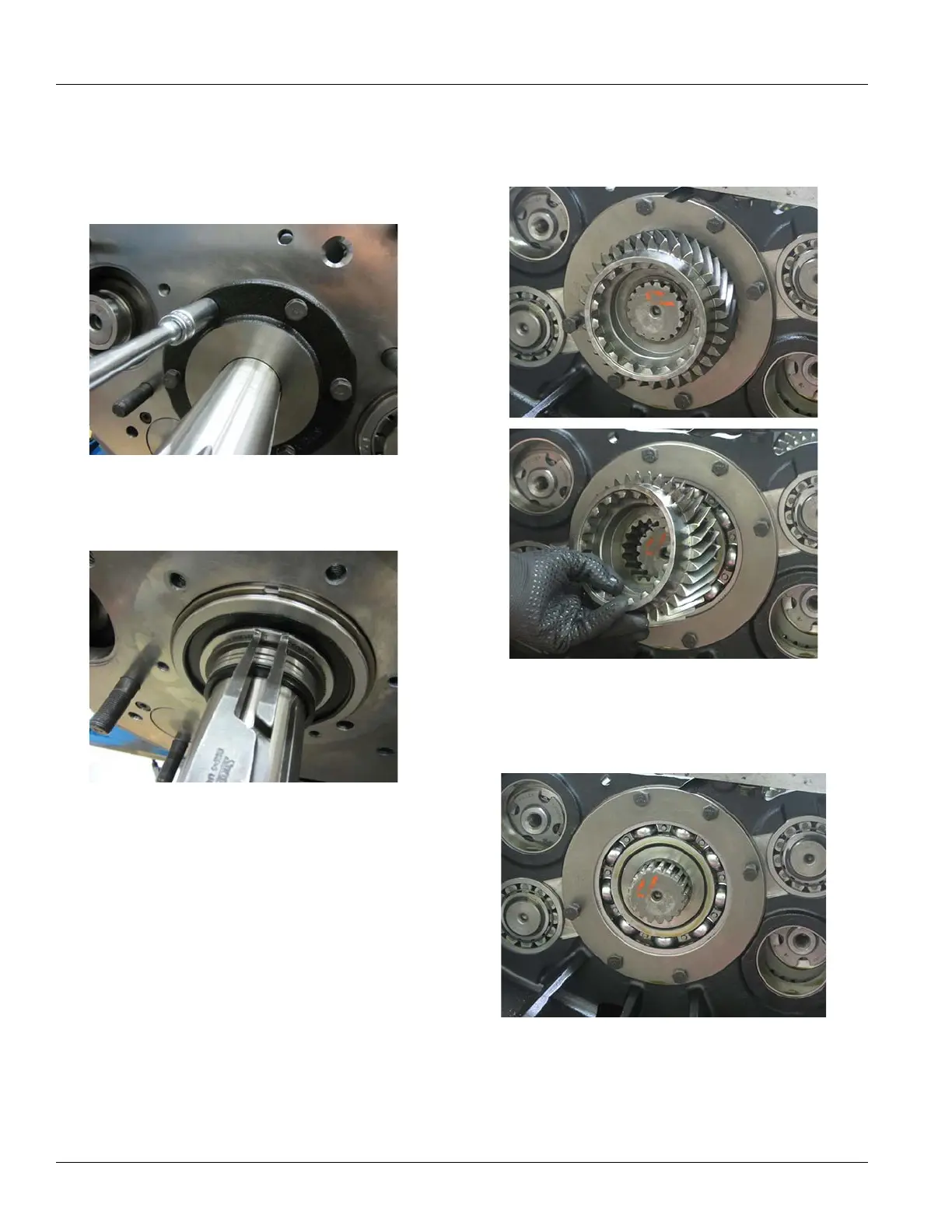

Main Case Disassembly
1. Remove the six cap screws fastening the Input Shaft
Bearing Cover to the Transmission Main Case.
2. Remove
the Input Shaft snap ring from the Input Shaft.
3. Remove Holo Lu
brication Tube
4. Remo
ve the snap ring holding the Auxiliary Drive Gear
to the Main Shaft, remove the Auxiliary Drive Gear.
5. Remove
the six cap screws fastening the bearing
retainer ring to the Main Case intermediate wall.
