TRSM0940 Service Procedures | Main Case Disassembly and Lubrication Tube Removal

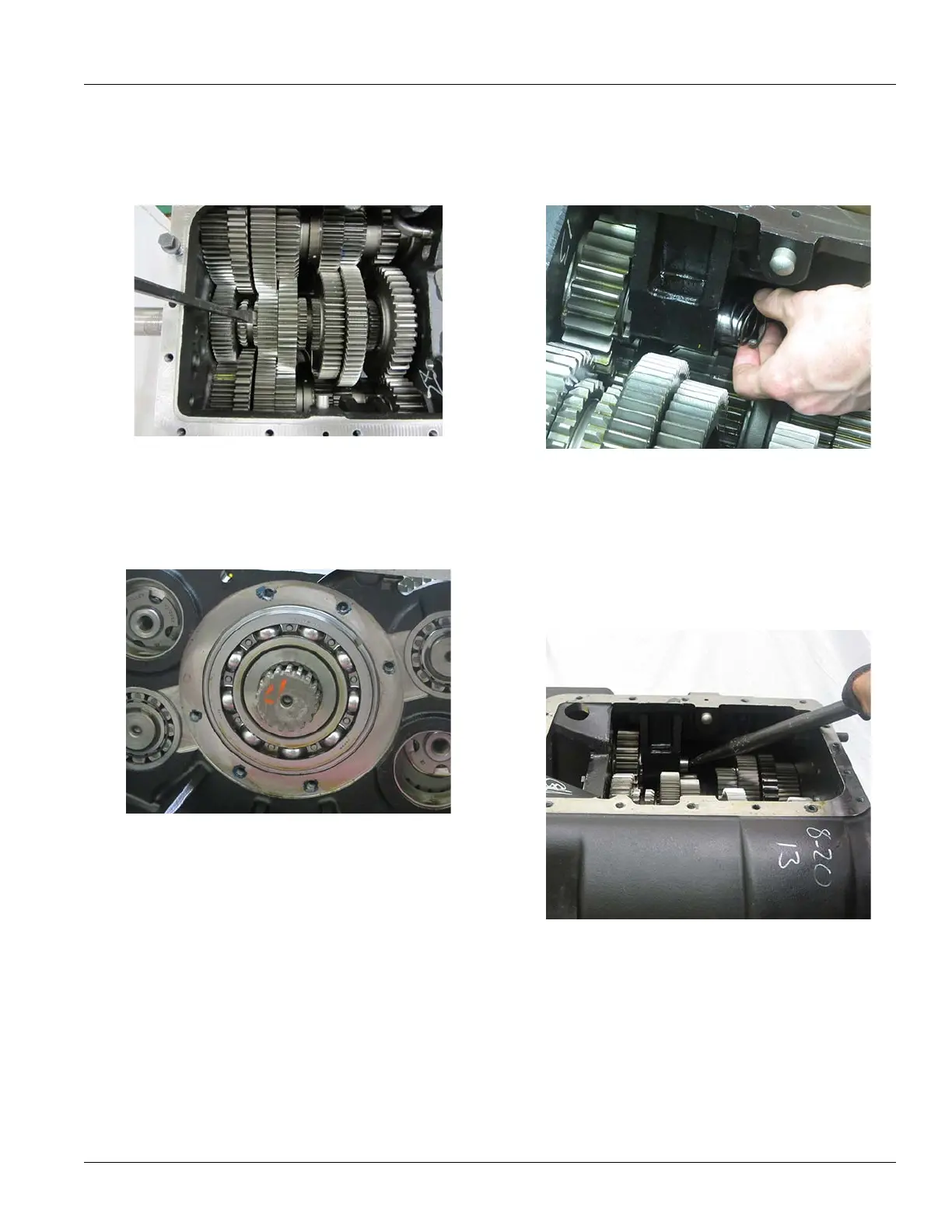

6. Using a pry bar, force the Main Shaft toward the rear of
the case to aid in unseating the Main Shaft Bearing
from the Transmission Main Case.
7. Use
a rolling head pry bar (Crow’s foot) to work the
Main Shaft Bearing from the Main Case intermediate
wall.
8. Remove the spiral
lock from the front of the upper
Reverse Idler using a small screwdriver to pry it from
the groove.
9. Using
a soft bar, drive the Reverse Idler Shaft out from
its bore in the case.
Note: Wh
en driving the shaft out of position, the
washers that are on either side of the Reverse Idler
Gear will dro
p once the shaft is out.
