143
© 2017 Eaton. All rights reserved
2018.12.12
Main Case Disassembly and Lubrication Tube Removal | Service Procedures TRSM0940

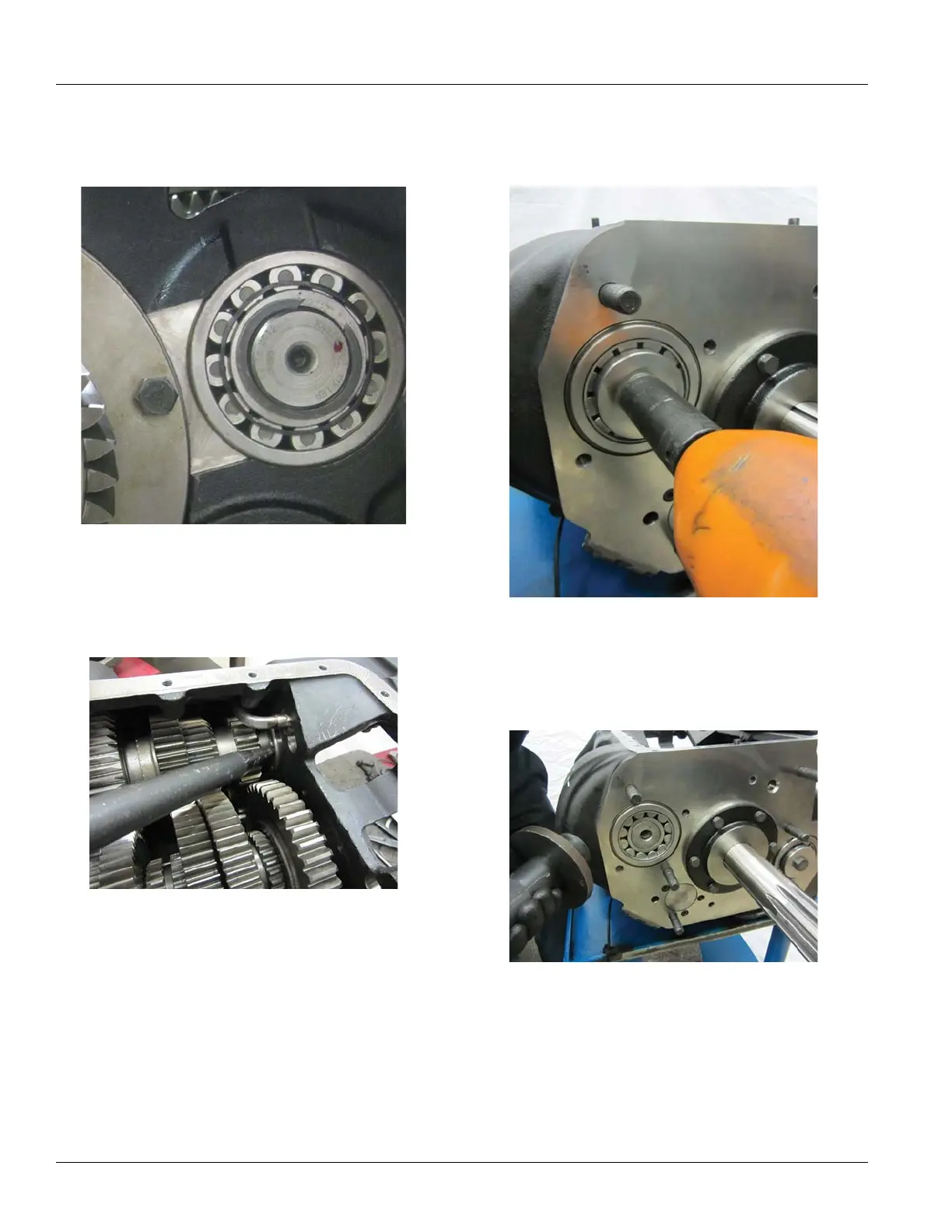

10. Remove the snap ring from the upper Counter Shaft
Rear Bearing.
11. Using a
soft bar, drive the rear Counter Shaft Bearing
out from the intermediate wall and off of the upper
Counter Shaft.
12. Remo
ve the front Counter Shaft Bearing bolt and
retainer using a 15/16” socket.
13. Usi
ng the K-Line soft maul with hand guard, strike the
case to the left of the front Counter Shaft Bearing to
drive it out of the bore.
