MHP/MXP/VHP/VXP Splitter Cylinder Disassembly and Assembly | Service Procedures TRSM0940

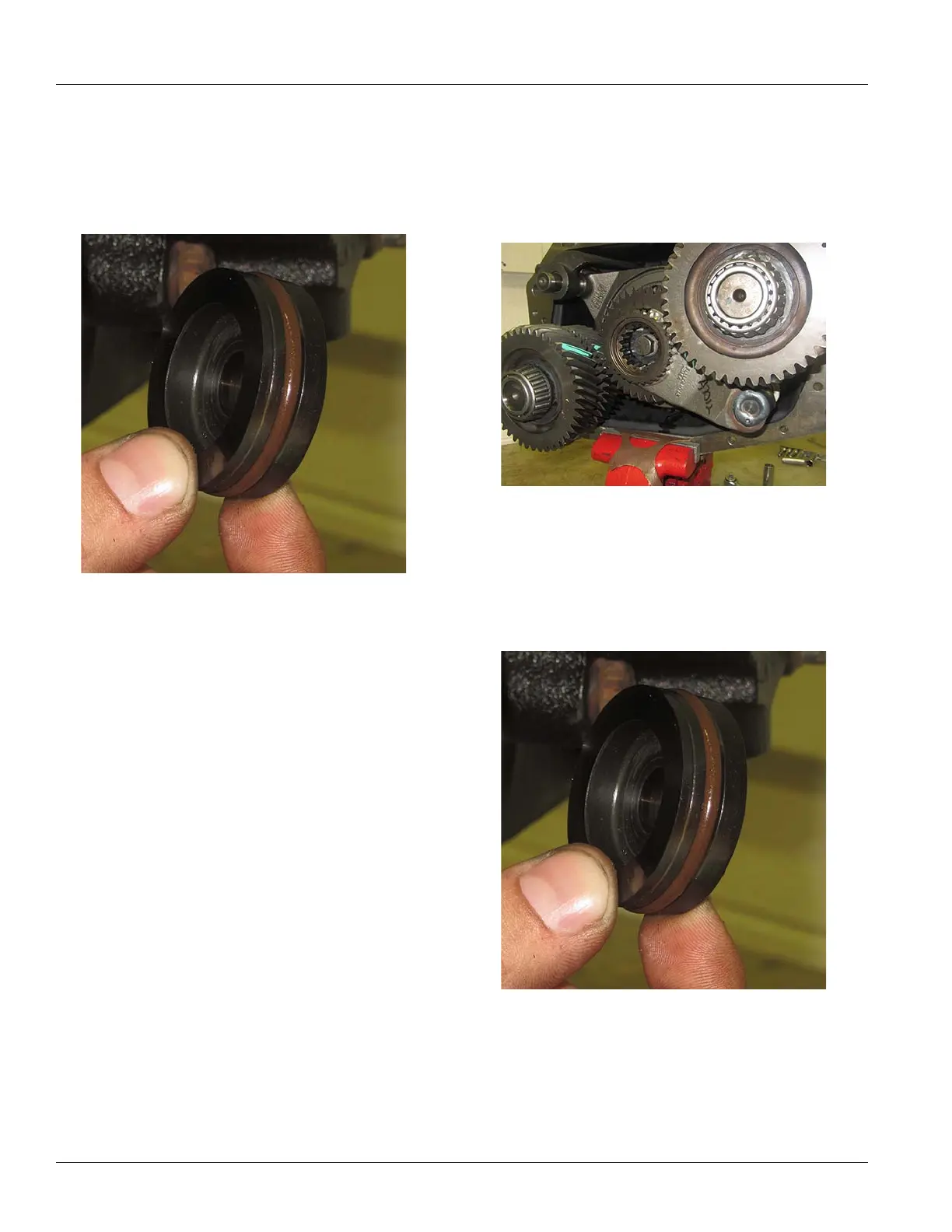

6. Remove the Piston from the bore of the Splitter Cylin-
der.
Note: If spool
valve needs to be replaced, it must be
done as an entire unit which is part of splitter cover
Splitter Cylinder Assembly
1. Install the Splitter Sliding Clutch on the Splitter Yoke
Fork and engage into the Splitter Gear to maintain posi-
tion.
2. In
stall small O-ring in the Cylinder Housing Bore if pre-
viously removed.
3. On the Pi
ston O.D., install the Piston O-ring if previ-
ously removed.
