TRSM0940 Service Procedures | MHP/MXP/VHP/VXP Auxiliary Countershaft Installation

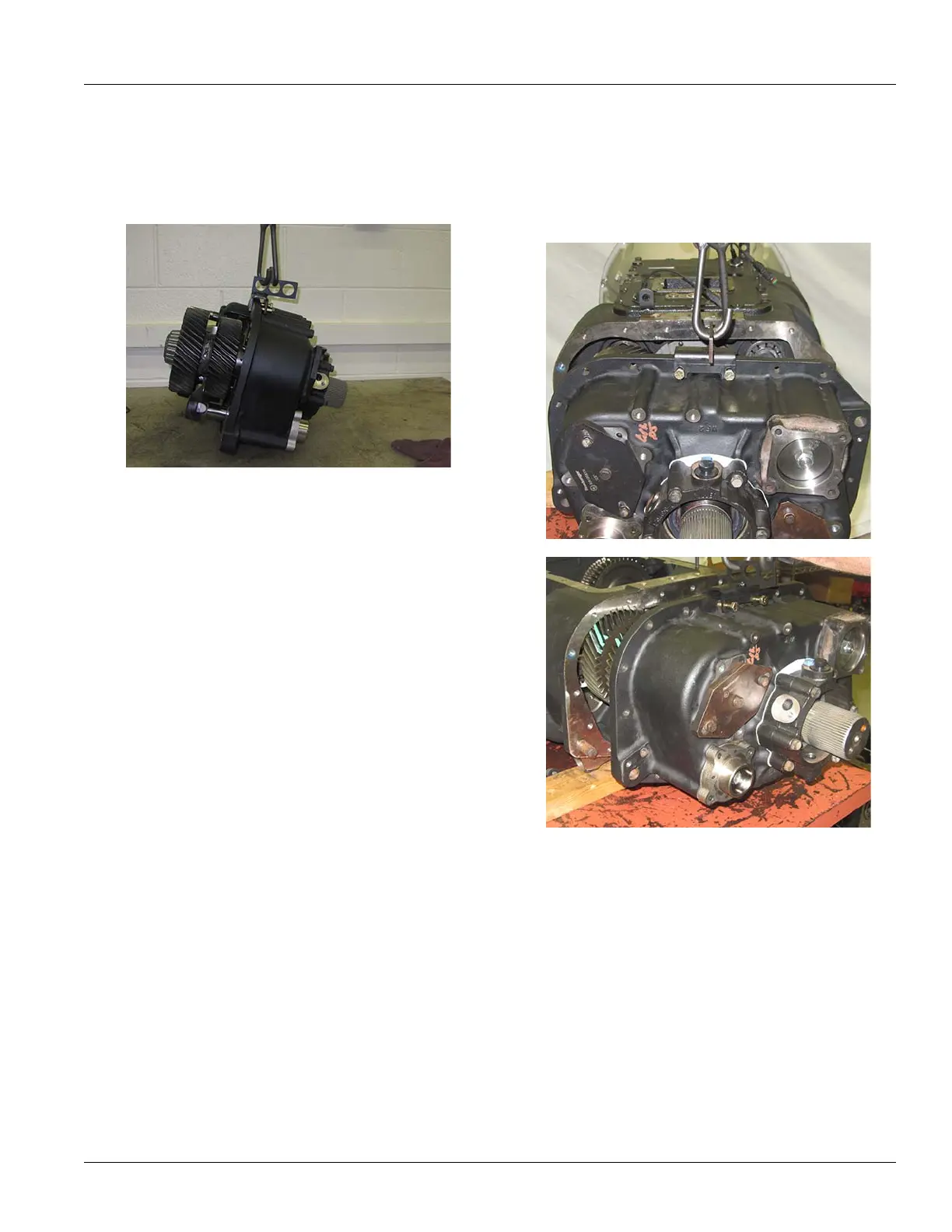

Auxiliary Section Installation
1. Attach the Auxiliary Section lifting bracket to the top of
the Auxiliary Case.
2. Position
a new Auxiliary Case Gasket on the mounting
surface of the Main Case.
3. Install
the Auxiliary Case Assembly onto the transmis-
sion Main Case dowel pins. Using the Output Shaft,
wiggle the auxiliary
case forward until it is as far for-
ward as possible. Remove the auxiliary section lifting
bracket.
