Eaton UltraShift PLUS Series User Manual

245
© 2017 Eaton. All rights reserved
2018.12.12
Torque Specifications | Appendix TRSM0940
Torque Specifications
Important: Torque specifications not defined in the follow-
ing diagrams will be referenced in the service procedures.
!

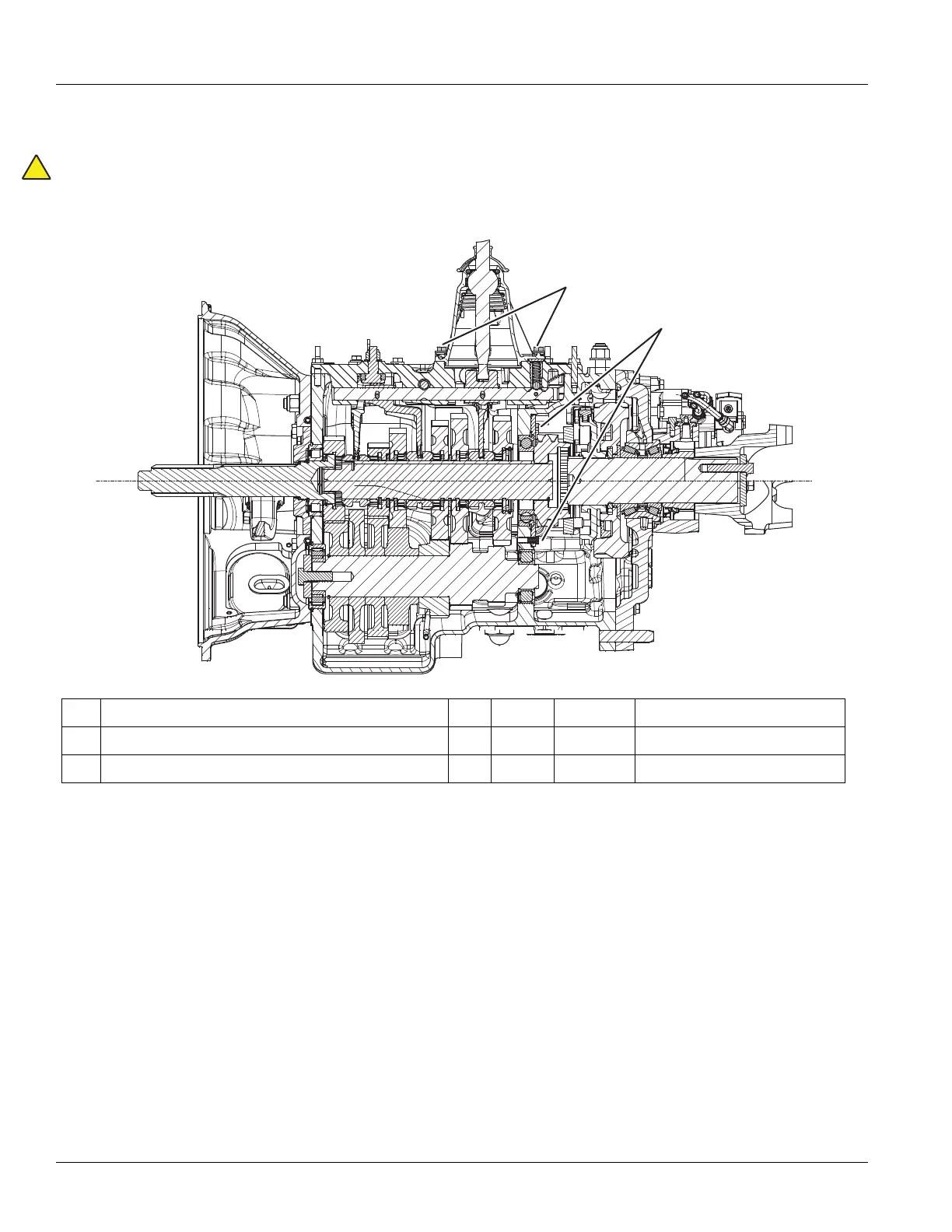

Description Qty. Size TPI Torque
1. XY Shifter Cap Screws 4 0.375" 16 30–40 lb-ft (41–54 N•m)
2. Auxiliary Drive Gear Bearing Retainer Cap Screws 6 0.375" 16 35–45 lb-ft (48–61 N•m)
2
1
