Transmission Overview | General Information TRSM0940
Transmission Overview

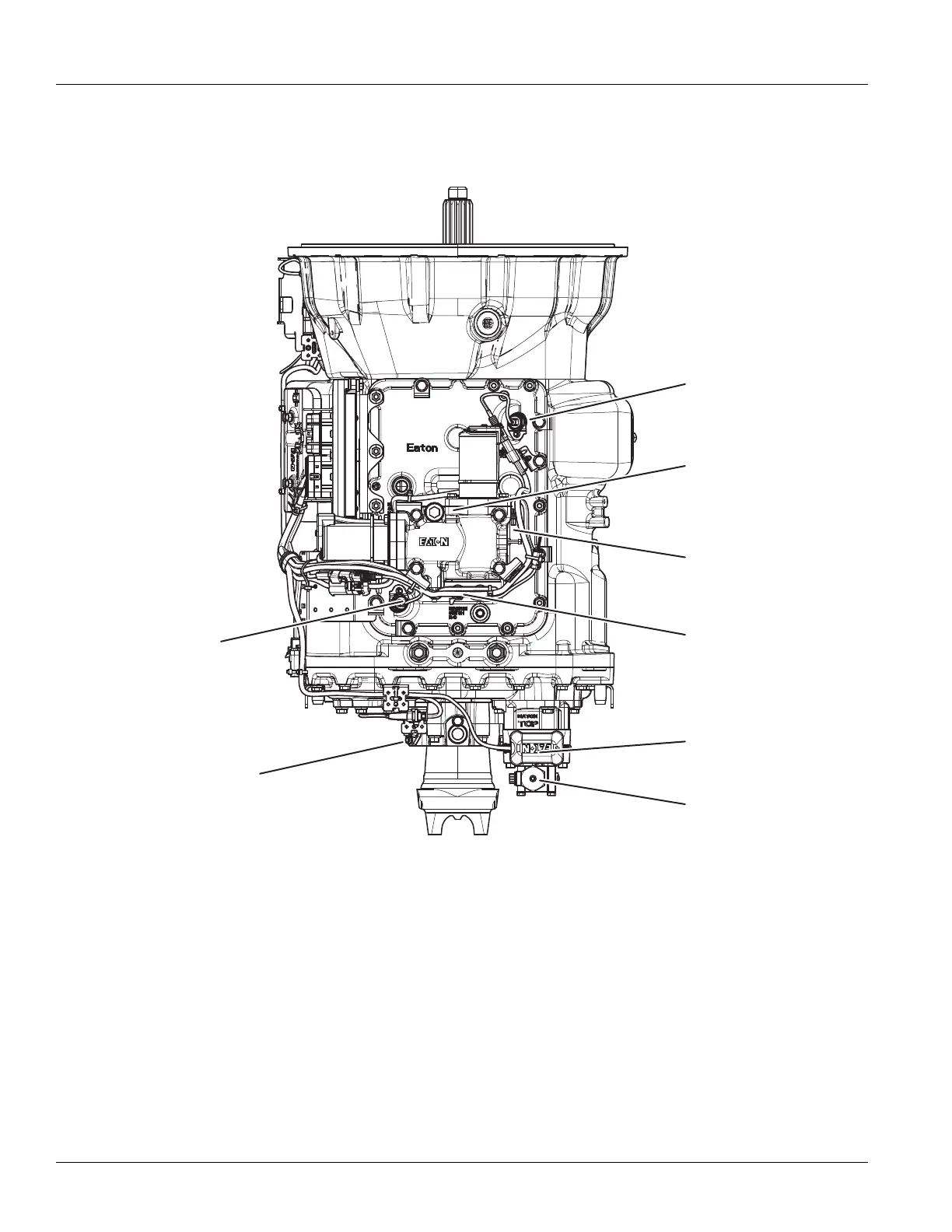

Transmission - Top View
1. Input Shaft Speed Sensor
2. X-Y Shifter
3. Gear Position Sensor
4. Rail Position Sensor
5. Range Solenoid Valve
6. Air Filter/Regulator
7. Output Shaft Speed Sensor
8. Main Shaft Speed Sensor
1
2
3
4
5
6
7
8
