TRSM0940 Service Procedures | MHP/MXP/VHP/VXP Range Cylinder Disassembly and Assembly
MHP/MXP/VHP/VXP Range Cylinder Disassembly and Assembly
Special Instructions
On 9-series UltraShift PLUS transmissions the Auxiliary
section requires R&R prior to Range Cylinder removal.
Damage to internal components will result if Auxiliary Sec-
tion is not properly removed prior to Cylinder removal.
During installation, apply Eaton® Lubricant or equivalent to
Shift
Cylinder Assembly and insert valve O-Rings so a film
covers the entire surface of each O-Ring.
Special Tools
Typical Service Tools

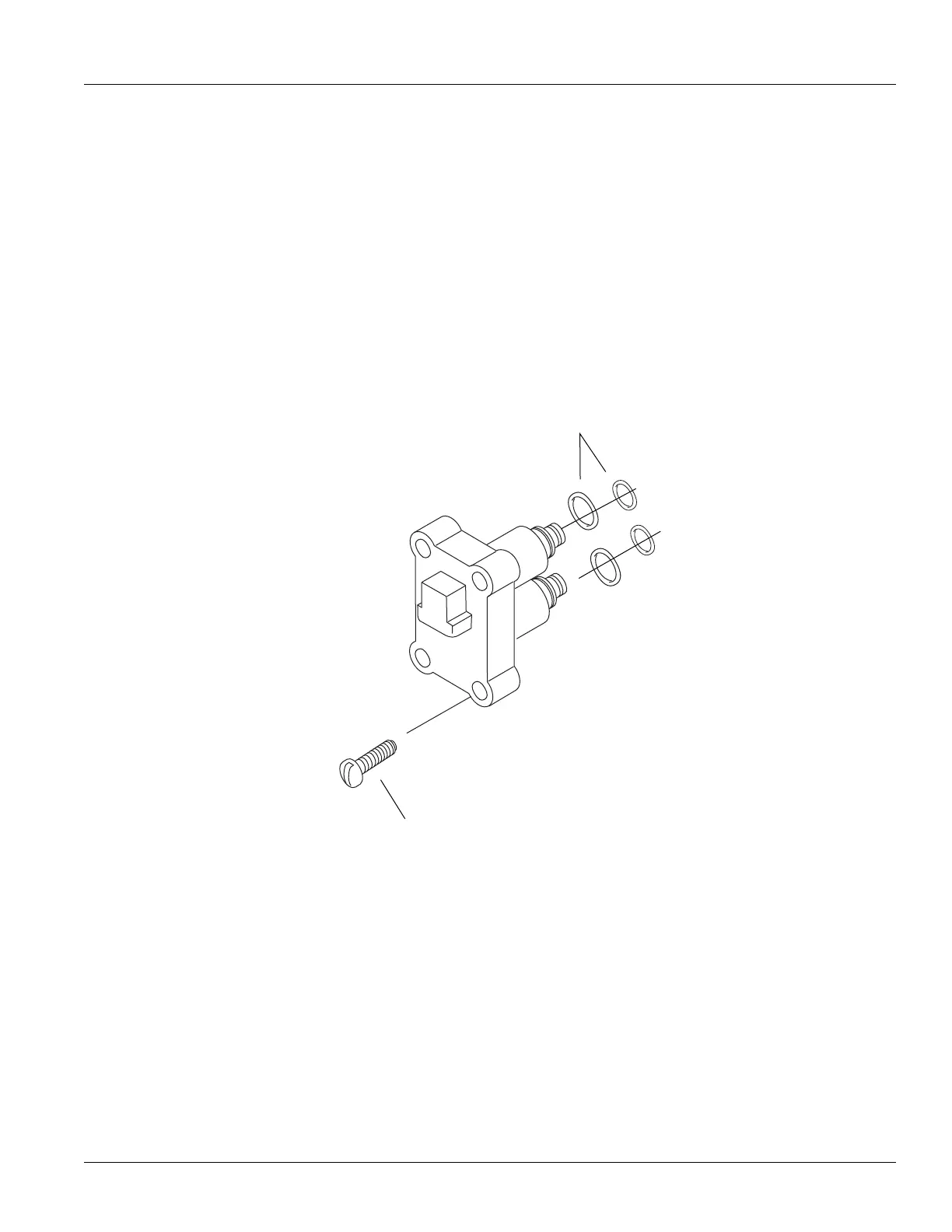

Component Identification
1. Hex Flange Head Screw
2. O-Rings
1
2
