MHP/MXP/VHP/VXP Range Cylinder Disassembly and Assembly | Service Procedures TRSM0940

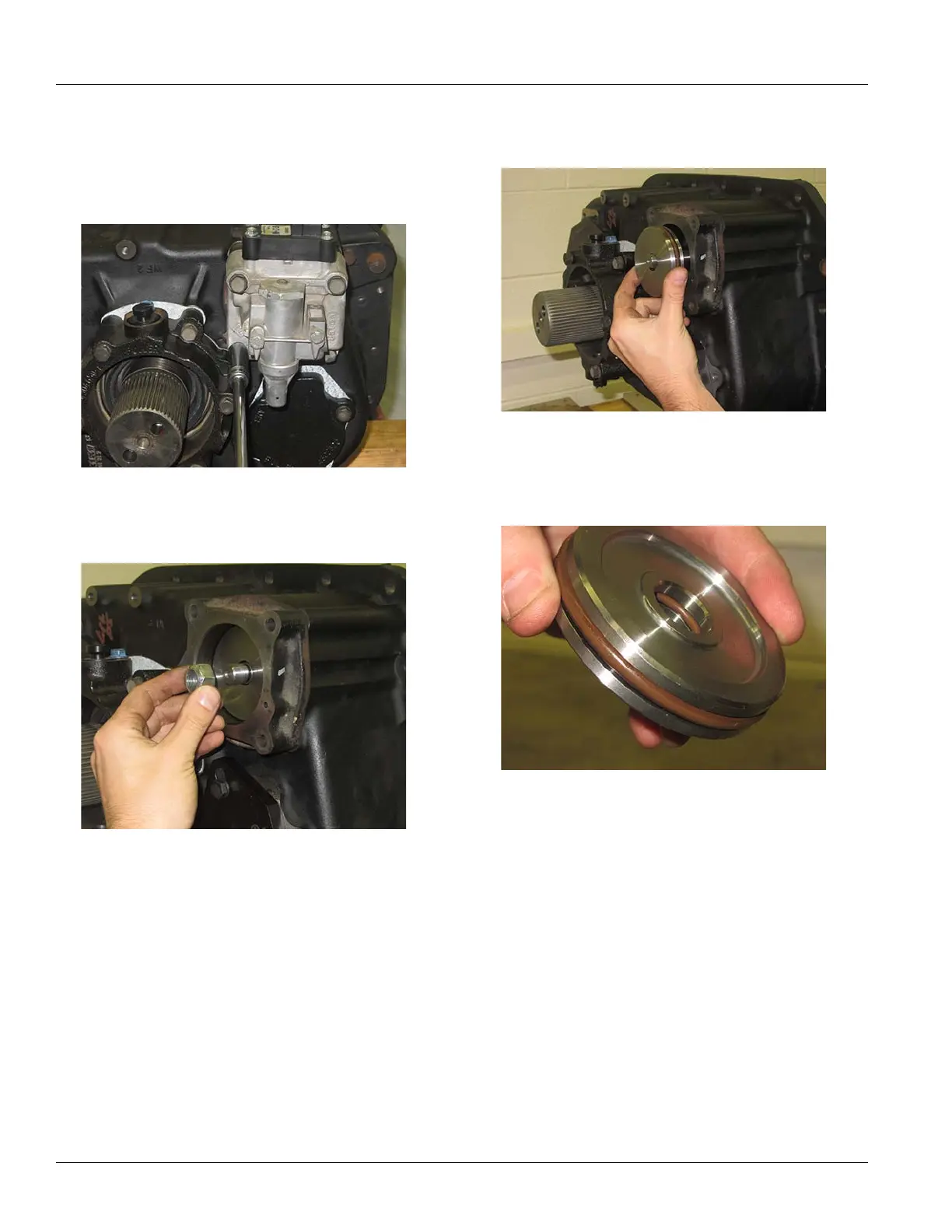

Range Cylinder Disassembly
1. On the Range Cylinder Cover, remove cap screws,
cover, and gasket
2. Remove the
15/16” nut that secures the range yoke.
3. Remove the Range Piston from
the cylinder bore
4. Inspect the Range Piston O-Rings for damage. Remove
and replace if damage
is present.
