181
© 2017 Eaton. All rights reserved
2018.12.12
Main Case Main Shaft Assembly | Service Procedures TRSM0940
Main Case Main Shaft Assembly
Special Instructions
None
Special Tools
None

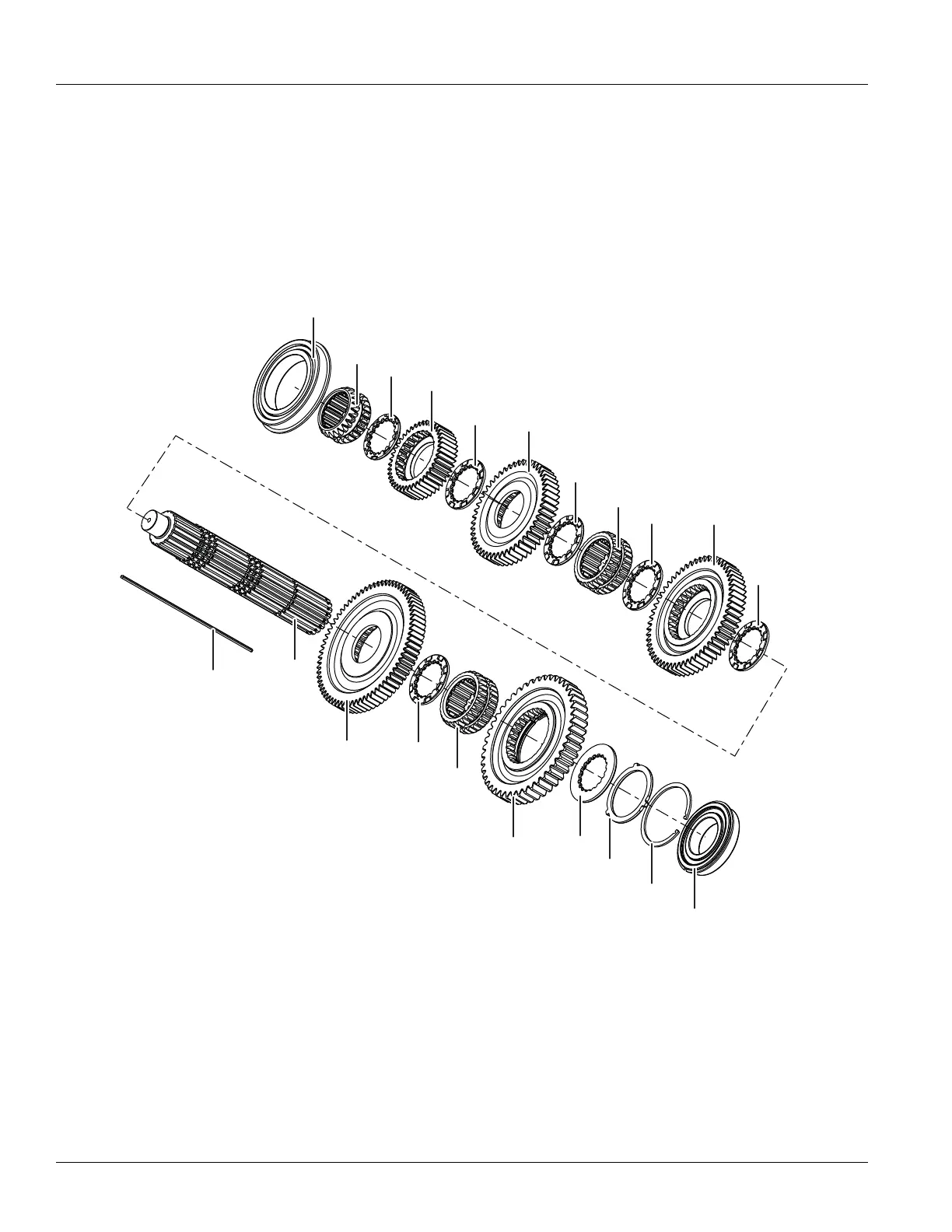

Component Identification
1. Input Bearing
2. 4/5 Sliding Clutch
3. Main Shaft Washers (x6)
4. 5th Gear
5. 3rd Gear
6. 2/3 Sliding Clutch
7. 2nd Gear
8. Main Shaft Key
9. Main Shaft
10. 1st Gear
11. 1/R Sliding Clutch
12. Reverse Gear
13. Washer
14. Spacer
15. Snap Ring
16. Auxiliary Bearing
16
15
14
13
12
10
9
8
3
7
5
3
4
3
2
1
3
3
6
11
3
