TRSM0940 Service Procedures | Main Case Main Shaft Assembly

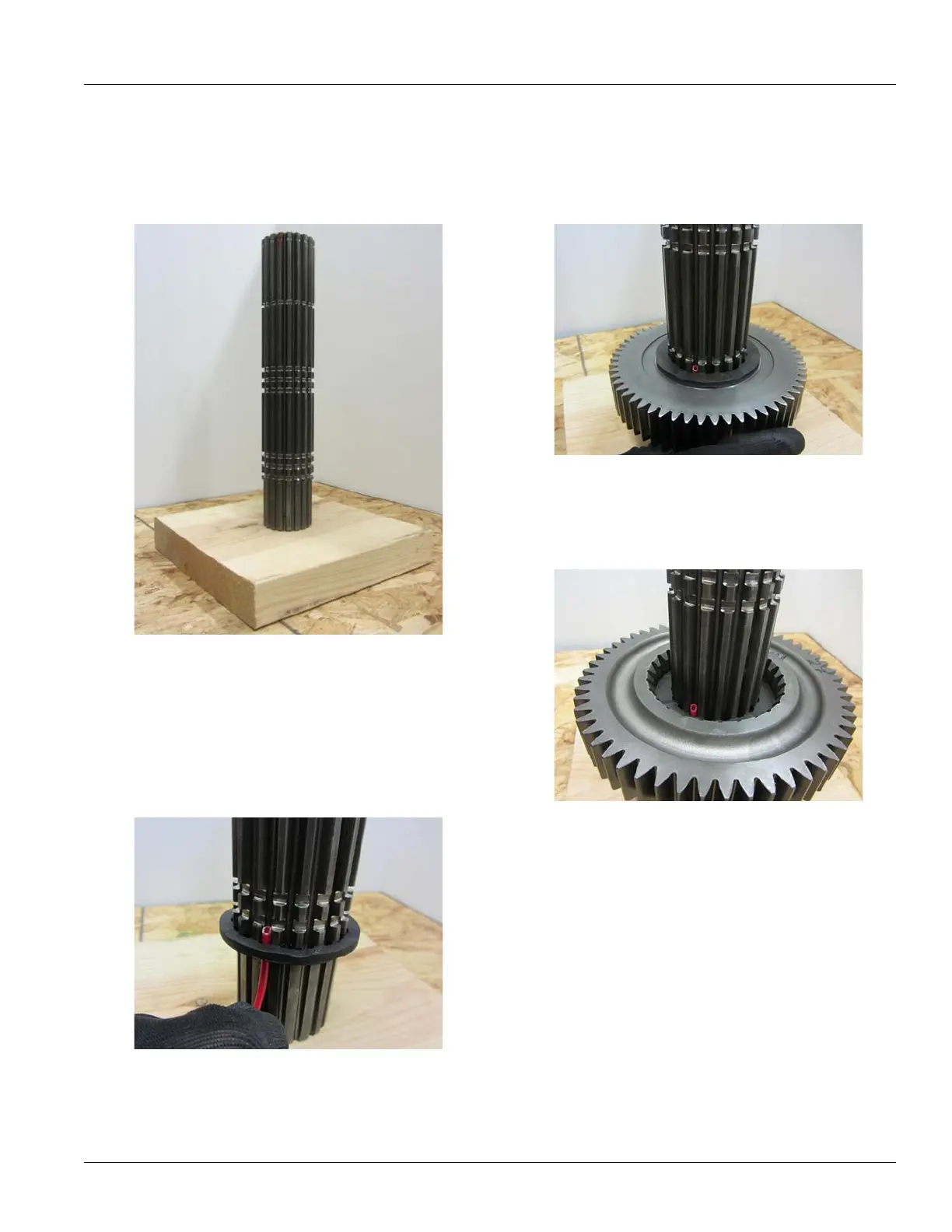

Main Case Main Shaft Assembly
1. Place the Main Shaft vertical and hold the noise in a
vise or a pilot hole in a piece of wood.
2. Install
the first stepped washer with the stepped side
facing down so it will contact the 4th/5th sliding clutch.
3. Use a piece of 5/32” air line
to push up through the key
way groove to lock the stepped and no-burn washers
in place as the Main Shaft is built.
4. Install
the Overdrive Gear or Direct Drive Gear
(depending on the model of the transmission) and the
no-burn washer. Rotate the washer and push the air
line through.
5. Install the
3rd Gear and stepped washer. Rotate the
stepped washer and push the air line through.
