Main Case Main Shaft Assembly | Service Procedures TRSM0940

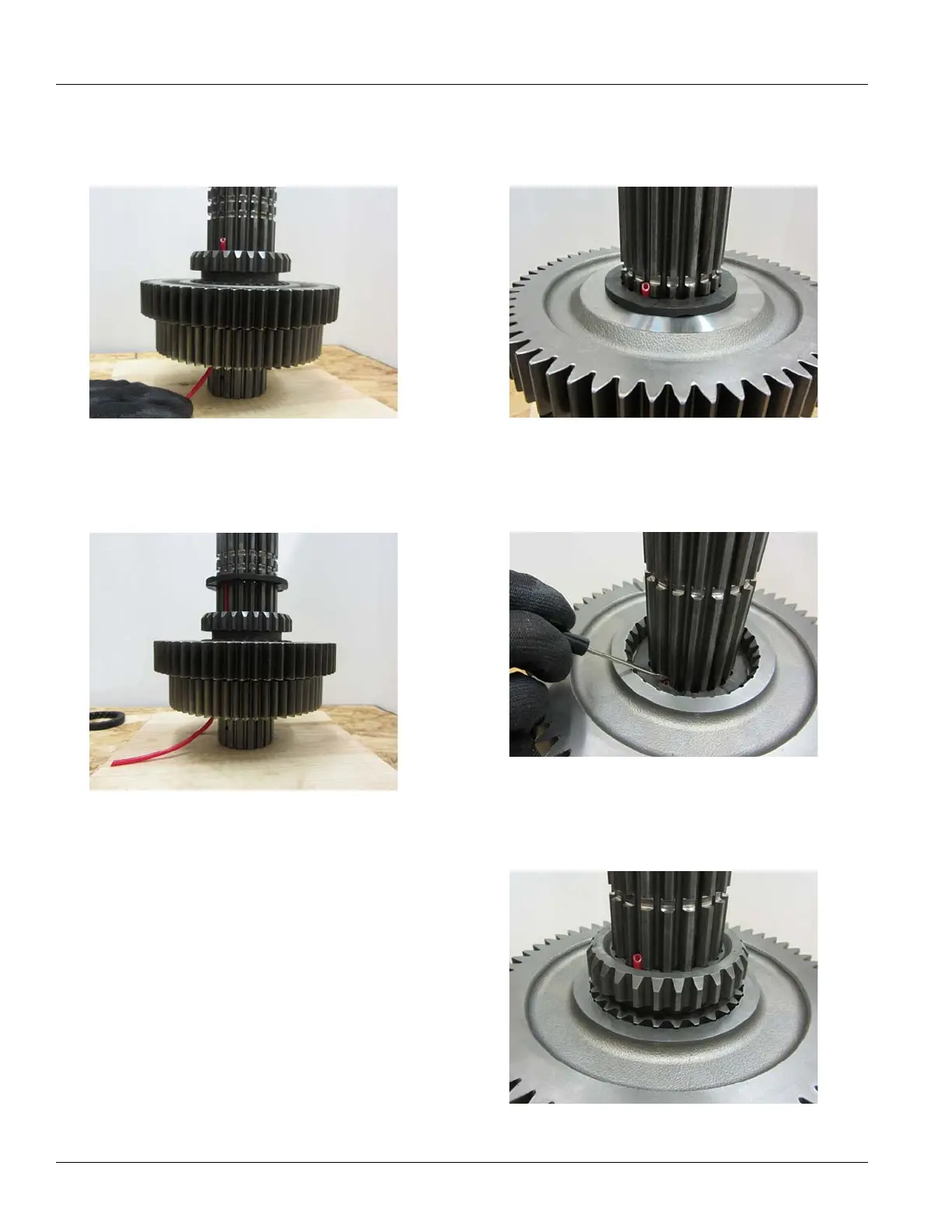

6. Install the 2nd/3rd Sliding Clutch. Make sure the wide
slot on the sliding clutch aligns with the keyway.
7. Install the stepped washer. Rotate the
stepped washer
and push the air line through.
8. Install
2nd Gear and the no-burn washer. Rotate the
no-burn washer and push the air line through.
9. Install
1st Gear and the stepped washer. Rotate the
stepped washer and push the air line through.
10. Install the
1st/Reverse Sliding Clutch. Align the wide
slot on the sliding clutch with the keyway.
To Next Page
