Rail Position Sensor Removal and Installation | Service Procedures TRSM0940
Rail Position Sensor Removal

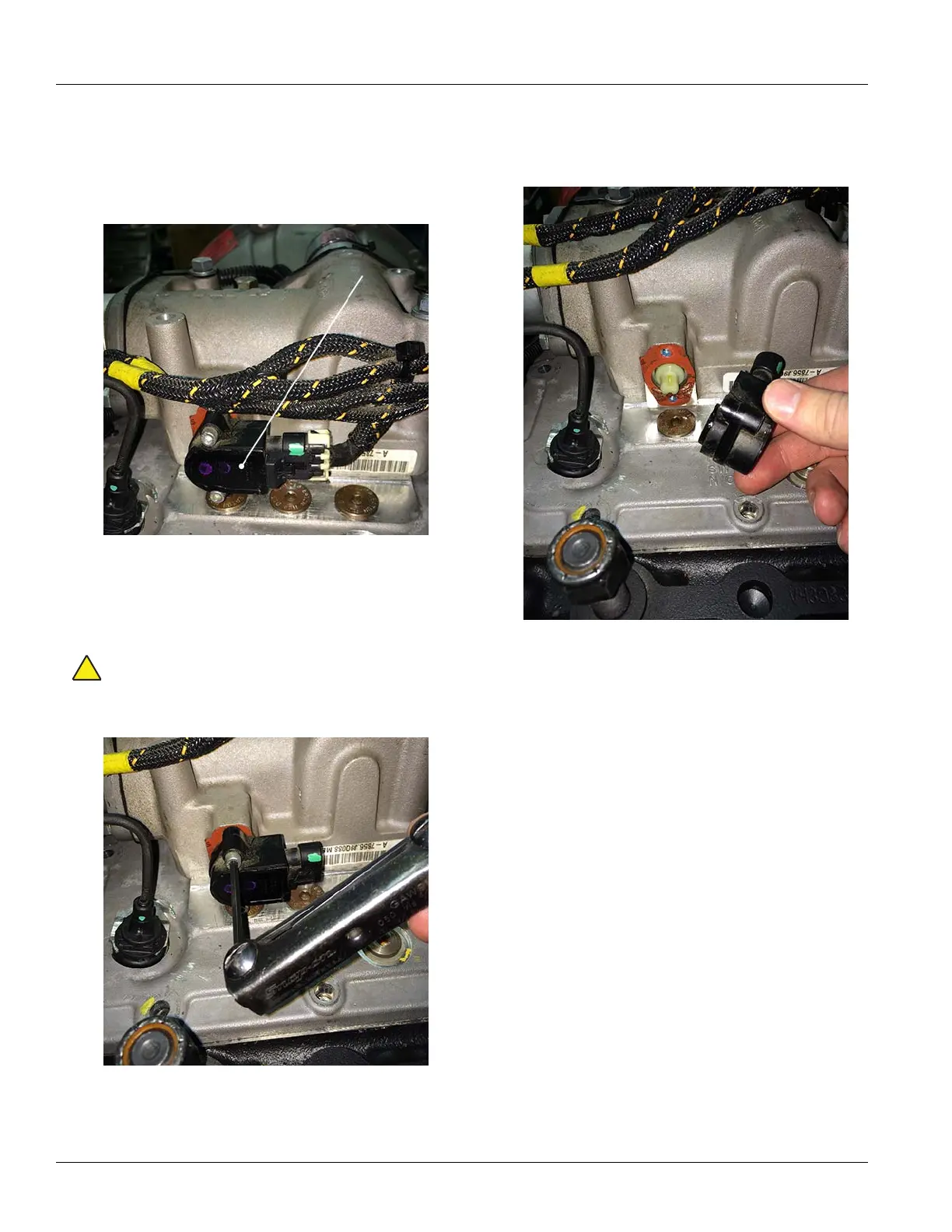

1. Disconnect the Transmission Harness from the Rail
Position Sensor.
2. Using a
5/32” hex key wrench, remove the 2 sensor
hex key mounting screws.
Caution: Carefully allow the sensor to rotate to a
relaxed position, or the sensor can snap when
the hex
key mounting screws are removed.
3. Remove the Rail
Position Sensor and gasket from the
housing.
