TRSM0940 Service Procedures | Output Shaft Speed Sensor Removal and Installation

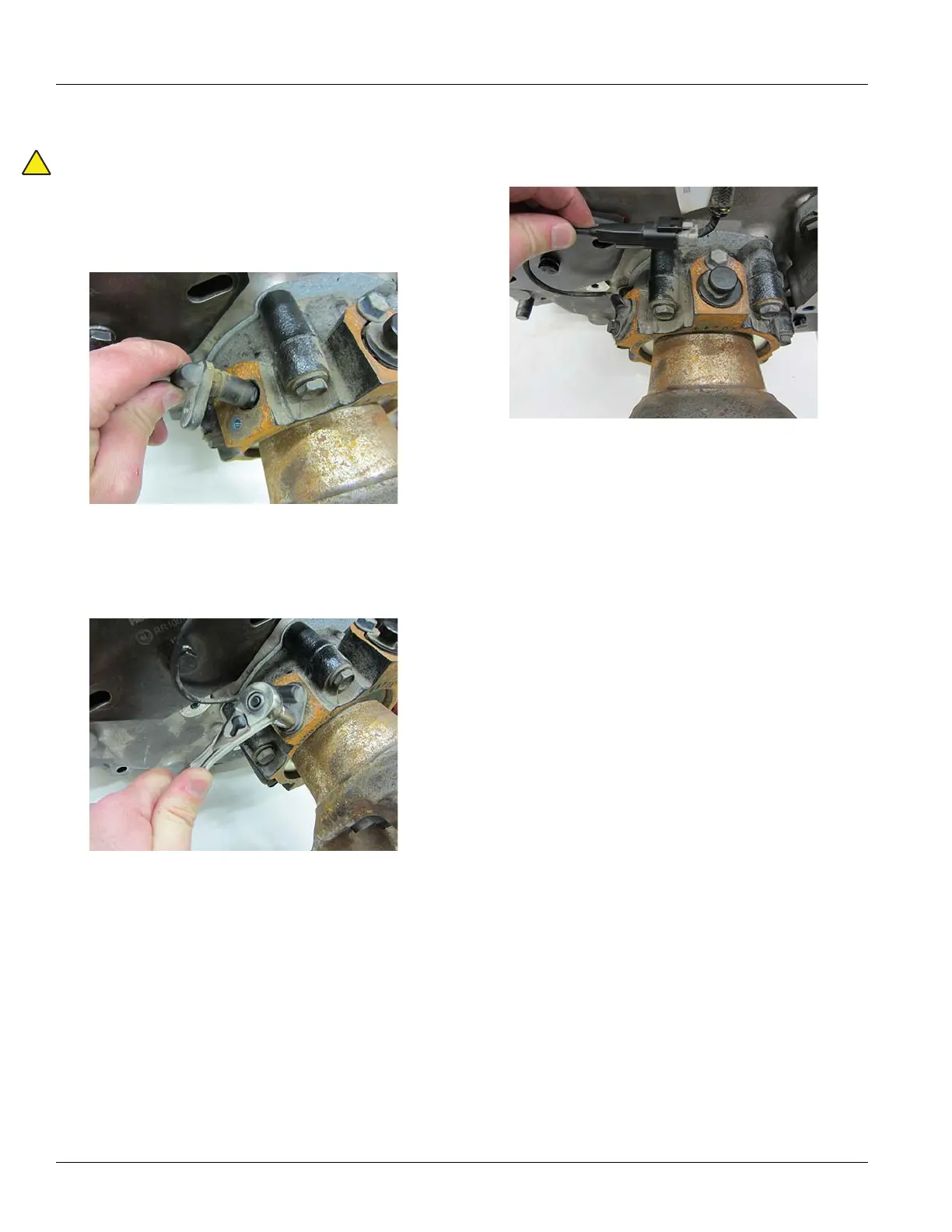

Output Shaft Speed Sensor Installation
Important: Lubricate sensor with Eaton lubricant 5564527.
1. Using
a smooth, twisting motion, fully insert the Out-
put Shaft Speed Sensor in the
Transmission Rear Bear-
ing Cover opening.
2. Inst
all the Retaining Bolt and tighten to 8–10 lb-ft
(11–13 N•m).
3. Apply included material to th
e Sensor Connector termi-
nals.
Note: Apply just enough material to
cover the end of
the terminal.
Note: Use only Eat
on lubricant 5564527. (Nye Lubri-
cants NYOGEL 760G - For MSDS safety or
other infor-
mation see www.nyelubricants.com)
4. Reconnec
t the Transmission Harness to the Output
Shaft Speed Sensor and install the cable tie.
!
