TRSM0940 Service Procedures | LAS/VAS Auxiliary Section Assembly and Installation
LAS/VAS Auxiliary Counter Shaft Installation
and Timing
Auxiliary Counter Shaft Installation and Timing

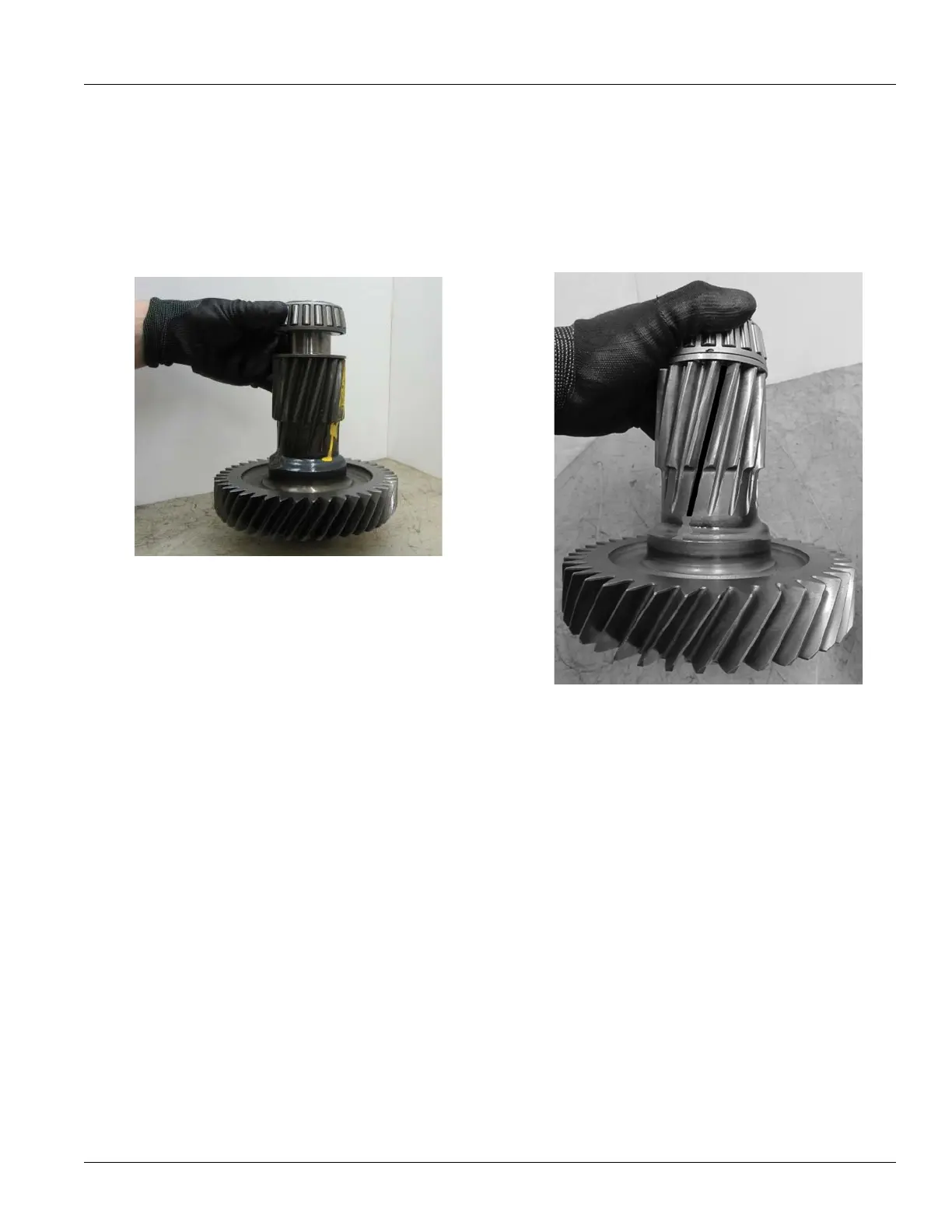

1. If previously removed, install the bearings onto
the rear
of each Counter Shaft.
2. On
each Auxiliary Counter Shaft assembly, use a highly
visible color of dye to mark the valley between the two
gear teeth of each auxiliary Counter Shaft assembly
low-range gear stamped with “O” for timing purposes.
Note: The “O” may be behind the washer
and bearing
on the rear of the Counter Shaft Gear.
