2018.12.12
© 2017 Eaton. All rights reserved
92
TRSM0940 Service Procedures | MHP/MXP/VHP/VXP Range Cylinder Disassembly and Assembly

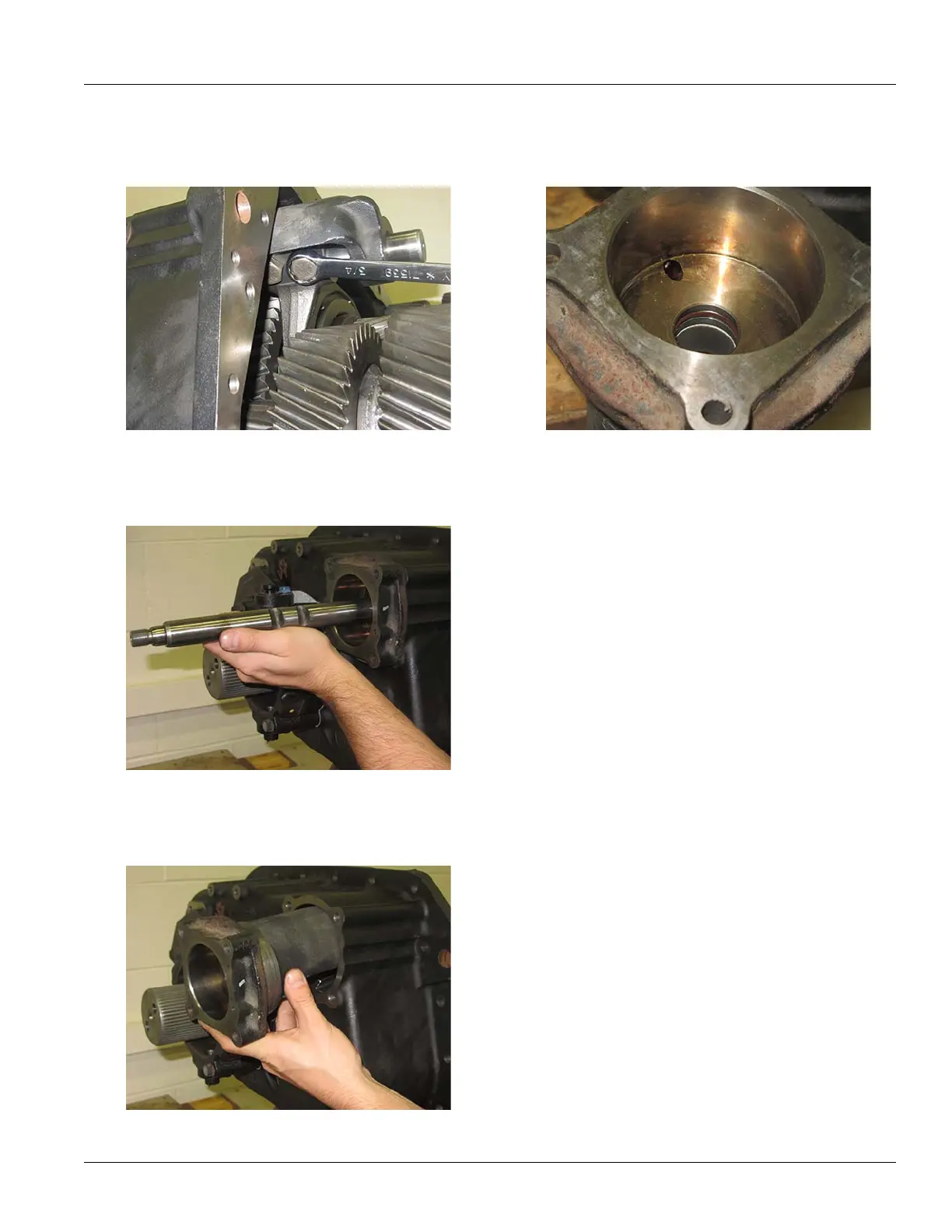

5. Remove the 2 cap screws that secure the Range Yoke
Bar to the Range Yoke.
6. Remove
the Range Yoke Bar.
7. Remove
the Range cylinder housing
8. In
spect the O-ring inside the Range Cylinder Housing,
remove and replace if damaged.
