MHP/MXP/VHP/VXP Range Cylinder Disassembly and Assembly | Service Procedures TRSM0940

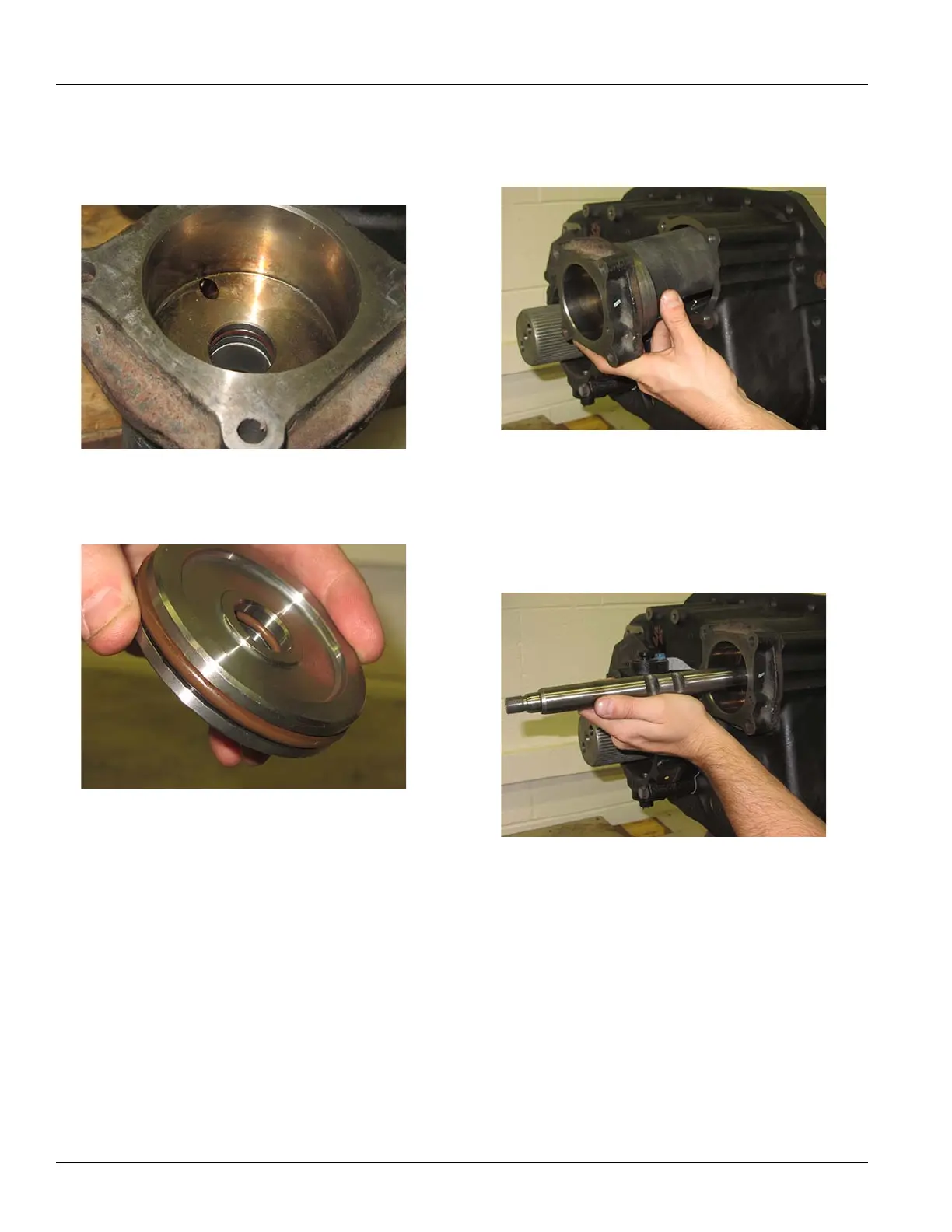

Range Cylinder Assembly
1. Install the small O-Ring in the cylinder housing bore
2. Install the piston O-rings
on the piston I.D. and O.D.
3. Install
a new gasket on the Range Cylinder Housing
Mounting Surface
4. Install
the Cylinder housing into the Auxiliary Case
Housing.
5. In
stall Range Yoke Bar from the rear of the Auxiliary
case.
Note: Ensure that the
Yoke Bar passes through the eye
of the Yoke fork.
