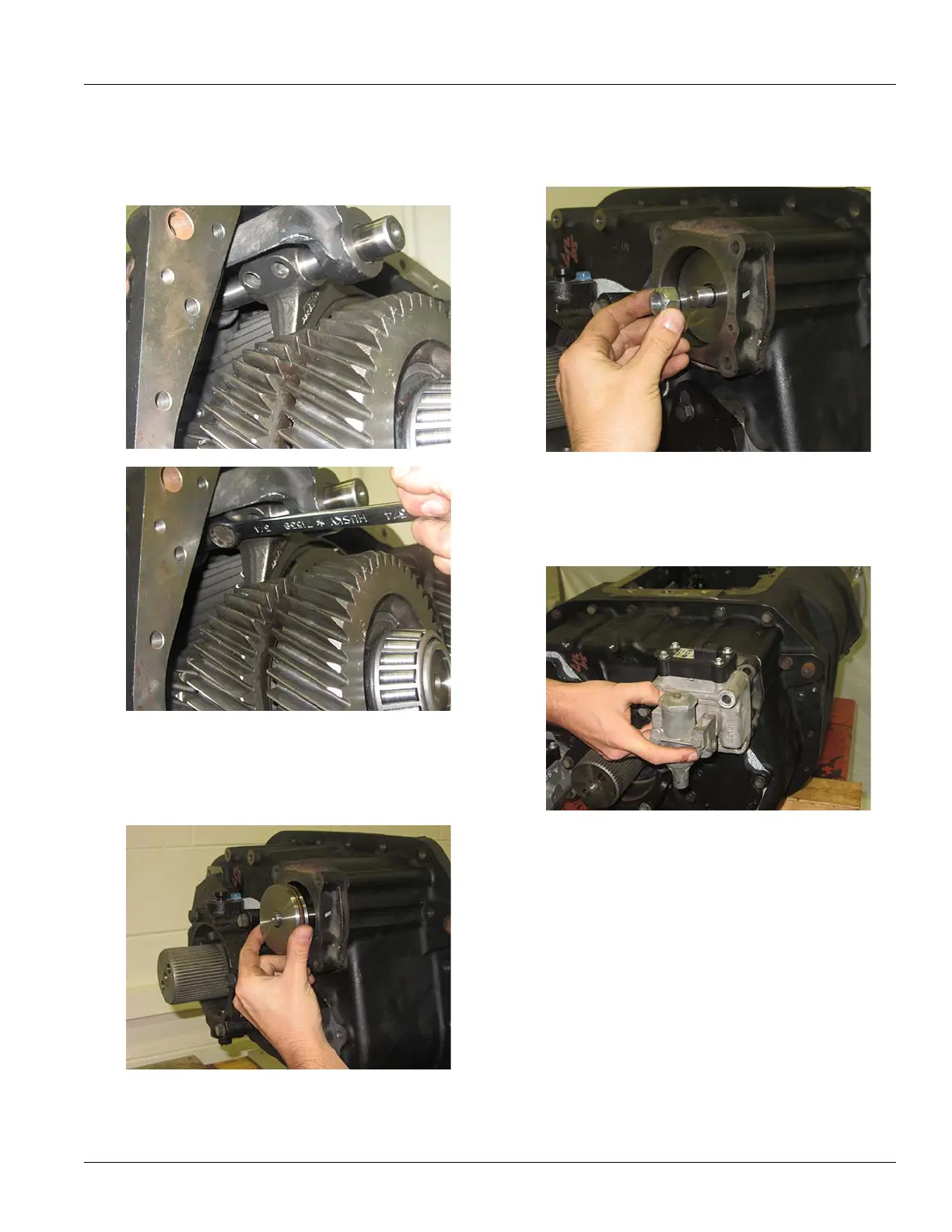

6. Align the 2 groves on the Yoke Bar and install the 2
retaining bolts through the bores on the Range Yoke
Fork.
7. Insert the piston,
pushing it as far back as far as it will
go.
8. Secure th
e piston with the retaining nut, torque to
70-85 lb-ft (94.91-115.24 N•m).
9. Install
a new gasket on the Cylinder Housing Cover
mounting surface. Install the Range cylinder cover
