MHP/MXP/VHP/VXP Auxiliary Countershaft Installation | Service Procedures TRSM0940

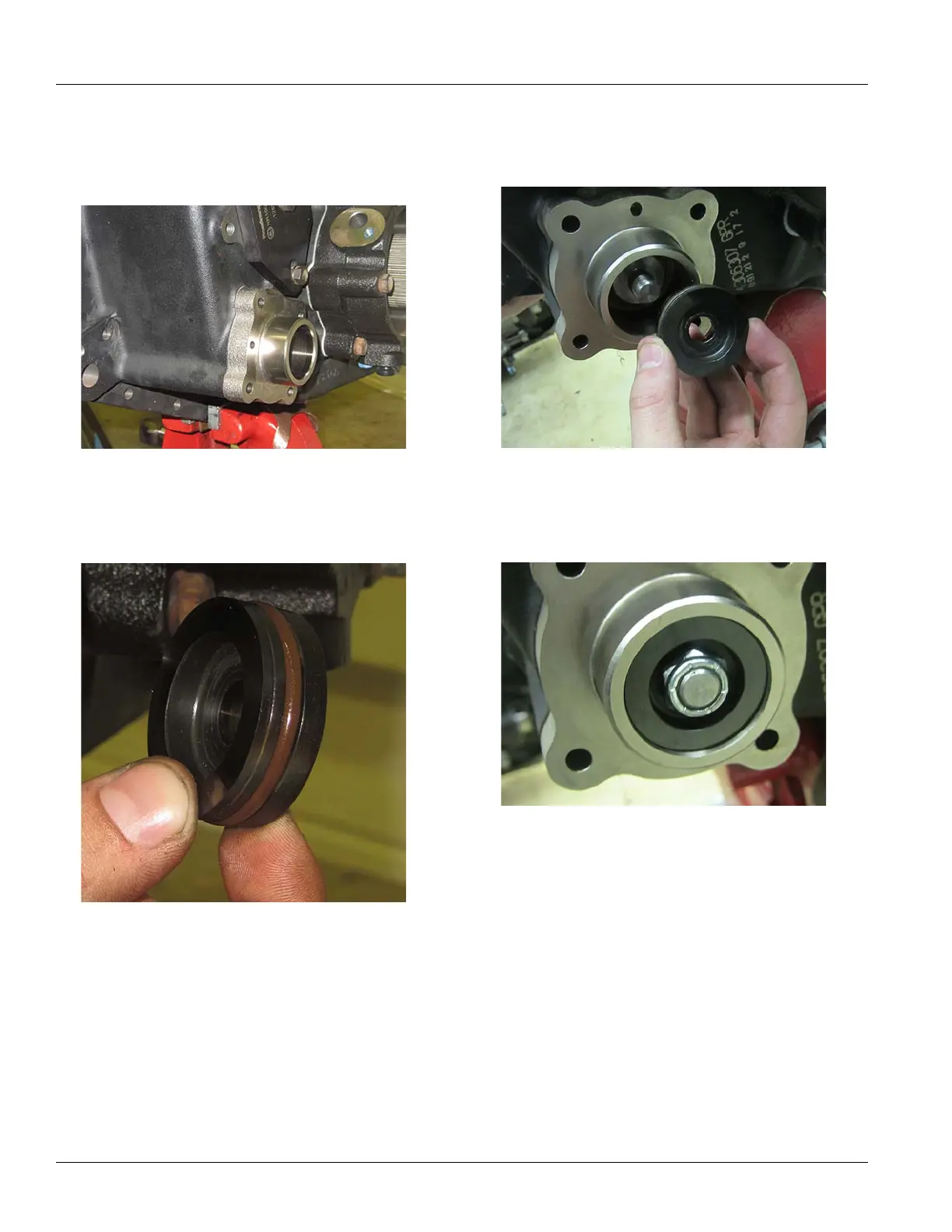

3. Position a new gasket between the Splitter Cylinder
and the Auxiliary Case Housing bore. Install the Splitter
Cylinder.
4. Inst
all new O-rings on the ID and OD of the piston.
Lubricate with silicone.
5. Inst
all new O-ring on the end of the yoke bar inside of
the cylinder housing.
6. In
stall the piston into the Splitter Cylinder with the
recessed side facing the rear of the transmission.
7. Secure pisto
n with the 3/4 lock nut. Torque to 30-36
lb-ft (41-49N•m).
