2018.12.12
© 2017 Eaton. All rights reserved
178
TRSM0940 Service Procedures | Main Case Main Shaft without Low Force Gearing Disassembly

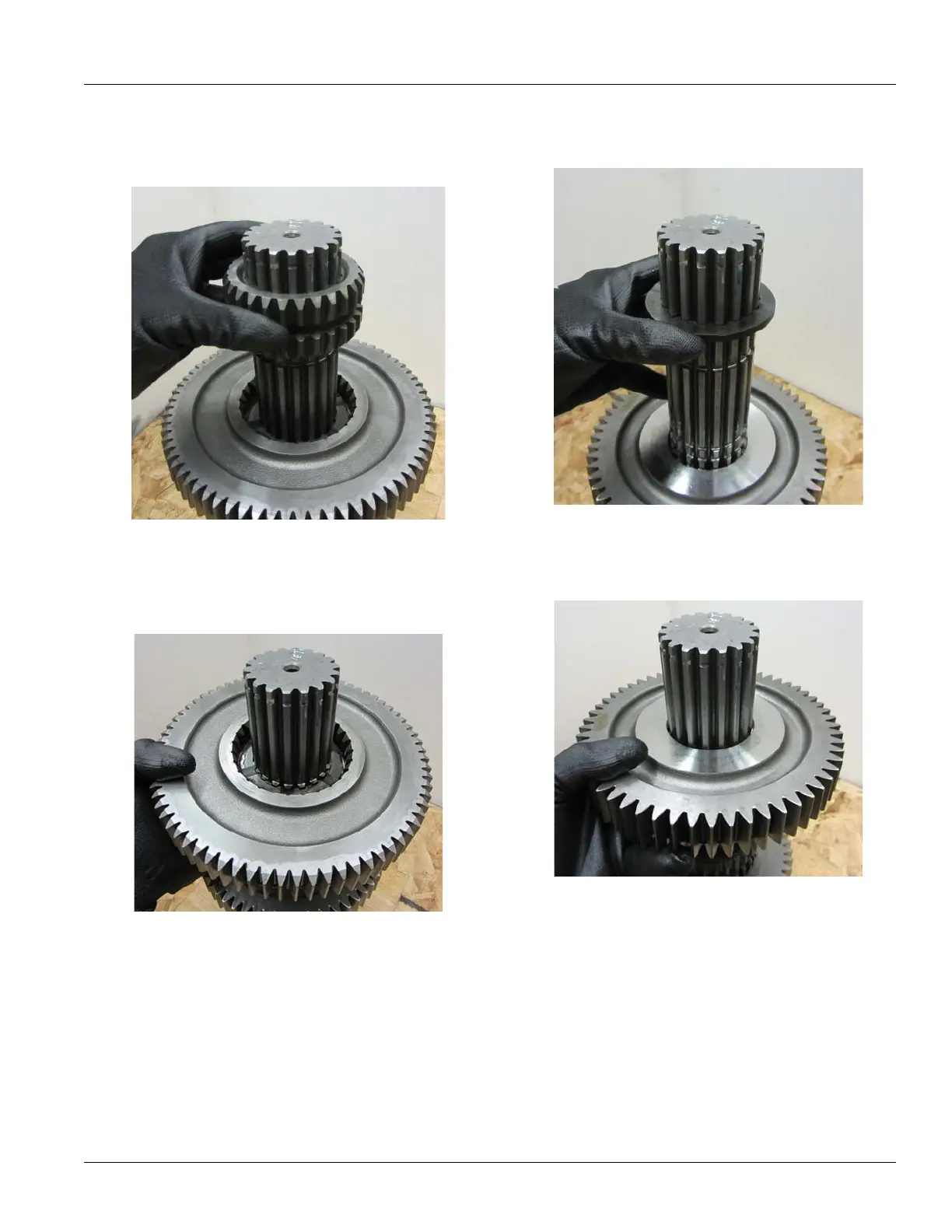

5. Remove the 1st–Reverse Gear Sliding Clutch from the
Main Shaft.
6. Remove the 1st stepped washe
r and 1st Gear from the
Main Shaft.
7. Remove the 2nd
no-burn washer from the Main Shaft.
8. Remove
2nd Gear from the Main Shaft.
