Main Case Main Shaft without Low Force Gearing Disassembly | Service Procedures TRSM0940

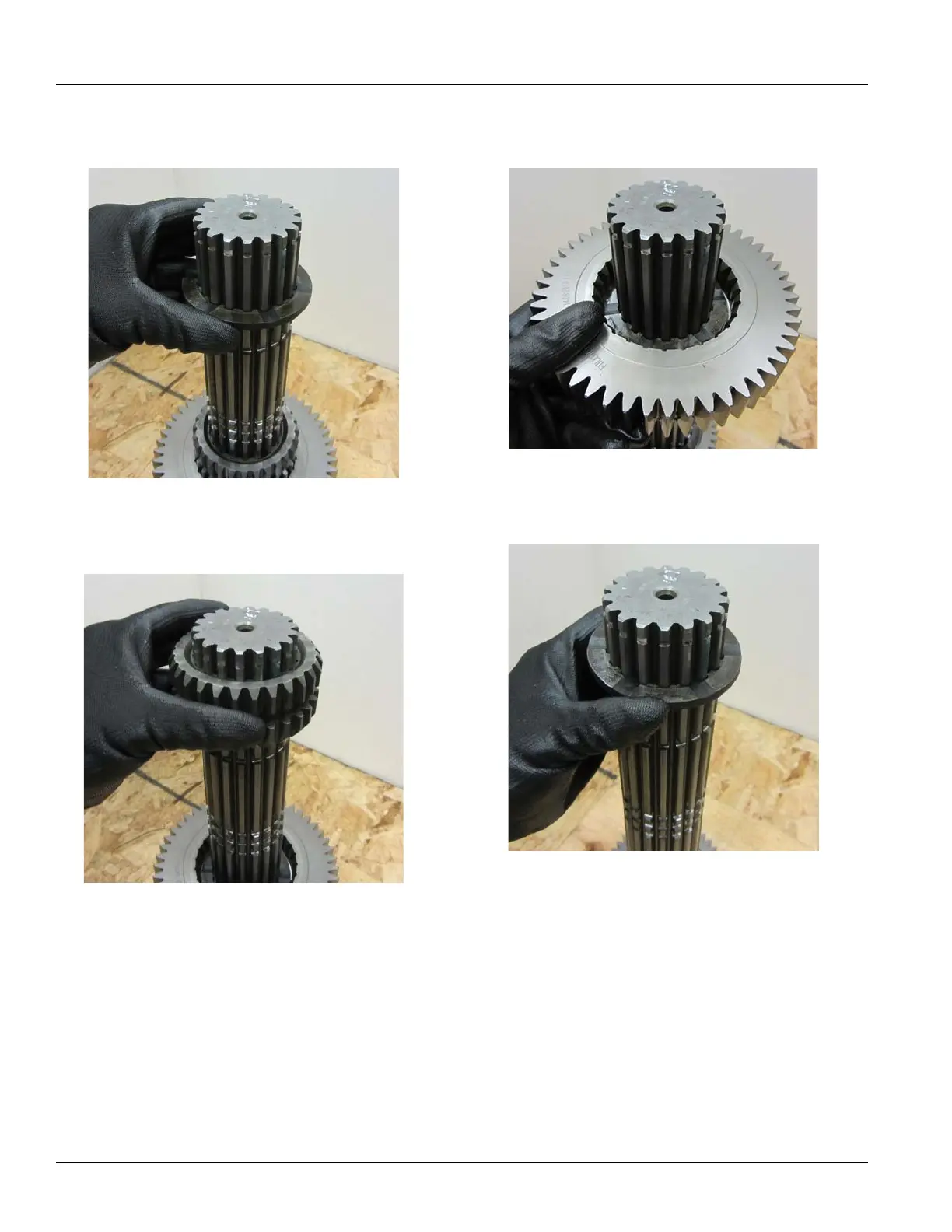

9. Remove the 3rd stepped washer from the Main Shaft.
10. Remove th
e 2nd–3rd Gear Sliding Clutch.
11. Remove the 4th
stepped washer and 3rd Gear.
12. Remove the 5th
no-burn washer from the Main Shaft.
