121
© 2017 Eaton. All rights reserved
2019.07.11
MHP/MXP/VHP/VXP Auxiliary Countershaft Installation | Service Procedures TRSM0940

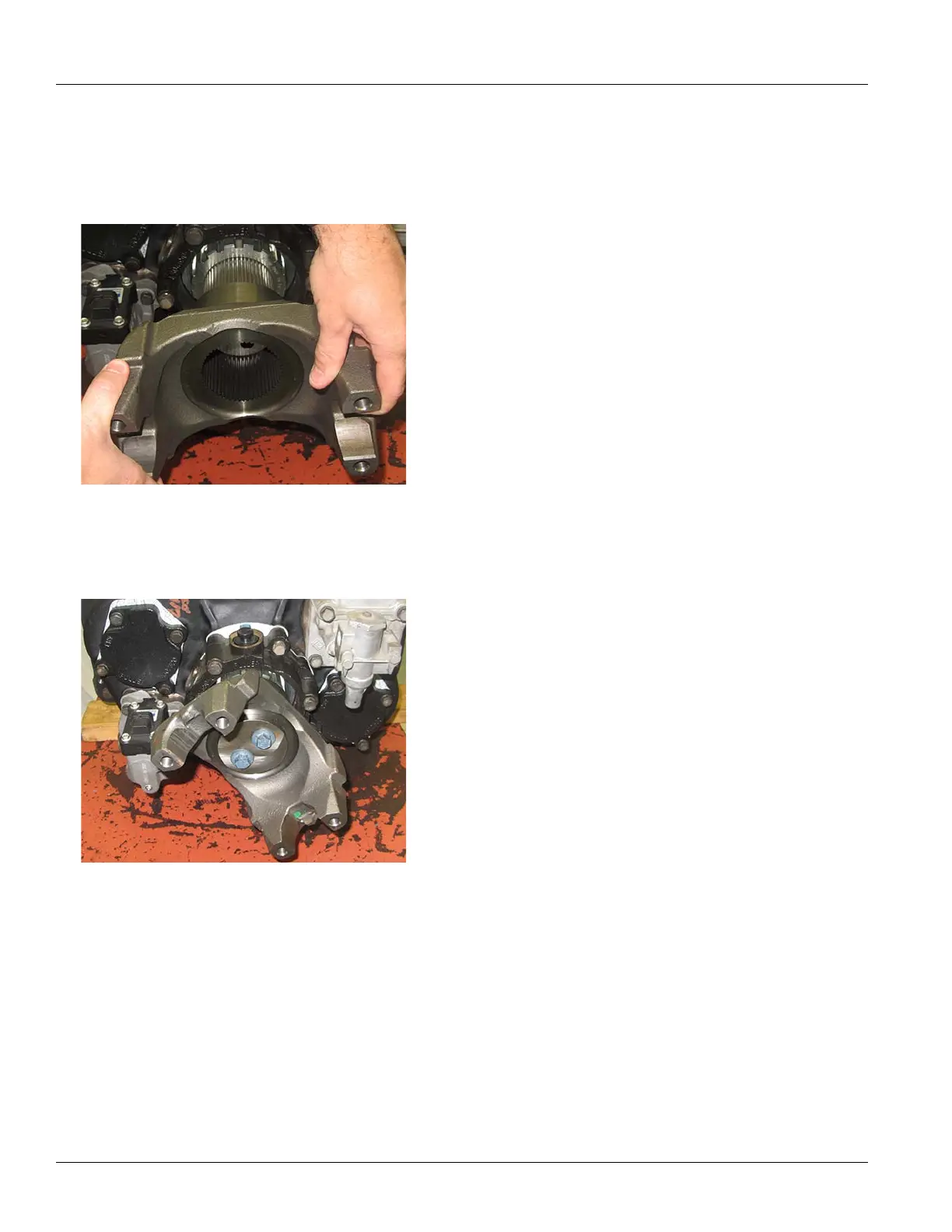

Output Yoke Installation
1. Install the Output Yoke. Ensure yoke is properly seated
against Output Shaft.
2. Secure the Output Yoke
with the 2 retaining bolts.
Torque to 84–92 lb-ft (113–124 N•m).
